Mk1 OHLE OO Gauge (Set E16)

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type A Structure 2-Track structure,Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-1 - product code 4WH0901601 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type A Structure 2-Track structure, incl. Magnetic Bases, typical of a type fitted to the West Coast Main Line route. This set E16-1 includes parts to construct One (1) detailed Type A Structure with Slope Top Masts that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type A Structure available to Purchase Separately are as follows:- • SET E16-6 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901606 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-1) dimensions:- • Overall height above baseboard (including bases) - 111mm • Overall length of structure (across the tracks) - 155mm • Nominal Span distance between inner edge of Bases - 130mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type A Structure 4-Track structure,Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-2 - product code 4WH0901602 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type A Structure 4-Track structure, incl. Magnetic Bases, typical of a type fitted to the West Coast Main Line route. This set E16-2 includes parts to construct One (1) detailed Type A Structure with Slope Top Masts that has a span to cater for up to 4 (four) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type A Structure available to Purchase Separately are as follows:- • SET E16-6 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901606 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-2) dimensions:- • Overall height above baseboard (including bases) - 111mm • Overall length of structure (across the tracks) - 260mm • Nominal Span distance between inner edge of Bases - 230mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Mk1 OHLE 2 x Type A Registration Arms and 2 x Catenary Wire Supports (magnetic type) for fitting to Mk1 Type A and Type B structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-6 - product code 4WH0901606 Detailed Overhead Line Equipment Mk1 OHLE 2 x Type A Registration Arms and 2 x Catenary Wire Supports (magnetic type) for fitting to Mk1 Type A and Type B structure kits. This set E16-6 includes parts designed specifically to fit to our Mk1 Type A and Type B OHLE kits E16-1, E16-2, E16-11 and E16-12 (not included).Note, this set will also fit to our Mk1 Type E OHLE Viaduct kits E16-51 and E16-52 (not included). The Registration Arms and Catenary Wire Supports may be fitted either way round to either side of the OHLE structure span. The kit consists of:- - Two (2) Single Side Mount Type Registration Arms (magnetic type) - Two (2) Catenary Wire Side Mount Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Mk1 OHLE 6 x Type A Return Conductor Wire Supports for fitting to Mk1 Type A, B, C and E structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-7 - product code 4WH0901607 Detailed Overhead Line Equipment Mk1 OHLE 6 x Type A Return Conductor Wire Supports for fitting to Mk1 Type A, B, C and E structure kits. This set E16-7 includes parts designed specifically to fit to our Mk1 Type A, Type B, Type C and Type E OHLE kits E16-1, E16-2, E16-11 and E16-12, E16-23, E16-51 and E16-52 (not included).The Return Conductor Wire Supports may be fitted either way round to either side of the OHLE structure span. The kit consists of:- - Two (2) Single Side Mount Return Conductor Supports - Two (2) Double Side Mount Return Conductor Supports - Two (2) Single Structure End Mount Return Conductor Supports  All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

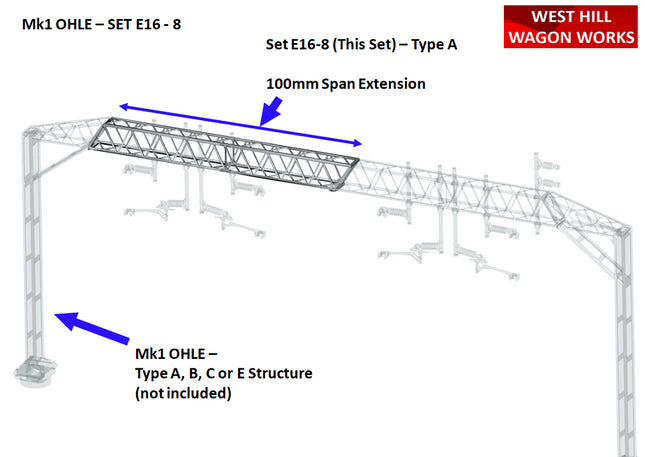

Detailed Overhead Line Equipment Mk1 OHLE Type A 100mm Span Extension for fitting to Mk1 Type A, B, C and E structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-8 - product code 4WH0901608 Detailed Overhead Line Equipment Mk1 OHLE 1 x Type A 100mm Span Extension for fitting to Mk1 Type A, B, C and E structure kits. This set E16-8 includes parts designed specifically to fit to our Mk1 Type A, Type B, Type C and Type E OHLE kits E16-1, E16-2, E16-11 and E16-12, E16-23, E16-51 and E16-52 (not included) This extension span is designed to be fitted during assembly of the structure kit. The kit consists of:- - One (1) 100mm Span Extension (Type A) All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

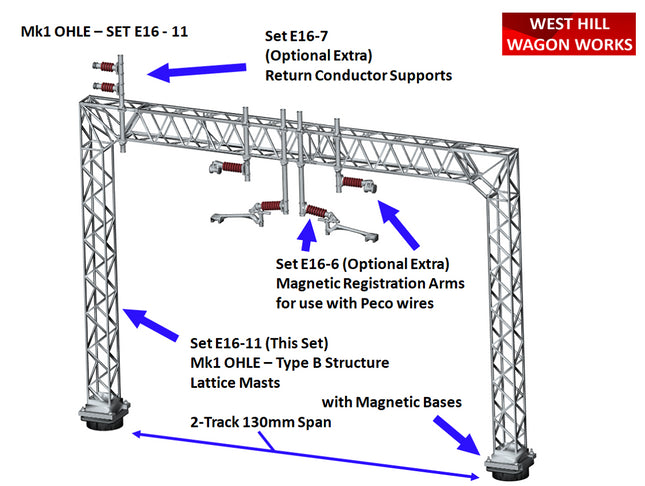

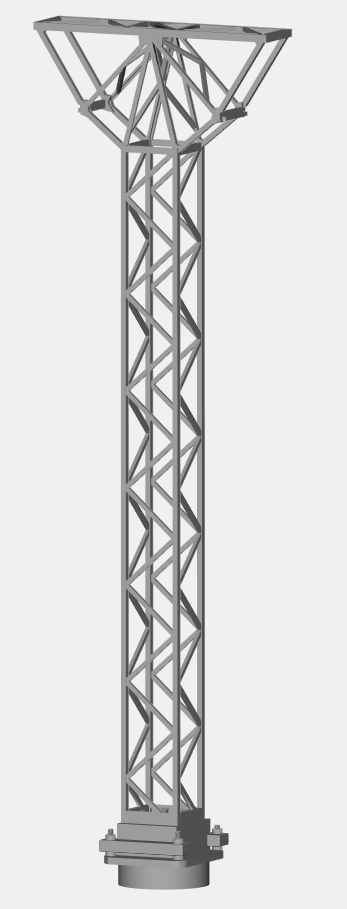

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Lattice Mast Structure 2-Track structure,Typical of a type fitted to the West Coast Main Line route, including Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-11 - product code 4WH0901611 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Lattice Mast Structure 2-Track structure, including Magnetic Bases, typical of a type fitted to the West Coast Main Line route. This set E16-11 includes parts to construct One (1) detailed Type B Structure with Lattice Masts that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type B Structure available to Purchase Separately are as follows:- • SET E16-6 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901606 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-11) dimensions:- • Overall height above baseboard (including bases) - 111mm • Overall length of structure (across the tracks) - 155mm • Nominal Span distance between inner edge of Bases - 130mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Lattice Mast Structure 4-Track structure,Typical of a type fitted to the West Coast Main Line route, including Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-12 - product code 4WH0901612 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Lattice Mast Structure 4-Track structure, including Magnetic Bases, typical of a type fitted to the West Coast Main Line route. This set E16-12 includes parts to construct One (1) detailed Type B Structure with Lattice Masts that has a span to cater for up to 4 (four) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type B Structure available to Purchase Separately are as follows:- • SET E16-6 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901606 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-12) dimensions:- • Overall height above baseboard (including bases) - 111mm • Overall length of structure (across the tracks) - 256mm • Nominal Span distance between inner edge of Bases - 230mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Cantilever Lattice Mast Structure for 2-Tracks,Typical of a type fitted to the West Coast Main Line route, including Magnetic Base.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-15 - product code 4WH0901615 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Cantilever Lattice Mast Structure for up to 2-Tracks, including Magnetic Base, typical of a type fitted to the West Coast Main Line route. This set E16-15 includes parts to construct One (1) detailed Type B Cantilever Structure with a Lattice Mast that has a span to cater for up to 2 (two) tracks.  One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type B Structure available to Purchase Separately are as follows:- • SET E16-6 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901606 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-15) dimensions:- • Overall height above baseboard (including bases) - 111mm • Overall length of structure (across the tracks) - 115mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to E16-6 Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

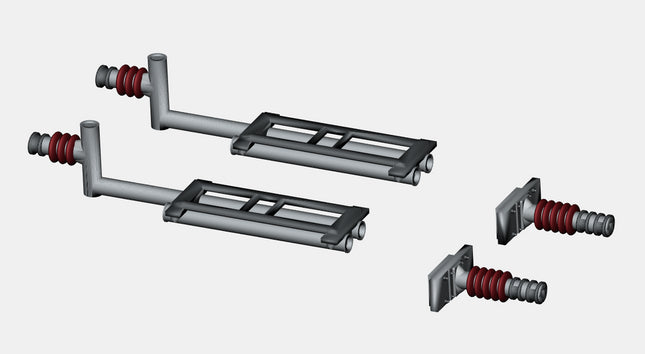

Detailed Overhead Line Equipment Mk1 OHLE 4 x Return Conductor Wire Supports for fitting to Mk1 Type B and C Cantilever structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-17 - product code 4WH0901617 Detailed Overhead Line Equipment Mk1 OHLE 4 x Return Conductor Wire Supports for fitting to Mk1 Type B and C Cantilever structure kits. This set E16-17 includes parts designed specifically to fit to our Mk1 Type B/C OHLE kits E16-15 and E16-28, or Cantilever Spans E16-18 and E16/19 (not included).The Return Conductor Wire Supports may be fitted either way round to either side of the OHLE structure span. The kit consists of:- - Two (2) Single Cantilever End Mount Return Conductor Supports - Two (2) Single Structure Mast Mount Return Conductor Supports  All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type C Platform Structure with Tall Masts, 2-Track structure,Typical of a type fitted to the West Coast Main Line route, including Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-23 - product code 4WH0901623 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type C Platform Structure with Tall Masts, 2-Track structure, incl. Magnetic Bases. This set E16-23 includes parts to construct One (1) detailed Type C Platform Structure with Tall Masts that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type C Structure available to Purchase Separately are as follows:- • SET E16-26 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901626 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-23) assembled dimensions:- • Overall height above your platform (including bases) - 101mm • Overall length of structure (across the tracks) - 221mm • Nominal Span distance between inner edge of Bases - 190mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included], this is assuming a nominal 18mm Platform height. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type C Platform Double Sided Tall Mast, for use with E16-23 platform structure kits,Typical of a type fitted to the West Coast Main Line route, including Magnetic Base.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-24 - product code 4WH0901624 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type C Platform Double Sided Tall Mast, including a Magnetic Base. This set E16-24 includes parts to construct One (1) detailed Type C Platform Double Sided Tall Mast that is designed to fit between two E16-23 Platform Structure kits (not included), to allow spanning of multiple platforms.  One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. OHLE Structure kit (SET E16-24) assembled dimensions:- • Overall height above your platform (including bases) - 101mm • Overall length of mast (across the tracks) - 30mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included], this is assuming a nominal 18mm Platform height. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Mk1 OHLE 2 x Combined Registration Arms / Catenary Wire Supports (magnetic type) for fitting to Mk1 Type C structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-26 - product code 4WH0901626 Detailed Overhead Line Equipment Mk1 OHLE 2 x Combined Type C Registration Arms / Catenary Wire Supports (magnetic type) for fitting to our Mk1 Type C structure kits. This set E16-26 includes parts designed specifically to fit to our Mk1 Type C OHLE kits E16-21, E16-22 and E16-23 (not included). The Registration Arms / Catenary Wire Supports may be fitted either way round underneath the OHLE structure span. The kit consists of:- - Two (2) Combined Registration Arms & Catenary Wire Supports, under-span mount (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type D Low Mast Structure 2-Track structure,Typical of a type fitted to the West Coast Main Line route, including Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-31 - product code 4WH0901631 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type D Low Mast Structure 2-Track structure, including Magnetic Bases, typical of a type fitted to the West Coast Main Line route. This set E16-31 includes parts to construct One (1) detailed Type D Structure with Low Height Masts that has a span to cater for up to 2 (two) tracks.  The slightly lower height structure typical of the southern section of the West Coast Main Line allows the fitting of the catenary wire supports above the structure. Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type D Structure available to Purchase Separately are as follows:- • SET E16-36 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901636 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-31) dimensions:- • Overall height above baseboard (including bases) - 100mm • Overall length of structure (across the tracks) - 155mm • Nominal Span distance between inner edge of Bases - 130mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

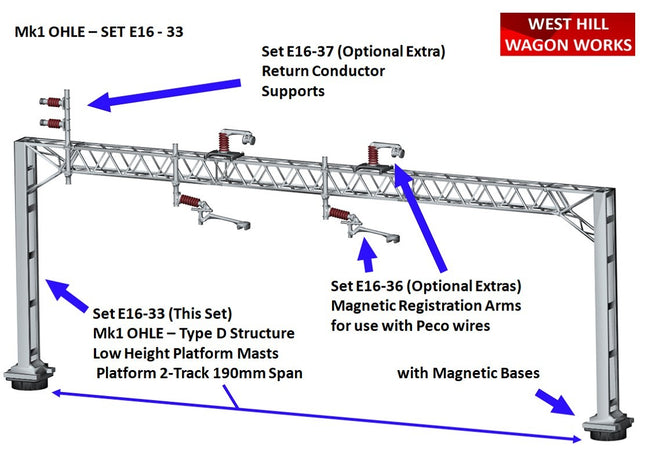

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type D Platform Structure with Low Masts, 2-Track structure,Typical of a type fitted to the West Coast Main Line route, including Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-33 - product code 4WH0901633 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type D Platform Structure with Low Masts, 2-Track structure, incl. Magnetic Bases. This set E16-33 includes parts to construct One (1) detailed Type D Platform Structure with Low Masts that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. The slightly lower height structure typical of the southern section of the West Coast Main Line allows the fitting of the catenary wire supports above the structure. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type D Structure available to Purchase Separately are as follows:- • SET E16-36 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901636 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-33) assembled dimensions:- • Overall height above your platform (including bases) - 82mm • Overall length of structure (across the tracks) - 221mm • Nominal Span distance between inner edge of Bases - 190mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included], this is assuming a nominal 18mm Platform height. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

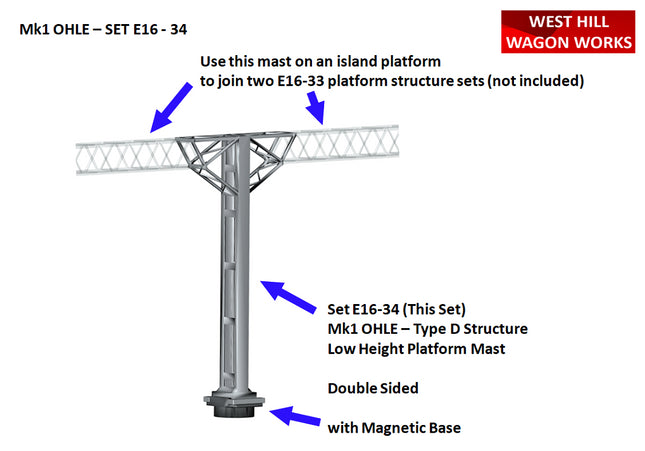

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type D Platform Double Sided Low Mast, for use with E16-33 platform structure kits,Typical of a type fitted to the West Coast Main Line route, including Magnetic Base.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-34 - product code 4WH0901634 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type D Platform Double Sided Low Mast, including a Magnetic Base, typical of a type fitted to the West Coast Main Line route. This set E16-34 includes parts to construct One (1) detailed Type D Platform Double Sided Low Mast that is designed to fit between two E16-33 Platform Structure kits (not included), to allow spanning of multiple platforms.  One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. OHLE Structure kit (SET E16-34) assembled dimensions:- • Overall height above your platform (including base) - 82mm • Overall length of mast (across the tracks) - 40mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included], this is assuming a nominal 18mm Platform height. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Mk1 OHLE 2 x Type D Registration Arms and 2 x Catenary Wire Supports (magnetic type) for fitting to Mk1 Type D structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-36 - product code 4WH0901636 Detailed Overhead Line Equipment Mk1 OHLE 2 x Type D Registration Arms and 2 x Catenary Wire Supports (magnetic type) for fitting to Mk1 Type D structure kits. This set E16-36 includes parts designed specifically to fit to our Mk1 Type D OHLE kits E16-31, E16-32 and E16-33 (not included). The Registration Arms and Catenary Wire Supports may be fitted either way round to either side/top of the OHLE structure span. The kit consists of:- - Two (2) Single Side Mount Type Registration Arms (magnetic type) - Two (2) Catenary Wire Top Mount Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Mk1 OHLE 6 x Type D Return Conductor Wire Supports for fitting to Mk1 Type D structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-37 - product code 4WH0901637 Detailed Overhead Line Equipment Mk1 OHLE 6 x Type D Return Conductor Wire Supports for fitting to Mk1 Type D structure kits. This set E16-37 includes parts designed specifically to fit to our Mk1 Type D OHLE kits E16-31, E16-32 and E16-33 (not included).The Return Conductor Wire Supports may be fitted either way round to either side of the OHLE structure span. The kit consists of:- - Two (2) Single Side Mount Return Conductor Supports - Two (2) Double Side Mount Return Conductor Supports - Two (2) Single Structure End Mount Return Conductor Supports  All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type E Viaduct Structure kit, (110mm)Typical of a type fitted to the West Coast Main Line routeIncl. Special Viaduct Side Mount Magnetic BasesPLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-51 - product code 4WH0901651 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type E Viaduct Structure for your 110mm wide viaduct, incl. Special Viaduct Side Mount Magnetic Bases. This set E16-51 includes parts to construct One (1) detailed Type E Viaduct Structure with Two Masts that has a span to cater for 2-track Viaduct Structures of 110mm width.  Two Viaduct Mast Side Mount Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type E Structure available to Purchase Separately are as follows:- • SET E16-56 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901656 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-51) dimensions:- • Overall height of structure (including bases) - 124mm • Overall length of structure (across the tracks) - 122mm • Nominal Span distance between inner edge of Bases - 110mm • Overall width of structure - 8.5mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type E Viaduct Structure kit (145mm),Typical of a type fitted to the West Coast Main Line routeIncl. Special Viaduct Side Mount Magnetic BasesPLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-52 - product code 4WH0901652 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type E Viaduct Structure for your 145mm wide viaduct, incl. Special Viaduct Side Mount Magnetic Bases. This set E16-52 includes parts to construct One (1) detailed Type E Viaduct Structure with Two Masts that has a span to cater for 2-track Viaduct Structures of 145mm width.  Two Viaduct Mast Side Mount Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type E Structure available to Purchase Separately are as follows:- • SET E16-56 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901656 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. OHLE Structure kit (SET E16-54) dimensions:- • Overall height of structure (including bases) - 124mm • Overall length of structure (across the tracks) - 158mm • Nominal Span distance between inner edge of Bases - 145mm • Overall width of structure - 8.5mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Mk1 OHLE 1 x Type E Double Registration Arm and 2 x Catenary Wire Supports (magnetic type) for fitting to Mk1 Type E structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-56 - product code 4WH0901656 Detailed Overhead Line Equipment Mk1 OHLE 1 x Type E Double Registration Arm and 2 x Catenary Wire Supports (magnetic type) for fitting to Mk1 Type E structure kits. This set E16-56 includes parts designed specifically to fit to our Mk1 Type E OHLE kits E16-51 and E16-52 (not included). The Registration Arms and Catenary Wire Supports may be fitted either way round to either side of the OHLE structure span. The kit consists of:- - One (1) Doublle Side Mount Type Registration Arm (magnetic type) - Two (2) Catenary Wire Side Mount Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type F Anchor Portal 4-Track structure,Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-61 - product code 4WH0901661 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type F Anchor Portal 4-Track structure, including Magnetic Bases, typical of a type fitted to the West Coast Main Line route. This set E16-61 includes parts to construct One (1) detailed Type F Anchor Portal 4-Track structure with Double Frame Masts that has a span to cater for up to 4 (four) tracks.  Four Mast Bases are included in the kit, with four magnets to fit into two of the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arms and Wire Anchors for the Type F Structure available to Purchase Separately are as follows:- • SET E16-66 - Registration Arms and Wire Anchors Set (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901666 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-61) dimensions:- • Overall height above baseboard (including bases) - 105mm • Overall length of structure (across the tracks) - 256mm • Nominal Span distance between inner edge of Bases - 230mm • Overall width of structure - 44mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Mk1 OHLE 4 x Type F Registration Arms and 8 x Wire Anchors (magnetic type) for fitting to Mk1 Type F Anchor Portal structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-66 - product code 4WH0901666 Detailed Overhead Line Equipment Mk1 OHLE 4 x Type F Registration Arms and 8 x Wire Anchors (magnetic type) for fitting to Mk1 Type F Anchor Portal structure kits. This set E16-66 includes parts designed specifically to fit to our Mk1 Type F OHLE Anchor Portal kits E16-61 and E16-62 (not included). The Registration Arms may be fitted either way round to either side of the OHLE structure span. The Wire Anchors may be fitted to either side of the upper or lower frame of the OHLE structure span. Please refer to the pictures and the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above. The kit consists of:- - Four (4) Single Side Mount Type Registration Arms (magnetic type) - Eight (8) Wire Anchors (magnetic type) - Twelve (12) Magnets for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Mk1 OHLE Type F 100mm Span Extension for fitting to Mk1 Type F Anchor Portal structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-67 - product code 4WH0901667 Detailed Overhead Line Equipment Mk1 OHLE 1 x Type F 100mm Span Extension for fitting to Mk1 Type F Anchor Portal structure kits. This set E16-67 includes parts designed specifically to fit to our Mk1 Type F OHLE kit E16-61 (not included) This extension span is designed to be fitted during assembly of the structure kit. The kit consists of:- - One (1) 100mm Span Extension (Type F) All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type G, I-Beam Mast Structure 2-Track structure,Typical of a type fitted to the West Coast Main Line route, including Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-71 - product code 4WH0901671 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type G, I-Beam Mast Structure 2-Track structure, including Magnetic Bases. This set E16-71 includes parts to construct One (1) detailed Type G Structure with I-Beam Masts that has an I-Beam span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type B Structure available to Purchase Separately are as follows:- • SET E16-76 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901676 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-71) dimensions:- • Overall height above baseboard (including bases) - 116mm • Overall length of structure (across the tracks) - 195mm • Nominal Span distance between inner edge of Bases - 170mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

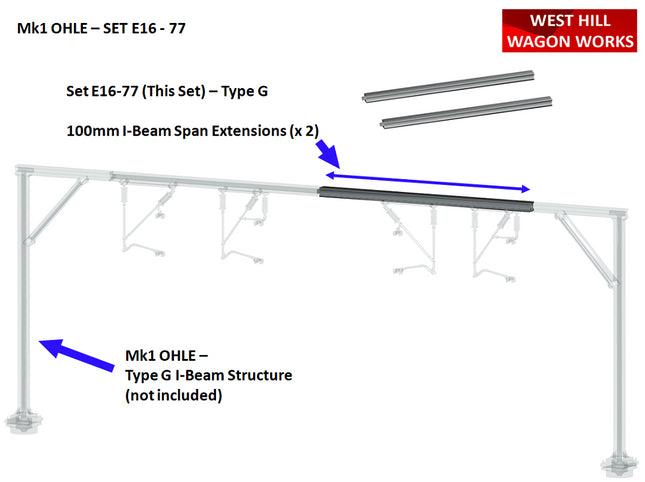

Detailed Overhead Line Equipment Mk1 OHLE Type G 2 x 100mm Span Extension for fitting to Mk1 Type G, I-Beam structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-77 - product code 4WH0901677 Detailed Overhead Line Equipment Mk1 OHLE 2 x Type G 100mm Span Extension for fitting to Mk1 Type G, I-Beam structure kits. This set E16-77 includes parts designed specifically to fit to our Mk1 Type G OHLE kit E16-71 (not included) This extension spans are designed to be fitted during assembly of the structure kit. The kit consists of:- - Two (2) 100mm I-Beam Span Extensions (Type G) All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

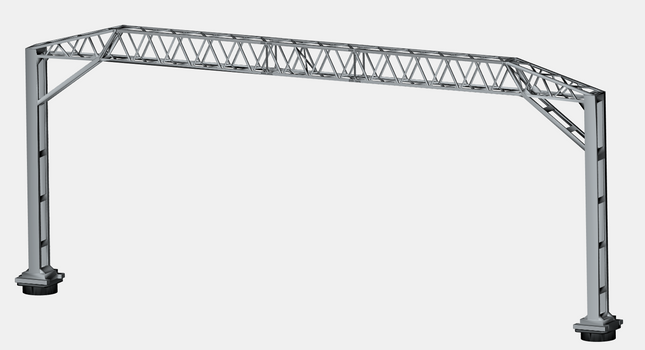

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type A Platform Structure 2-Track structure,Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-3 - product code 4WH0901603 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type A Platform Structure 2-Track structure, incl. Magnetic Bases, typical of a type fitted to the West Coast Main Line route. This set E16-3 includes parts to construct One (1) detailed Type A Platform Structure with Slope Top Masts that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type A Structure available to Purchase Separately are as follows:- • SET E16-6 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901606 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-3) dimensions:- • Overall height above your Platform (including bases) - 94mm • Overall length of structure (across the tracks) - 220mm • Nominal Span distance between inner edge of Bases - 190mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - approx. 78mm above baseboard assuming an 18mm Platform Height [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

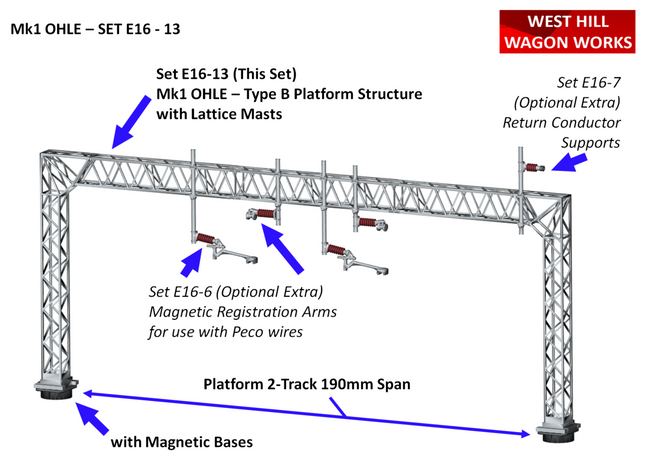

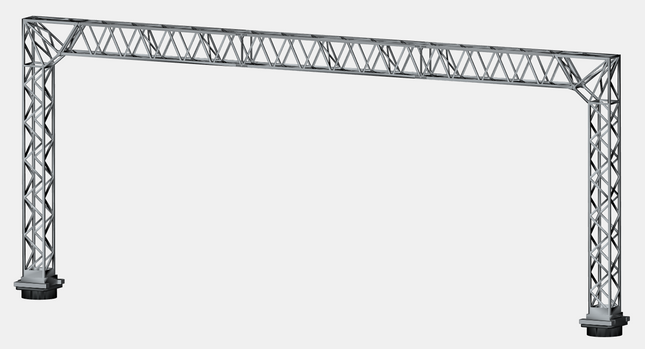

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Platform Lattice Structure 2-Track structure,Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-13 - product code 4WH0901613 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type A Platform Lattice Structure 2-Track structure, incl. Magnetic Bases, typical of a type fitted to the West Coast Main Line route. This set E16-13 includes parts to construct One (1) detailed Type A Platform Structure with Lattice Masts that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type B Structure available to Purchase Separately are as follows:- • SET E16-6 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901606 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-13) dimensions:- • Overall height above your Platform (including bases) - 94mm • Overall length of structure (across the tracks) - 220mm • Nominal Span distance between inner edge of Bases - 190mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - approx. 78mm above baseboard assuming an 18mm Platform Height [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

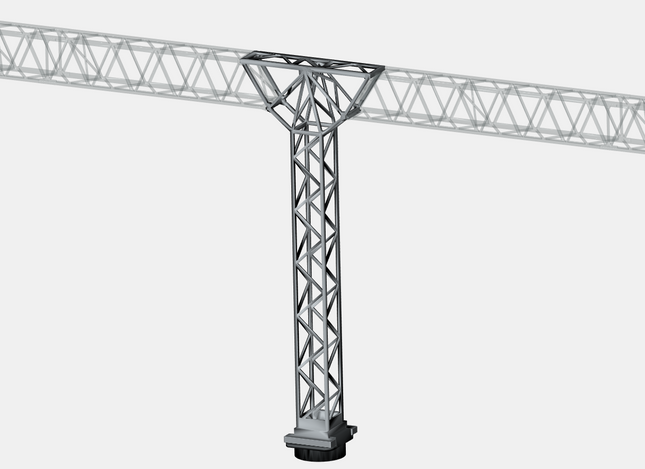

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Platform Double Sided Lattice Mast, for use with E16-3 or E16-13 platform structure kits,Typical of a type fitted to the West Coast Main Line route, including Magnetic Base.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-14 - product code 4WH0901614 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Platform Double Sided Lattice Mast, including a Magnetic Base, typical of a type fitted to the West Coast Main Line route. This set E16-14 includes parts to construct One (1) detailed Type B Platform Double Sided Lattice Mast that is designed to fit between two E16-3 or E16-13 Platform Structure kits (not included), to allow spanning of multiple platforms.  One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. OHLE Structure kit (SET E16-14) assembled dimensions:- • Overall height above your platform (including bases) - 94mm • Overall length of mast (across the tracks) - 34mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included], this is assuming a nominal 18mm Platform height. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

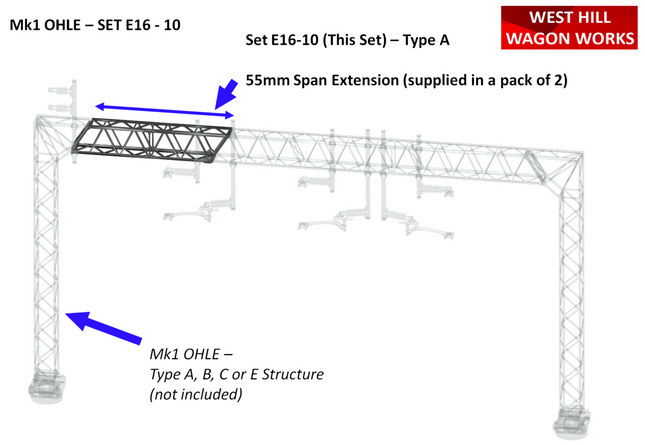

Detailed Overhead Line Equipment Mk1 OHLE Type A 55mm Span Extensions (pack of 2) for fitting to Mk1 Type A, B, C and E structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-10 - product code 4WH0901610 Detailed Overhead Line Equipment Mk1 OHLE 2 x Type A 55mm Span Extensions for fitting to Mk1 Type A, B, C and E structure kits. This set E16-10 includes parts designed specifically to fit to our Mk1 Type A, Type B, Type C and Type E OHLE kits E16-1, E16-2, E16-3, E16-11 and E16-12, E16-13, E16-21, E16-22, E16-23, E16-51 and E16-52 (not included) This extension span is designed to be fitted during assembly of the structure kit. The kit consists of:- - Two (2) 55mm Span Extensions (Type A) All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

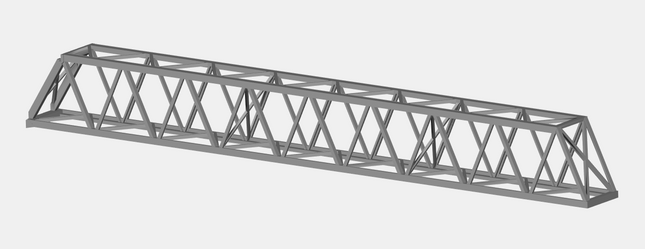

Detailed Overhead Line Equipment Mk1 OHLE 100mm Cantilever Lattice Span for fitting to Mk1 Type A, B and C structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-18 - product code 4WH0901618 Detailed Overhead Line Equipment Mk1 OHLE 1 x 100mm Cantilever Lattice Span for fitting to Mk1 Type A, B and C structure kits. This set E16-18 includes parts designed specifically to fit to our Mk1 Type A, Type B and Type C OHLE kits (not included).  These spans can be used to make double sided cantilever structures using the E16-14, E16-20, E16-24 and E16-29 mast kits (available separately). The kit consists of:- - One (1) 100mm Lattice Style Cantilever Span All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

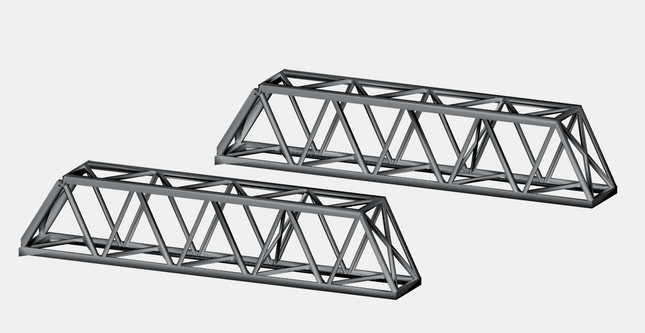

Detailed Overhead Line Equipment Mk1 OHLE 55mm Cantilever Lattice Spans for fitting to Mk1 Type A, B and C structure kits. (Pack of 2) PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-19 - product code 4WH0901619 Detailed Overhead Line Equipment Mk1 OHLE 2 x 55mm Cantilever Lattice Spans for fitting to Mk1 Type A, B and C structure kits. This set E16-19 includes parts designed specifically to fit to our Mk1 Type A, Type B and Type C OHLE kits (not included).  These spans can be used to make double sided cantilever structures using the E16-14, E16-20, E16-24 and E16-29 mast kits (available separately). The kit consists of:- - Two (2) 55mm Lattice Style Cantilever Spans All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Double Sided Lattice Mast, for use with E16-1 or E16-11 structure kits,Typical of a type fitted to the West Coast Main Line route, including Magnetic Base.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-20 - product code 4WH0901620 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type B Double Sided Lattice Mast, including a Magnetic Base, typical of a type fitted to the West Coast Main Line route. This set E16-20 includes parts to construct One (1) detailed Type B Double Sided Lattice Mast that is designed to fit between two E16-1 or E16-11 Structure kits (not included).  One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. OHLE Structure kit (SET E16-20) assembled dimensions:- • Overall height above your baseboard (including base) - 111mm • Overall length of mast (across the tracks) - 34mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

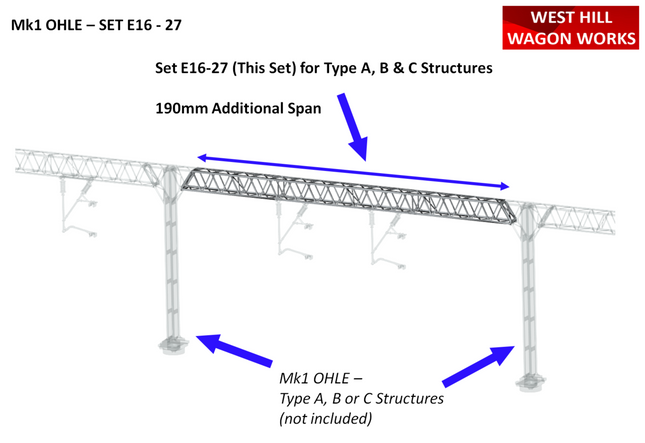

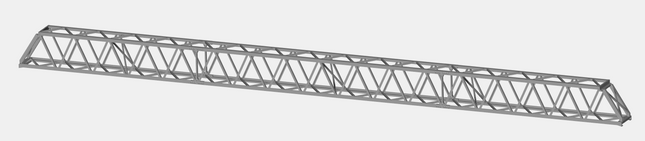

Detailed Overhead Line Equipment Mk1 OHLE 190mm Additional Span for fitting to Mk1 Type A, B and C structure and double sided mast kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-27 - product code 4WH0901627 Detailed Overhead Line Equipment Mk1 OHLE 1 x 190mm Additional / Replacement Span for fitting to Mk1 Type A, B and C structure kits. This set E16-27 includes parts designed specifically to fit to our Mk1 Type A, Type B and Type C OHLE kits (not included).  These additional spans can be used in conjunction with full structure kits and double sided mast kits to make up multiple track structures. The kit consists of:- - One (1) 190mm Additional / Replacement Span Section All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

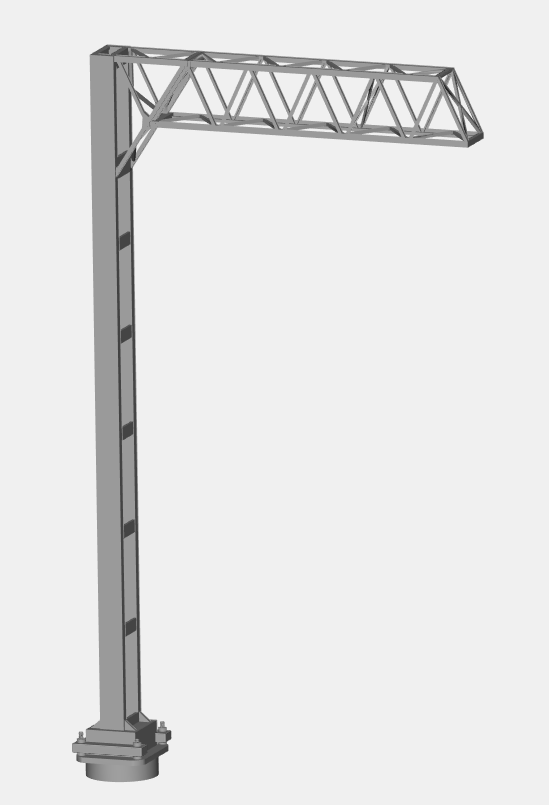

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type C Cantilever Tall Mast Structure for Single Track,Typical of a type fitted to the West Coast Main Line route, including Magnetic Base.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-28 - product code 4WH0901628 Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type C Cantilever Tall Mast Structure for Single Track, including Magnetic Base, typical of a type fitted to the West Coast Main Line route. This set E16-28 includes parts to construct One (1) detailed Type C Cantilever Structure with a Tall Mast that has a span to cater for single track.  One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arm is NOT included and should be purchased separately. Registration Arm and Catenary Wire Supports for the Type C Structure available to Purchase Separately are as follows:- • SET E16-26 - Two Single Registration Arm / Catenary Wire Support sets (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901626 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E16-28) dimensions:- • Overall height above baseboard (including bases) - 119mm • Overall length of structure (across the tracks) - 69mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to E16-26 Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

BARGAIN Bundle Pack A1  Detailed Overhead Line Equipment Structure Kits – Parts to construct Two Mk1 25kV Type A Double Span Platform Structures with Magnetic Registration Arms and Return Conductor Supports; Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E16-80 - product code 4WH0901680 This Bundle Set E16-80 includes:- 2 x E16-1 - Type A 130mm Structure Kits 2 x E16-3 - Type A 190mm Platform Structure Kits 1 x E16-10 - 50mm Extension Span Set 2 x E16-14 - Double Sided Platform Masts 4 x E16-6 - Magnetic Registration Arms Sets 1 x E16-7 - Return Conductor Supports Sets All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Each OHLE Structure (SET E16-80) assembled dimensions:-• Structure height above your Platform (including bases) - 94mm• Structure length (across the tracks) - 400mm• Structure width - 14mm• Nominal height of contact wire (if fitted to Magnetic Registration Arms) - approx. 78mm above baseboard assuming an 18mm Platform Height [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

BARGAIN Bundle Pack B1  Detailed Overhead Line Equipment Structure Kits – Parts to construct Two Mk1 25kV Type B Multi-Track Structures with Magnetic Registration Arms and Return Conductor Supports; Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-85 - product code 4WH0901685 This Bundle Set E16-85 includes:- 2 x E16-12 - Type B 230mm Structure Kits 1 x E16-19 - 55mm Cantilever Spans Set 2 x E16-20 - Type B Double Sided Masts 4 x E16-6 - Magnetic Registration Arms Sets 1 x E16-7 - Return Conductor Supports Set All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Each OHLE Structure (SET E16-85) assembled dimensions:-• Structure height above your Baseboard (including bases) - 111mm• Structure length (across the tracks) - 315mm• Structure width - 14mm• Nominal height of contact wire (if fitted to Magnetic Registration Arms) - approx. 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

BARGAIN Bundle Pack C1  Detailed Overhead Line Equipment Structure Kits – Parts to construct Four Mk1 25kV Type C Single-Track Tall Mast Cantilever Structures with Magnetic Registration Arms and Return Conductor Supports; Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E16-90 - product code 4WH0901690 This Bundle Set E16-90 includes:- 4 x E16-28 - Type C Cantilever Structure Kits 2 x E16-26 - Magnetic Registration Arms Sets 1 x E16-17 - Return Conductor Supports Set All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Each OHLE Structure (SET E16-90) assembled dimensions:-• Structure height above your Baseboard (including bases) - 119mm• Structure length (across the tracks) - 69mm• Structure width - 14mm• Nominal height of contact wire (if fitted to Magnetic Registration Arms) - approx. 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less
