Downloads
-

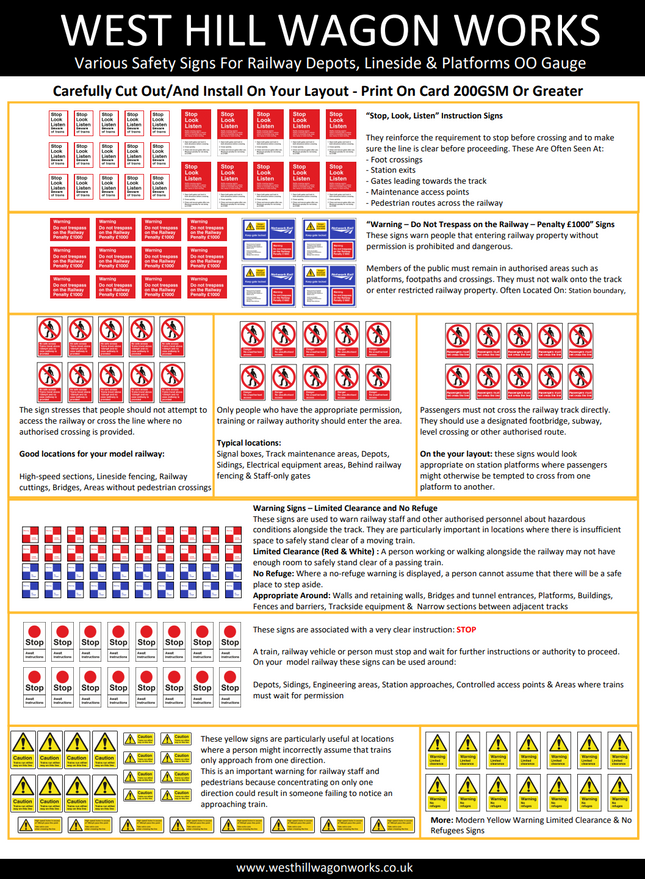

Various Safety Signs For Railway Depots, Lineside & Platforms OO Gauge - Free Download
Free Download - Add To Checkout And An Email Copy Will Be Sent AutomaticallyVarious Safety Signs For Railway Depots, Lineside & Platforms OO Gauge
£0.00
-

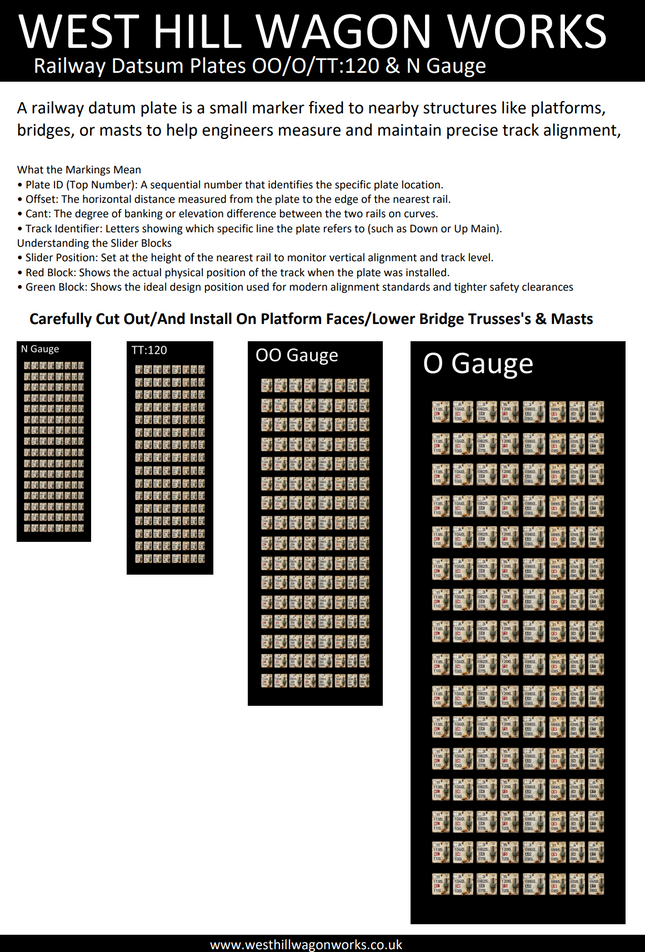

Railway Datsum Plates - Free Download
Free Download - Add To Checkout And An Email Copy Will Be Sent AutomaticallyA railway datum plate is a small marker fixed to nearby structures like platforms,bridges, or masts to help engineers measure and maintain precise track alignment,What the Markings Mean• Plate ID (Top Number): A sequential number that identifies the specific plate location.• Offset: The horizontal distance measured from the plate to the edge of the nearest rail.• Cant: The degree of banking or elevation difference between the two rails on curves.• Track Identifier: Letters showing which specific line the plate refers to (such as Down or Up Main).Understanding the Slider Blocks• Slider Position: Set at the height of the nearest rail to monitor vertical alignment and track level.• Red Block: Shows the actual physical position of the track when the plate was installed.• Green Block: Shows the ideal design position used for modern alignment standards and tighter safety clearancesRailway Datsum Plates OO/O/TT:120 & N GaugeCarefully Cut Out/And Install On Platform Faces/Lower Bridge Trusses's & Masts
£0.00
-

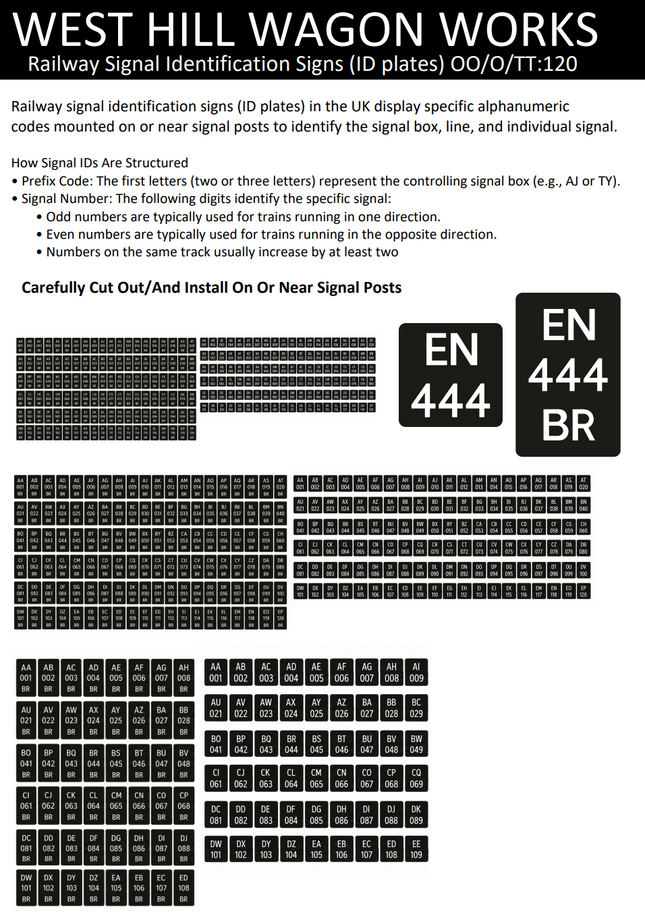

Railway Signal Identification Signs (ID plates) - Free Download
Railway Signal Identification Signs (ID plates) OO/O/TT:120 - Add To Checkout And An Email Copy Will Be Sent Automatically Free Of Charge Railway signal identification signs (ID plates) in the UK display specific alphanumericcodes mounted on or near signal posts to identify the signal box, line, and individual signal.How Signal IDs Are Structured• Prefix Code: The first letters (two or three letters) represent the controlling signal box (e.g., AJ or TY).• Signal Number: The following digits identify the specific signal: • Odd numbers are typically used for trains running in one direction. • Even numbers are typically used for trains running in the opposite direction. • Numbers on the same track usually increase by at least twoCarefully Cut Out/And Install On Or Near Signal Posts
£0.00
-
Station Posters - Free Download
A free to download set of British Rail Station posters.A free to download set of British Rail Station posters. You Can Download For Free Below Or Add To Checkout And An Email Copy Will Be SentClick Attachments To Download File For FreeItem Is Free To Download
£0.00
