1500v DC OHLE Lattice Catenary OO Gauge (SET E7)

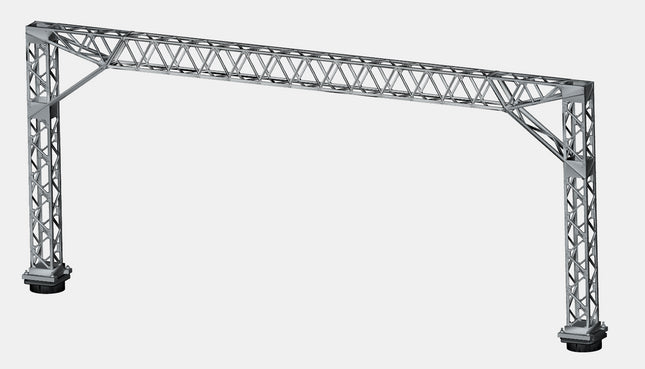

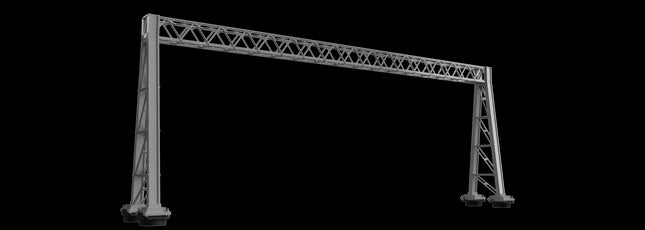

Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type 2-Track structure,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-1 - product code 4WH0900701Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type structure, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-1 - product code 4WH0900701 This set E7-1 includes parts to construct One (1) detailed Lattice type structure that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options for the Lattice type Structure available to Purchase Separately are as follows:- • SET E7-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 • SET E7-11 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900711 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E7-1) dimensions:- • Overall height above baseboard (including bases) - 110mm • Overall length of structure (across the tracks) - 155mm • Nominal Span distance between inner edge of Bases - 130mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type 4-Track structure,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-2 - product code 4WH0900702Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type structure, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-2 - product code 4WH0900702 This set E7-2 includes parts to construct One (1) detailed Lattice type structure that has a span to cater for up to 4 (four) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options for the Lattice type Structure available to Purchase Separately are as follows:- • SET E7-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 • SET E7-11 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900711 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E7-2) dimensions:- • Overall height above baseboard (including bases) - 110mm • Overall length of structure (across the tracks) - 256mm • Nominal Span distance between inner edge of Bases - 230mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

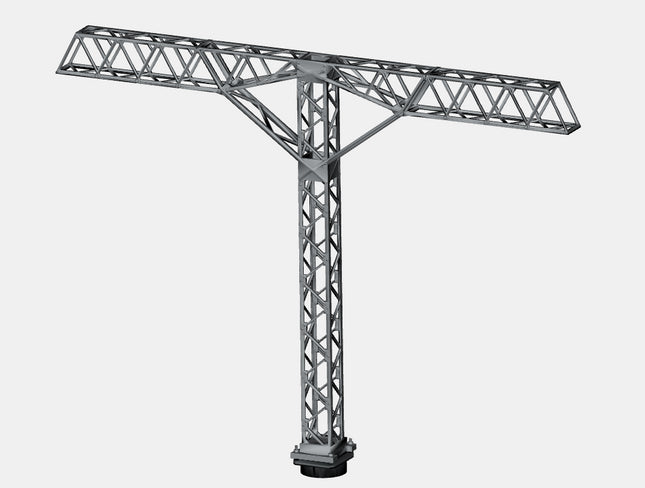

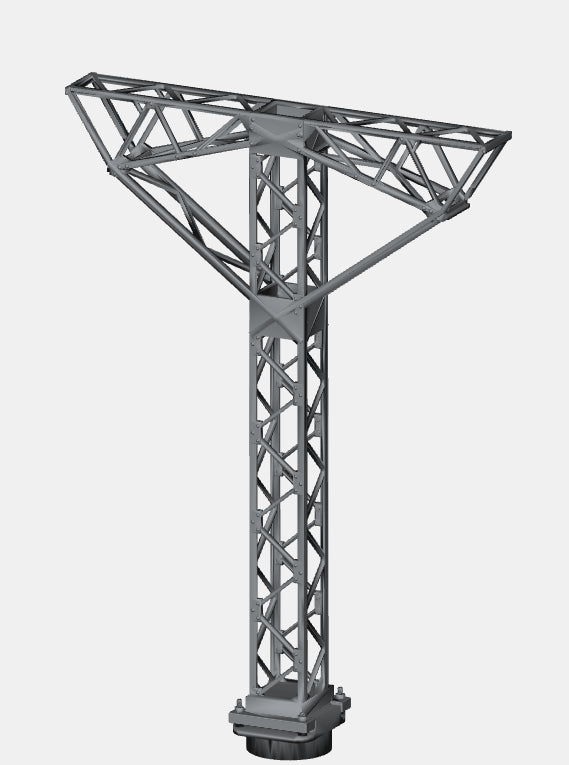

Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type Double Sided structure,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes, incl. Magnetic Base.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-3 - product code 4WH0900703Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type Cantilever structure, incl. Magnetic Base, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-3 - product code 4WH0900703 This set E7-3 includes parts to construct One (1) detailed Lattice type Cantilever structure that has two spans to cater for 1 (one) + 1 (one) track. One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options for the Lattice type Structure available to Purchase Separately are as follows:- • SET E7-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 • SET E7-11 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900711 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E7-3) dimensions:- • Overall height above baseboard (including base) - 110mm • Overall length of structure (across the tracks) - 145mm • Nominal Span distance between edge of Base and end of Spans – 65mm + 65mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

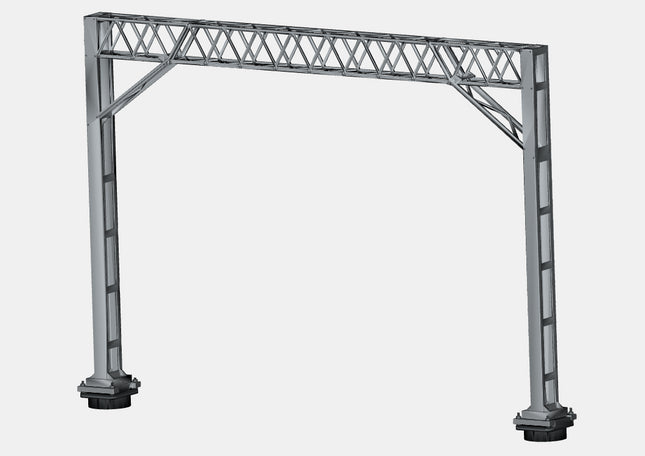

Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type 2- Track structure, incl. Magnetic Bases, Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.This kit is suitable for fitting Wire Supported Type Registration Arms (not included)PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-4 - product code 4WH0900704Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type 2- Track structure, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-4 - product code 4WH0900704 This set E7-4 includes parts to construct One (1) detailed Lattice type structure that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - This kit is suitable for fitting Wire Supported Type Registration Arms (not included) which may be purchased separately if desired. The special Registration Arm and Catenary Wire Support set for E7-4 is available to Purchase Separately as follows:- • SET E7-17 - Two Single Wire Supported Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900717 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E7-4) dimensions:- • Overall height above baseboard (including bases) - 110mm • Overall length of structure (across the tracks) - 155mm • Nominal Span distance between inner edge of Bases - 130mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type Platform Structure,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes, incl. Magnetic Bases.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-5 - product code 4WH0900705Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type Platform structure, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-5 - product code 4WH0900705 This set E7-5 includes parts to construct One (1) detailed Lattice type Platform structure that has a span of 190mm.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options for the Lattice type Structure available to Purchase Separately are as follows:- • SET E7-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 • SET E7-11 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900711 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E7-5) assembled dimensions:- • Overall height above your platform (including bases) - 88mm • Overall length of structure (across the tracks) - 210mm • Nominal Span distance between inner edge of Bases - 190mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included], this is assuming a nominal 18mm Platform height. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type Double Sided mast for use with E7-5 Platform structure kits,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes, incl. Magnetic Base.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-6 - product code 4WH0900706Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type Platform Mast kit, incl. Magnetic Base, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-6 - product code 4WH0900706 This set E7-6 includes parts to construct One (1) detailed Lattice type Platform Mast that is designed to fit between two E7-5 Platform Structure kits to allow spanning of multiple platforms. One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. OHLE Mast kit (SET E7-6) dimensions:- • Overall height above your Platform (including base) - 88mm • Overall length of mast - 65mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]; assuming a nominal 18mm Platform height. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

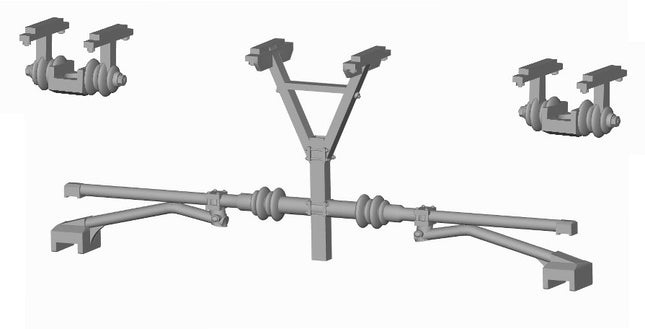

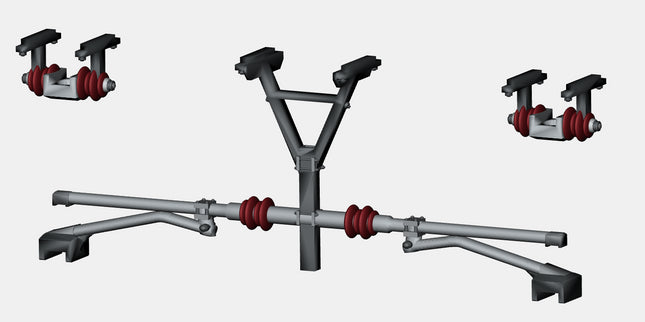

Detailed Overhead Line Equipment 1500vDC Lattice Type Registration Arms and Catenary Wire Supports (magnetic type)for fitting to Lattice type OHLE structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-10 - product code 4WH0900710Detailed Overhead Line Equipment 1500vDC Lattice Type Registration Arms and Catenary Wire Supports (magnetic type) for fitting to Lattice type OHLE structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-10 - product code 4WH0900710 This set E7-10 includes parts designed specifically to fit to 1500vDC Lattice type OHLE kits E7-1, E7-2 and E7-3. The kit consists of:- - Two (2) Single Type Registration Arms (magnetic type) - Two (2) Catenary Wire Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. Also available to Purchase Separately are as follows:- • SET E7-11 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900711 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

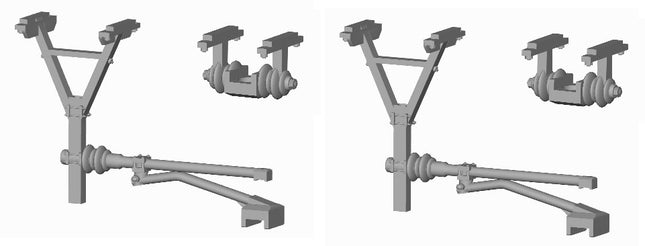

Detailed Overhead Line Equipment 1500vDC Lattice Type Double Registration Arm and Catenary Wire Supports (magnetic type)for fitting to Lattice type OHLE structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-11 - product code 4WH0900711Detailed Overhead Line Equipment 1500vDC Lattice Type Double Registration Arm and Catenary Wire Supports (magnetic type) for fitting to Lattice type OHLE structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-11 - product code 4WH0900711 This set E7-11 includes parts designed specifically to fit to 1500vDC Lattice type OHLE kits E7-1, E7-2 and E7-3. The kit consists of:- - One (1) Double Type Registration Arm (magnetic type) - Two (2) Catenary Wire Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. Also available to Purchase Separately are as follows:- • SET E7-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

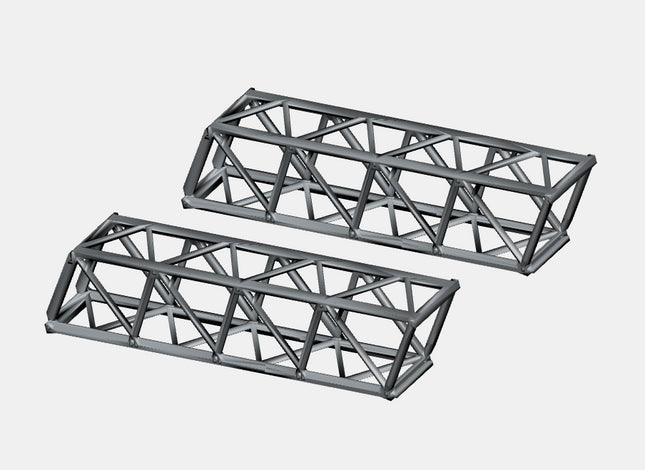

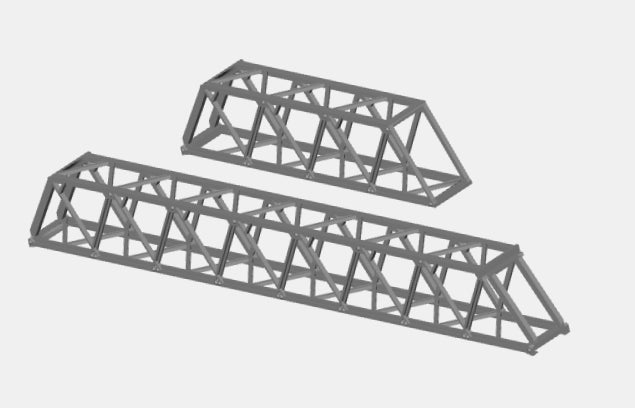

Detailed Overhead Line Equipment – 1500vDC Lattice type structure spare/replacement 2-Track and Cantilever spans.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-12 - product code 4WH0900712Detailed Overhead Line Equipment – 1500vDC Lattice type structure spare/replacement 2-Track and Cantilever spans. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-12 - product code 4WH0900712 This set E7-12 includes spare/replacement Lattice type span parts only. These parts are specifically designed to fit to the Masts supplied with 1500vDC OHLE kits E7-1, E7-2 and E7-3.  Pack includes:- - 1 (one) 2-Track Lattice type span - 1 (one) Cantilever Lattice type span PLEASE NOTE - the OHLE structure Masts and registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options for the Lattice type Spans available to Purchase Separately are as follows:- • SET E7-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 • SET E7-11 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900711 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

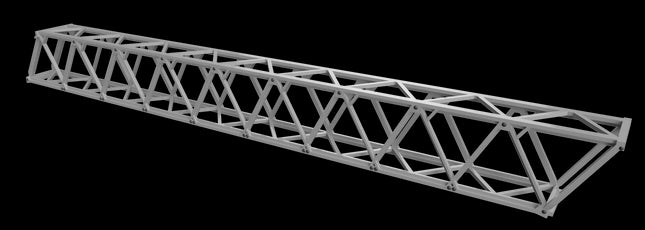

Detailed Overhead Line Equipment – 1500vDC Lattice type structure 100mm Extension span.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-16 - product code 4WH0900716 Detailed Overhead Line Equipment – 1500vDC Lattice type structure 100mm Extension span. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-16 - product code 4WH0900716 This set E7-16 includes 1 x Span Extension Section for Lattice type structures. These parts are specifically designed to fit to the OHLE Structure kits E7-1, E7-2 or E7-3 during their assembly. Pack includes:- - 1 (one) 100mm Lattice type Extension span PLEASE NOTE - the OHLE structure Masts and registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options for the Lattice type Spans available to Purchase Separately are as follows:- • SET E7-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 • SET E7-11 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900711 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

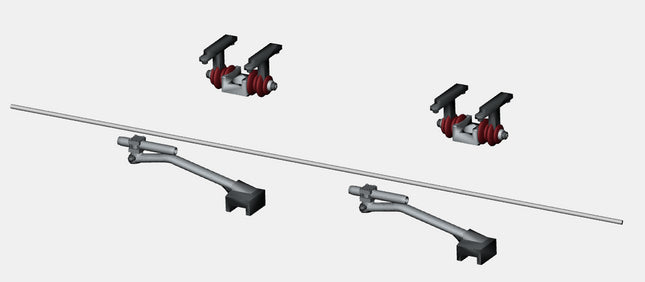

Detailed Overhead Line Equipment 1500vDC Lattice Type Wire Supported Registration Arms and Catenary Wire Supports (magnetic type)This kit is for fitting to Lattice type OHLE structure kit E7-4.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-17 - product code 4WH0900717Detailed Overhead Line Equipment 1500vDC Lattice Type Wire Supported Registration Arms and Catenary Wire Supports (magnetic type) for fitting to Lattice type OHLE structure kit E7-4. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-17 - product code 4WH0900717 This set E7-17 includes parts designed specifically to fit to 1500vDC Lattice type OHLE kit E7-4. The kit consists of:- - Two (2) Single Type Wire Supported Registration Arms (magnetic type) - Two (2) Catenary Wire Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. - Length of 0.5mm wire rod (approx. 150mm) All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

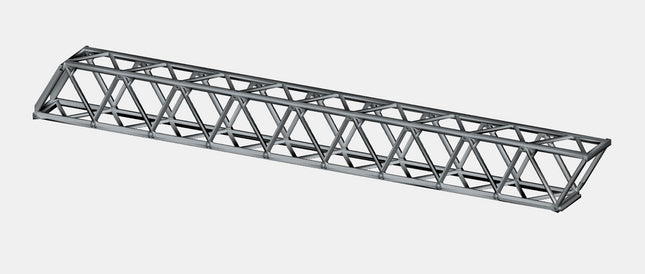

Detailed Overhead Line Equipment – 1500vDC Lattice type structure 45mm Extension spans.Pack of 2PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E7-18 - product code 4WH0900718 Detailed Overhead Line Equipment – 1500vDC Lattice type 45mm Extension spans - Pack of 2. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E7-18 - product code 4WH0900718 This set E7-18 includes 2 x Spans Extension Section for Lattice type structures. These parts are specifically designed to fit to the OHLE Structure kits E7-1, E7-2, E7-3, E7-5 or E7-6 during their assembly. Pack includes:- - 2 (two) 45mm Lattice type Extension spans PLEASE NOTE - the OHLE structure Masts and registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options for the Lattice type Spans available to Purchase Separately are as follows:- • SET E7-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 • SET E7-11 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900711 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.
