Description

Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type Double Sided mast for use with E7-5 Platform structure kits,
Typical of a type fitted to the Woodhead and Great Eastern Main Line routes, incl. Magnetic Base.
PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW
OO Gauge SET E7-6 - product code 4WH0900706

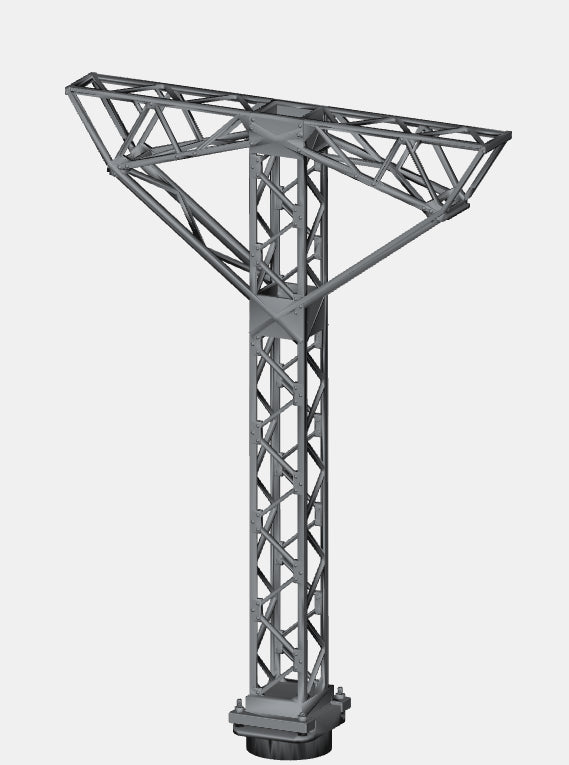

Detailed Overhead Line Equipment Structure Kit – 1500vDC Lattice type Platform Mast kit, incl. Magnetic Base, typical of a type fitted to the Woodhead and Great Eastern Main Line routes.

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

OO Gauge SET E7-6 - product code 4WH0900706

This set E7-6 includes parts to construct One (1) detailed Lattice type Platform Mast that is designed to fit between two E7-5 Platform Structure kits to allow spanning of multiple platforms.

One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

OHLE Mast kit (SET E7-6) dimensions:-

• Overall height above your Platform (including base) - 88mm

• Overall length of mast - 65mm

• Overall width of structure - 14mm

• Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]; assuming a nominal 18mm Platform height.

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
