Series 1 Mono-Boom Anchor Portal Catenary OO Gauge (Set E1)

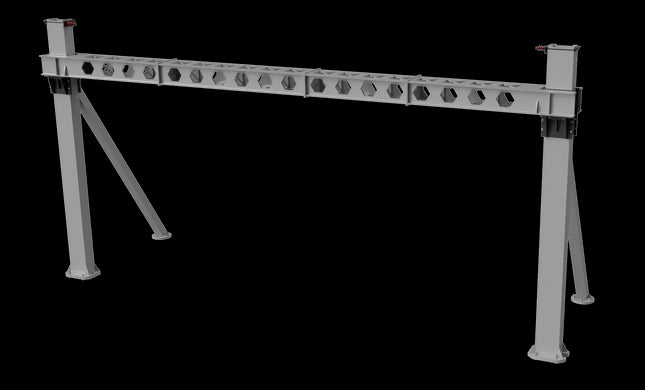

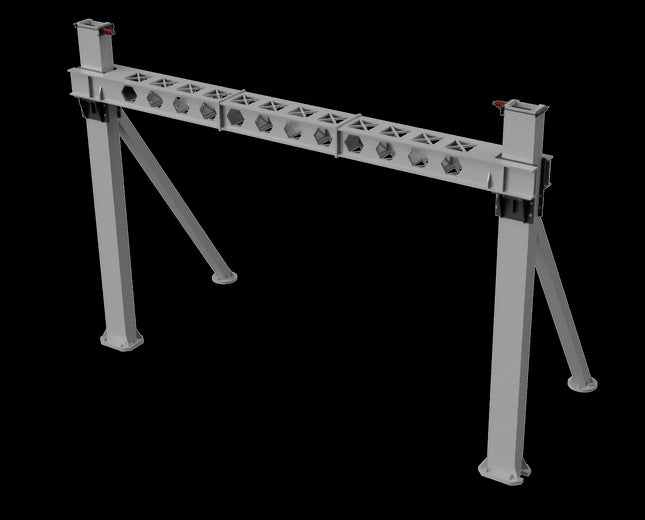

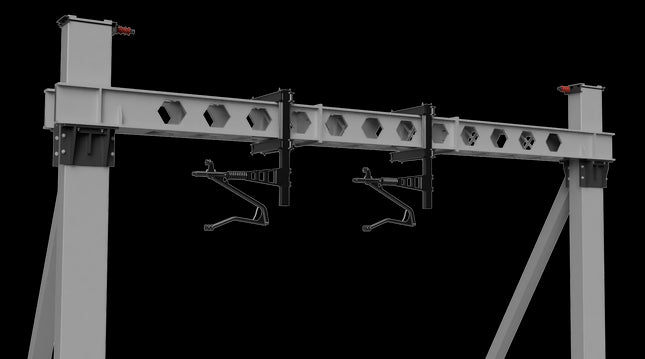

Detailed Overhead Line Equipment Structure Kit - SERIES 1 Mono-Boom Anchor Portal type, including Magnetic Bases OO GaugeSET E1-1 - product code 4WH0900101PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed Overhead Line Equipment Structure Kit - SERIES 1 Mono-Boom Anchor Portal type, including Magnetic BasesPLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E1-1 - product code 4WH0900101This set E1-1 includes parts to construct One (1) basic portal structure that has an adjustable span to cater for up to 4 (four) tracks. Two Pile Driven style Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.Extension sets are available separately, SET E1-2 Mono-Boom Anchor Portal Extension Pack; these can be added during construction to allow the structure to span more than four tracks.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.Registration Arm options available to Purchase Separately are as follows:- SET E1-3 Left Hand Registration Arm SET E1-4 Right Hand Registration Arm SET E1-5 Left Hand Registration Arm (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] SET E1-6 Right Hand Registration Arm (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E1-1) dimensions:- Overall height above baseboard (including bases) - 128mm Overall Maximum adjustable length of structure (across the tracks) - 246mm Overall Minimum adjustable length of structure (across the tracks) - 131mm Overall width of structure - 76mm (including diagonal support beams)  Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

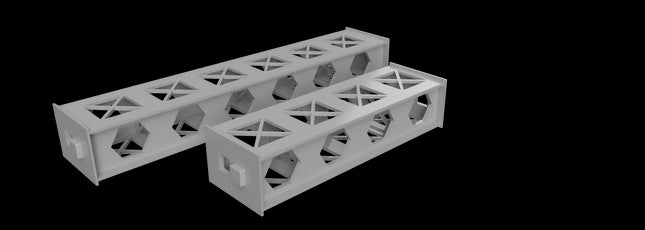

Detailed Overhead Line Equipment Structure Extension Kit - SERIES 1 Mono-Boom Anchor Portal typeOO Gauge SET E1-2 - product code 4WH0900102Extension Kit ONLY - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed Overhead Line Equipment Structure 'Extension' Kit for SERIES 1 Mono-Boom Anchor Portal structurePLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E1-2 - product code 4WH0900102PLEASE NOTE - this is an EXTENSION PACK only, it is only suitable for adding to the SERIES 1 Mono-Boom Anchor Portal kit (SET E1-1) that must be purchased separately.This set E1-2 includes parts to extend the basic portal structure so that it may be constructed to span more than four tracks. The Extension Pack adds up to 11cm (approx.) to the width of the basic OHLE structure.PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm options available to Purchase Separately are as follows:- SET E1-3 Left Hand Registration Arm SET E1-4 Right Hand Registration Arm SET E1-5 Left Hand Registration Arm (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] SET E1-6 Right Hand Registration Arm (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

Read more less

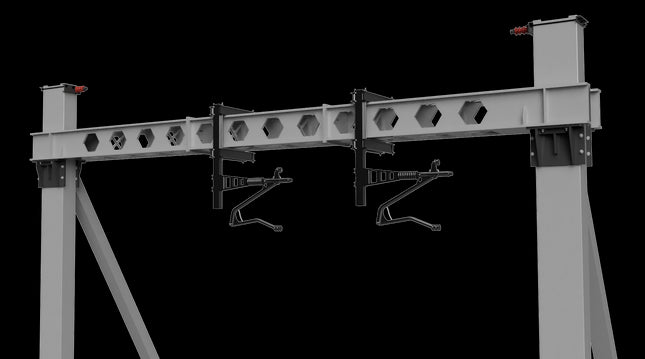

Detailed Overhead Line Equipment 2 x Registration Arms LEFT HAND for SERIES 1 Mono-Boom Anchor PortalOO Gauge SET E1-3 - product code 4WH0900103REGISTRATION ARMS only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed Overhead Line Equipment 2 x Registration Arms LEFT HAND for SERIES 1 Mono-Boom Anchor PortalPLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E1-3 - product code 4WH0900103 This set E1-3 includes TWO (2) Left Handed Registration Arms that are intended for fitting to the SET E1-1 Mono-Boom Anchor Portal Structure kit.PLEASE NOTE that these registration arms are NOT intended to support the fitting of contact wires. Other types of registration arms are available as follows:- SET E1-4 Right Hand Registration Arm SET E1-5 Left Hand Registration Arm (magnetic type to allow fitting of Peco type OHL contact wires) note [wires are not included] SET E1-6 Right Hand Registration Arm (magnetic type to allow fitting of Peco type OHL contact wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

Read more less

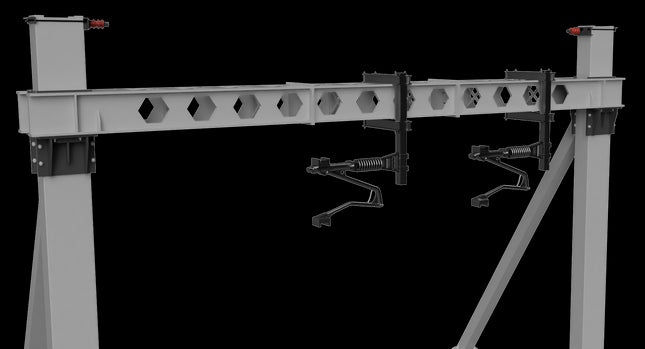

Detailed Overhead Line Equipment 2 x Registration Arms RIGHT HAND for SERIES 1 Mono-Boom Anchor Portal OO Gauge SET E1-4 - product code 4WH0900104REGISTRATION ARMS only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed Overhead Line Equipment 2 x Registration Arms RIGHT HAND for SERIES 1 Mono-Boom Anchor PortalPLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E1-4 - product code 4WH0900104 This set E1-4 includes TWO (2) Right Handed Registration Arms that are intended for fitting to the SET E1-1 Mono-Boom Anchor Portal Structure kit.PLEASE NOTE that these registration arms are NOT intended to support the fitting of contact wires. Other types of registration arms are available as follows:- SET E1-3 Left Hand Registration Arm SET E1-5 Left Hand Registration Arm (magnetic type to allow fitting of Peco type OHL contact wires) note [wires are not included] SET E1-6 Right Hand Registration Arm (magnetic type to allow fitting of Peco type OHL contact wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

Read more less

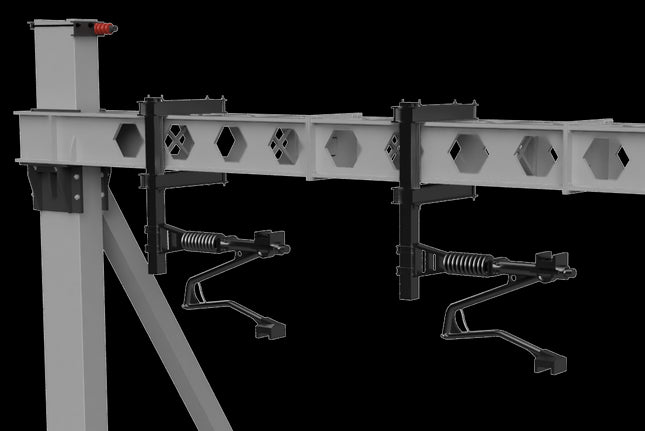

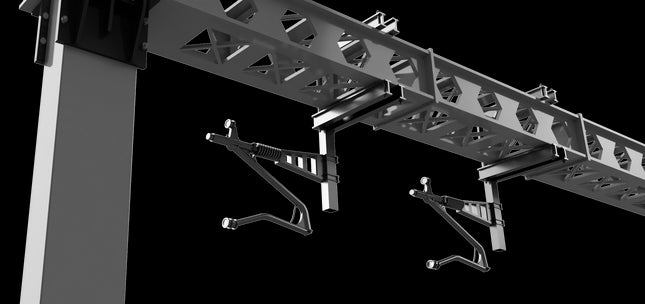

Detailed Overhead Line Equipment 2 x MAGNETIC Registration Arms kit LEFT HAND for fitting to the SERIES 1 Mono-Boom Anchor Portal kitOO Gauge SET E1-5 - product code 4WH0900105Pack of 2 MAGNETIC Registration Arms that can support the fitting of contact wires (not included)REGISTRATION ARMS only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed Overhead Line Equipment - 2 MAGNETIC Registration Arms LEFT HAND for fitting to the SERIES 1 Mono-Boom Anchor Portal kitREGISTRATION ARMS only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E1-5 - product code 4WH0900105 This set E1-5 includes TWO (2) MAGNETIC Type Left Handed Registration Arms that are intended for fitting to the SET E1-1 Mono-Boom Anchor Portal Structure kit.PLEASE NOTE that this registration arm kit includes Magnets to support the fitting of Peco type OHL contact wires, NOTE the contact wires are NOT included. PLEASE NOTE the Magnets will need to be fitted into the registration arms Other types of registration arms are available as follows:- SET E1-3 Left Hand Registration Arm (basic) SET E1-4 Right Hand Registration Arm (basic) SET E1-6 Right Hand Registration Arm (magnetic type to allow fitting of Peco type OHL contact wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

Read more less

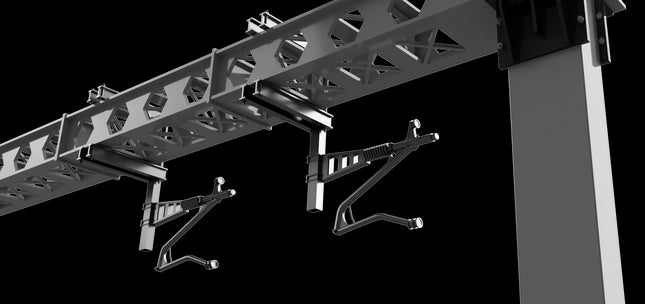

Detailed Overhead Line Equipment 2 x MAGNETIC Registration Arms kit RIGHT HAND for fitting to the SERIES 1 Mono-Boom Anchor Portal kitOO Gauge SET E1-6 - product code 4WH0900106Pack of 2 MAGNETIC Registration Arms that can support the fitting of contact wires (not included)REGISTRATION ARMS only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed Overhead Line Equipment - 2 MAGNETIC Registration Arms RIGHT HAND for fitting to the SERIES 1 Mono-Boom Anchor Portal kitREGISTRATION ARMS only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E1-6 - product code 4WH0900106 This set E1-6 includes TWO (2) MAGNETIC Type Right Handed Registration Arms that are intended for fitting to the SET E1-1 Mono-Boom Anchor Portal Structure kit.PLEASE NOTE that this registration arm kit includes Magnets to support the fitting of Peco type OHL contact wires, NOTE the contact wires are NOT included. PLEASE NOTE the Magnets will need to be fitted into the registration arms Other types of registration arms are available as follows:- SET E1-3 Left Hand Registration Arm (basic) SET E1-4 Right Hand Registration Arm (basic) SET E1-5 Left Hand Registration Arm (magnetic type to allow fitting of Peco type OHL contact wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

Read more less

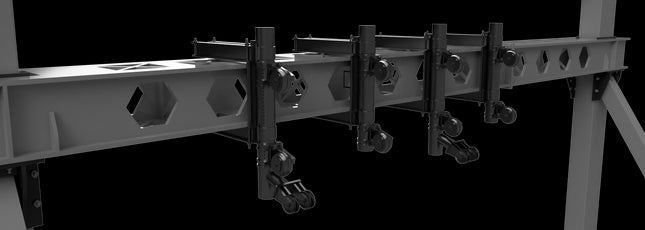

Portal Mounted Wire Tensioners for Overhead Line Equipment Structures - SERIES 1 Mono-Boom Anchor Portal typeOO GaugeSET E1-7 - product code 4WH0900107Post Mounted Tensioners only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWPortal Mounted Wire Tensioners for Overhead Line Equipment Structures - SERIES 1 Mono-Boom Anchor Portal typeWire Tensioners only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E1-7 - product code 4WH0900107This set E1-7 includes Two (2) Wire Tensioners (non-working). PLEASE NOTE - these parts are suitable for mounting to the Overhead Line Equipment Structures of the SERIES 1 Mono-Boom Anchor Portal type SET E1-1 product 4WH0900101. All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.
