1500v DC OHLE I Beam Catenary OO Gauge (SET E6)

15 products

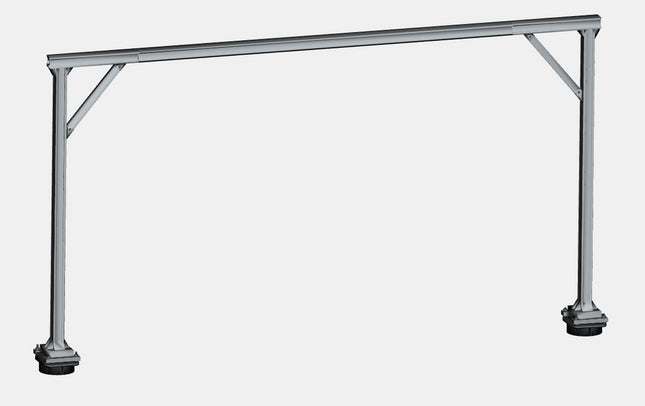

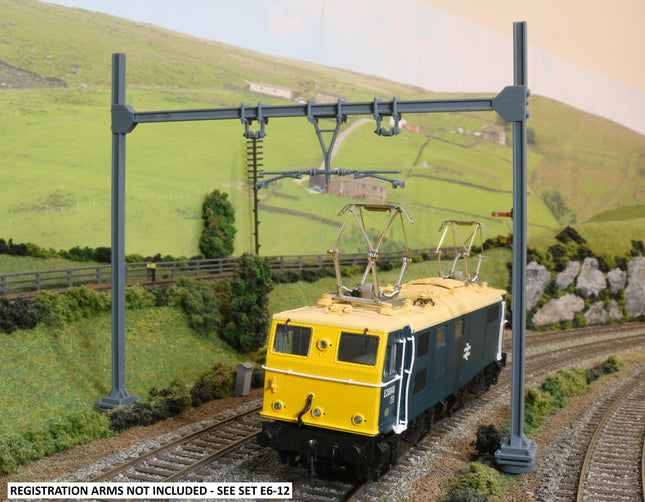

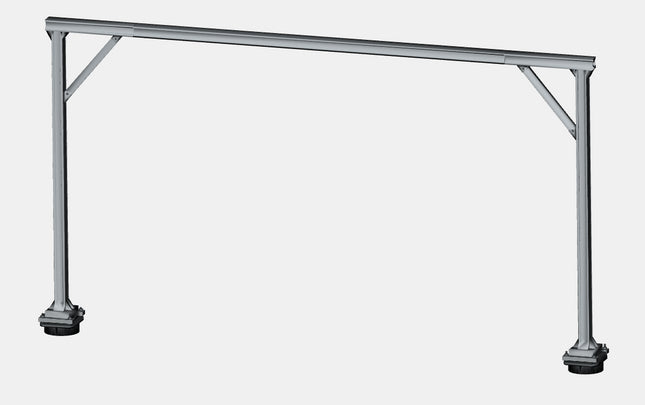

  • 1500v DC OHLE I Beam Type Structure Kit - 2 Masts with Beam for 2-Track 170mm Span (SET E6-1) 1500v DC OHLE I Beam Type Structure Kit - 2 Masts with Beam for 2-Track 170mm Span (SET E6-1)

    1500v DC OHLE I Beam Type Structure Kit - 2 Masts with Beam for 2-Track 170mm Span (SET E6-1)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Mast type,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.Incl. Magnetic Bases. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-1 - product code 4WH0900601Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Mast type, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-1 - product code 4WH0900601 This set E6-1 includes parts to construct One (1) I-Beam type OHLE structure that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. Extension I-Beam sets are available separately, SET E6-10 (1500v DC OHLE I Beam Type - 2 x 30mm and 2 x 60mm Span Extension Beams - Product code 4WH0900610); these can be added during construction to allow the structure to span more than two tracks. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options available to Purchase Separately are as follows:- • SET E6-11 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900611 • SET E6-12 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900612 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E6-1) dimensions:- • Overall height above baseboard (including bases) - 110mm • Overall length of structure (across the tracks) - 196mm • Nominal Span distance between inner edge of Bases - 170mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 79mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £8.95

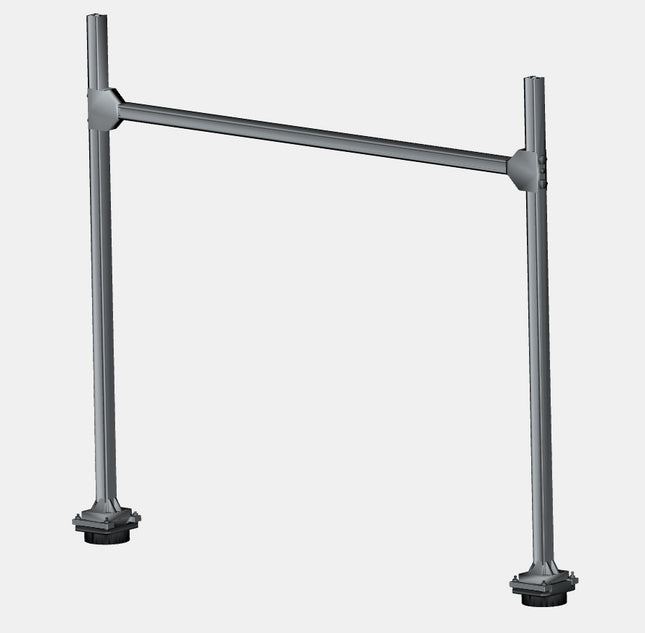

  • 1500v DC OHLE I Beam Type Structure Kit - 2 Tall Masts with Beam for 2-Track 130mm Span (SET E6-2) 1500v DC OHLE I Beam Type Structure Kit - 2 Tall Masts with Beam for 2-Track 130mm Span (SET E6-2)

    1500v DC OHLE I Beam Type Structure Kit - 2 Tall Masts with Beam for 2-Track 130mm Span (SET E6-2)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Tall Mast type,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.Incl. Magnetic Bases, PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-2 - product code 4WH0900602Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Tall Mast type, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-2 - product code 4WH0900602 This set E6-2 includes parts to construct One (1) I-Beam Tall Mast type OHLE structure that has a span to cater for up to 2 (two) tracks. The Tall Masts are used in areas where a higher wire height is required. Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. Extension I-Beam sets are available separately, SET E6-10 (1500v DC OHLE I Beam Type - 2 x 30mm and 2 x 60mm Span Extension Beams - Product code 4WH0900610); these can be added during construction to allow the structure to span more than two tracks. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options available to Purchase Separately are as follows:- • SET E6-11 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900611 • SET E6-12 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900612 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E6-2) dimensions:- • Overall height above baseboard (including bases) - 139mm • Overall length of structure (across the tracks) - 160mm • Nominal Span distance between inner edge of Bases - 130mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 88mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £8.95

  • 1500v DC OHLE I Beam Type Structure Kit - 2 Platform Masts with Beam for 2-Track 170mm Span (SET E6-3)

    1500v DC OHLE I Beam Type Structure Kit - 2 Platform Masts with Beam for 2-Track 170mm Span (SET E6-3)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Mast type for Platforms,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.Incl. Magnetic Bases, PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-3 - product code 4WH0900603Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Mast type for Platforms, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-3 - product code 4WH0900603 This set E6-3 includes parts to construct One (1) I-Beam Platform Mast type OHLE structure that has a span to cater for up to 2 (two) tracks. The Platform Masts give a typical slightly higher wire height. Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. Extension I-Beam sets are available separately, SET E6-10 (1500v DC OHLE I Beam Type - 2 x 30mm and 2 x 60mm Span Extension Beams - Product code 4WH0900610); these can be added during construction to allow the structure to span more than two tracks. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options available to Purchase Separately are as follows:- • SET E6-11 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900611 • SET E6-12 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900612 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E6-3) dimensions:- • Overall height above your Platform (including bases) - 100mm • Overall length of structure (across the tracks) - 196mm • Nominal Span distance between inner edge of Bases - 170mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 88mm above baseboard [wires not included], this is assuming a nominal 18mm Platform height. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £8.95

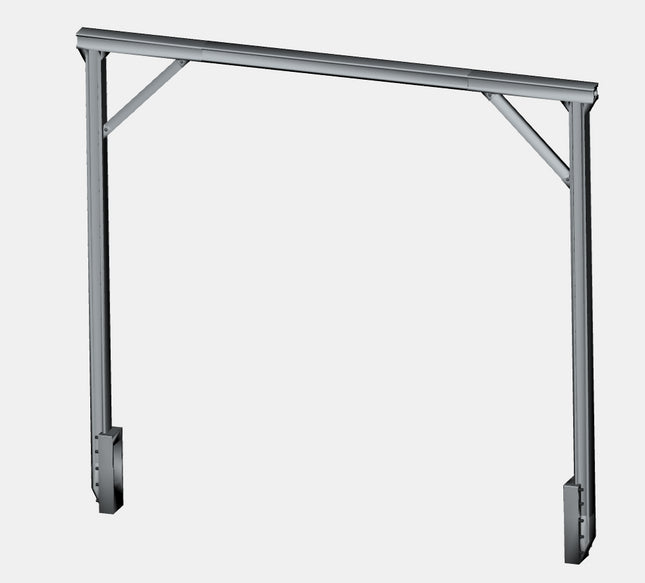

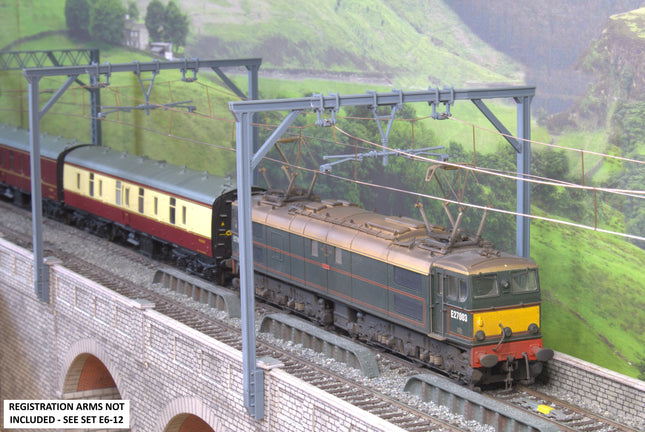

  • 1500v DC OHLE I Beam Type Structure Kit - 2 Viaduct Masts with Beam for 110mm Viaduct Span (SET E6-4) 1500v DC OHLE I Beam Type Structure Kit - 2 Viaduct Masts with Beam for 110mm Viaduct Span (SET E6-4)

    1500v DC OHLE I Beam Type Structure Kit - 2 Viaduct Masts with Beam for 110mm Viaduct Span (SET E6-4)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Viaduct Mast type,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.Incl. Special Viaduct Side Mount Magnetic Bases, PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-4 - product code 4WH0900604Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Viaduct Mast type, incl. Special Viaduct Side Mount Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-4 - product code 4WH0900604 This set E6-4 includes parts to construct One (1) I-Beam type OHLE structure for Viaducts that has a span to cater for 2-track Viaduct Structures of 110mm width.  Two Special Viaduct Side Mount Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. Extension I-Beam sets are available separately, SET E6-10 (1500v DC OHLE I Beam Type - 2 x 30mm and 2 x 60mm Span Extension Beams - Product code 4WH0900610); these can be added during construction to allow the structure to span more than two tracks. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options available to Purchase Separately are as follows:- • SET E6-11 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900611 • SET E6-12 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900612 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E6-4) dimensions:- • Overall height of structure (including bases) - 118mm • Overall length of structure (across the tracks) - 125mm • Nominal Span distance between inner edge of Bases - 110mm • Overall width of structure - 8mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 79mm above Viaduct trackbed [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £7.95

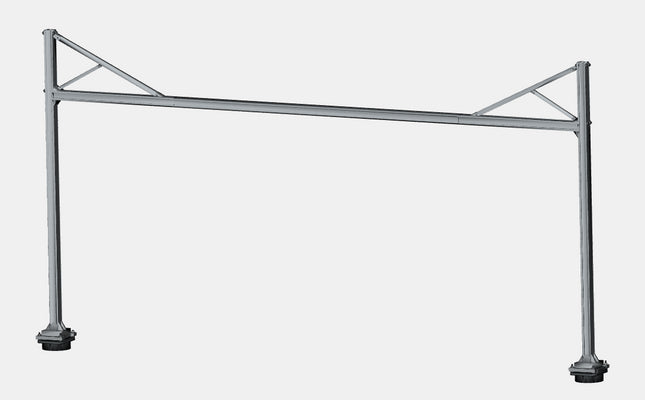

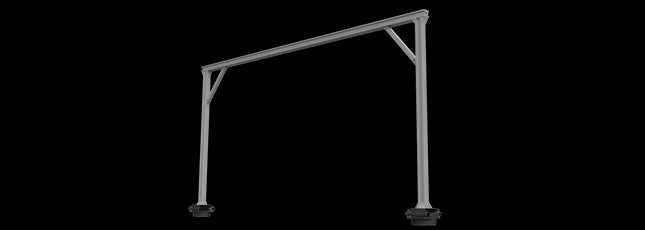

  • 1500v DC OHLE I Beam Type Structure Kit - 2 Top Braced Long Masts with Beam for 3-Track 230mm Span (SET E6-5) 1500v DC OHLE I Beam Type Structure Kit - 2 Top Braced Long Masts with Beam for 3-Track 230mm Span (SET E6-5)

    1500v DC OHLE I Beam Type Structure Kit - 2 Top Braced Long Masts with Beam for 3-Track 230mm Span (SET E6-5)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Top Braced type,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.Incl. Magnetic Bases. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-5 - product code 4WH0900605Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Top Braced type, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-5 - product code 4WH0900605 This set E6-5 includes parts to construct One (1) I-Beam Top Braced type structure that has a span to cater for up to 3 (three) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. Extension I-Beam sets are available separately, SET E6-10 (1500v DC OHLE I Beam Type - 2 x 30mm and 2 x 60mm Span Extension Beams - Product code 4WH0900610); these can be added during construction to allow the structure to span more than three tracks. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options available to Purchase Separately are as follows:- • SET E6-11 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900611 • SET E6-12 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900612 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E6-5) dimensions:- • Overall height above baseboard (including bases) - 133mm • Overall length of structure (across the tracks) - 256mm • Nominal Span distance between inner edge of Bases - 230mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 79mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £9.95

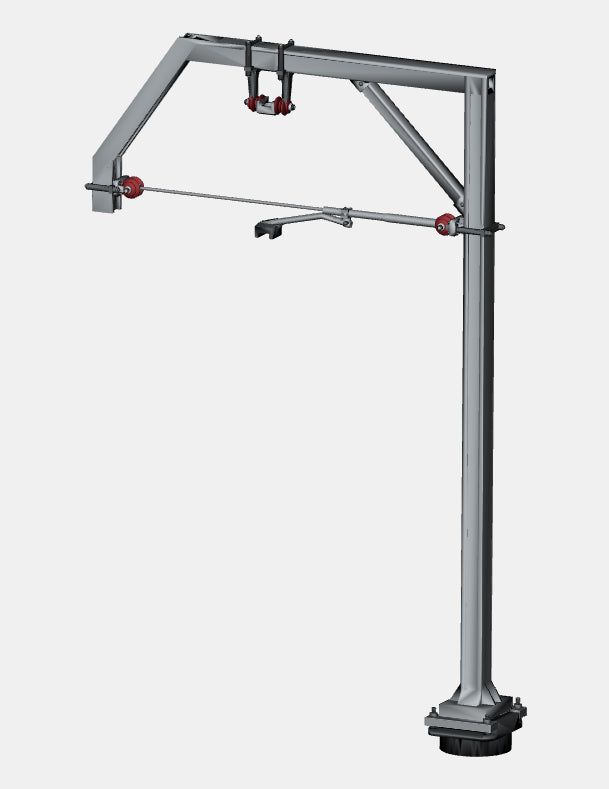

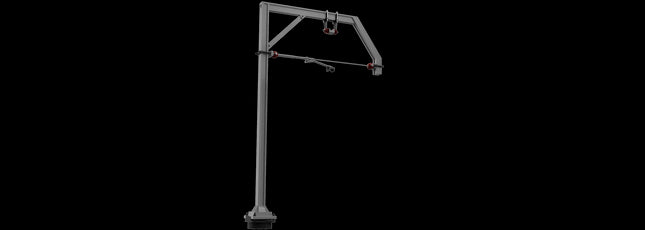

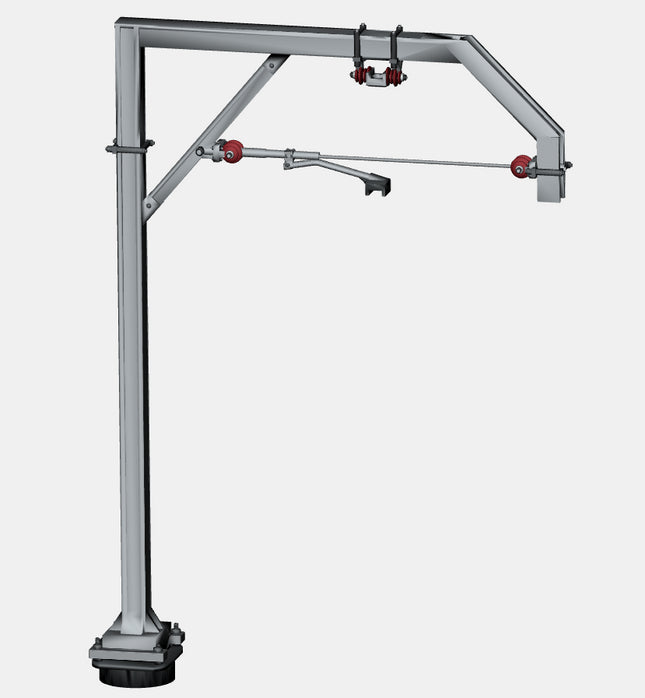

  • 1500v DC OHLE I Beam Type Structure - Single Track Cantilever Mast Kit (SET E6-7) 1500v DC OHLE I Beam Type Structure - Single Track Cantilever Mast Kit (SET E6-7)

    1500v DC OHLE I Beam Type Structure - Single Track Cantilever Mast Kit (SET E6-7)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Single Track Cantilever type Mast, Incl. Magnetic Base and Registration Arm,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-7 - product code 4WH0900607Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Single Track Cantilever type Mast, incl. Magnetic Base and Registration Arm, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-7 - product code 4WH0900607 This set E6-7 includes parts to construct One (1) Single Track Cantilever I-Beam type structure. One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. A length of 0.5mm wire is included that may be slotted through the mast end and into the registration arm (once fitted) - the registration arm is included. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E6-7) dimensions:- • Overall height above baseboard (including bases) - 106mm • Overall length of structure (across the tracks) - 75mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arm) - 79mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £6.95

  • 1500v DC OHLE I Beam Type Structure - Tall Single Track Cantilever Mast Kit (SET E6-8) 1500v DC OHLE I Beam Type Structure - Tall Single Track Cantilever Mast Kit (SET E6-8)

    1500v DC OHLE I Beam Type Structure - Tall Single Track Cantilever Mast Kit (SET E6-8)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Tall Single Track Cantilever type Mast, Incl. Magnetic Base and Registration Arm,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-8 - product code 4WH0900608Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Tall Single Track Cantilever type Mast, incl. Magnetic Base and Registration Arm, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-8 - product code 4WH0900608 This set E6-8 includes parts to construct One (1) Single Track Cantilever I-Beam Tall type structure. One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. A length of 0.5mm wire is included that may be slotted through the mast end and into the registration arm (once fitted) - the registration arm is included. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E6-8) dimensions:- • Overall height above baseboard (including bases) - 115mm • Overall length of structure (across the tracks) - 75mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arm) - 82mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £6.95

  • 1500v DC OHLE I Beam Type Structure - 2-Track Mast Kit for Wire Supported Registration Arms (SET E6-9) 1500v DC OHLE I Beam Type Structure - 2-Track Mast Kit for Wire Supported Registration Arms (SET E6-9)

    1500v DC OHLE I Beam Type Structure - 2-Track Mast Kit for Wire Supported Registration Arms (SET E6-9)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Mast type, incl. Magnetic Bases, Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.This kit is suitable for fitting Wire Supported Type Registration Arms (not included) which may be purchased separately if desired.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-9 - product code 4WH0900609Detailed Overhead Line Equipment Structure Kit – 1500vDC I-Beam Mast type, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-9 - product code 4WH0900609 This set E6-9 includes parts to construct One (1) I-Beam type OHLE structure that has a span to cater for up to 2 (two) tracks.  Two Mast Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - This kit is suitable for fitting Wire Supported Type Registration Arms (not included) which may be purchased separately if desired. The special Registration Arms and Tall Catenary Wire Supports set for E6-9 is available to Purchase Separately as follows:- • SET E6-15 - Two Single Wire Supported Type Registration Arms and two Tall Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900615 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E6-9) dimensions:- • Overall height above baseboard (including bases) - 115mm • Overall length of structure (across the tracks) - 196mm • Nominal Span distance between inner edge of Bases - 170mm • Overall width of structure - 14mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 79mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £8.95

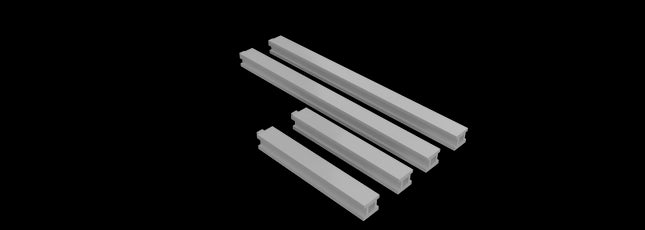

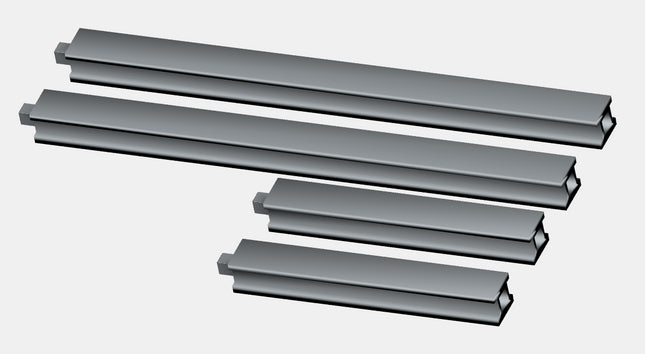

  • 1500v DC OHLE I Beam Type - 2 x 30mm and 2 x 60mm Span Extension Beams (SET E6-10) 1500v DC OHLE I Beam Type - 2 x 30mm and 2 x 60mm Span Extension Beams (SET E6-10)

    1500v DC OHLE I Beam Type - 2 x 30mm and 2 x 60mm Span Extension Beams (SET E6-10)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment 1500vDC I-Beam Extension Beams.2 x 30mm and 2 x 60mm I BeamsPLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-10 - product code 4WH0900610Detailed Overhead Line Equipment 1500vDC I-Beam Extension Beams. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-10 - product code 4WH0900610 This set E6-10 includes parts to extend the across-track span of 1500vDC I-Beam type OHLE kits E6-1, E6-2, E6-3, E6-4, E6-5 and E6-6. The kit consists of:- - 2 (two) x 30mm Extension I Beams - 2 (two) x 60mm Extension I Beams PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arm and Catenary Wire Support options available to Purchase Separately are as follows:- • SET E6-11 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900611 • SET E6-12 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900612 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £3.95

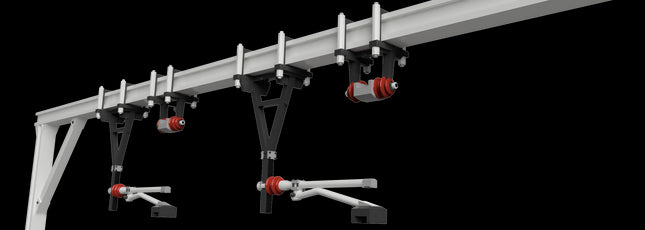

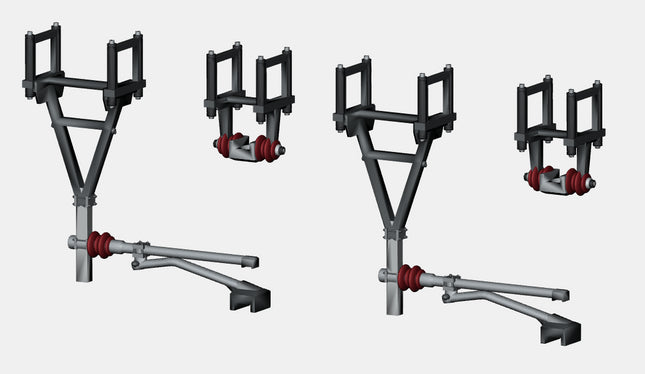

  • 1500v DC OHLE I Beam Type - 2 Single Magnetic Registration Arms and Catenary Wire Supports Kit (SET E6-11) 1500v DC OHLE I Beam Type - 2 Single Magnetic Registration Arms and Catenary Wire Supports Kit (SET E6-11)

    1500v DC OHLE I Beam Type - 2 Single Magnetic Registration Arms and Catenary Wire Supports Kit (SET E6-11)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment 1500vDC I-Beam 2 x Registration Arms and 2 x Catenary Wire Supports (magnetic type) for fitting to I-Beam type OHLE structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-11 - product code 4WH0900611Detailed Overhead Line Equipment 1500vDC I-Beam Registration Arms and Catenary Wire Supports (magnetic type) for fitting to I-Beam type OHLE structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-11 - product code 4WH0900611 This set E6-11 includes parts designed specifically to fit to 1500vDC I-Beam type OHLE kits E6-1, E6-2, E6-3, E6-4, E6-5 and E6-6. The kit consists of:- - Two (2) Single Type Registration Arms (magnetic type) - Two (2) Catenary Wire Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. Also available to Purchase Separately are as follows:- • SET E6-12 - One Double Type Registration Arm and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900612 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £5.49

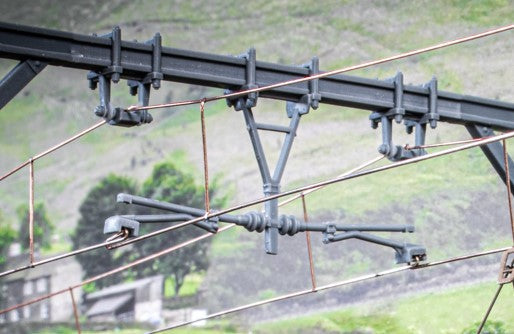

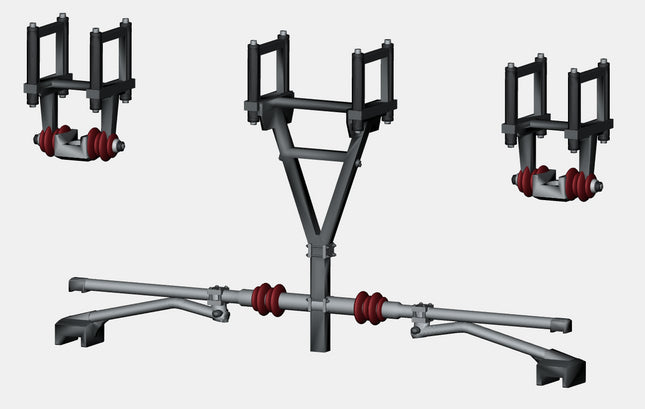

  • 1500v DC OHLE I Beam Type - 1 Double Magnetic Registration Arm and Catenary Wire Supports Kit (SET E6-12) 1500v DC OHLE I Beam Type - 1 Double Magnetic Registration Arm and Catenary Wire Supports Kit (SET E6-12)

    1500v DC OHLE I Beam Type - 1 Double Magnetic Registration Arm and Catenary Wire Supports Kit (SET E6-12)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment 1500vDC I-Beam 1 x Double Registration Arm and 2 x Catenary Wire Supports (magnetic type) for fitting to I-Beam type OHLE structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-12 - product code 4WH0900612Detailed Overhead Line Equipment 1500vDC I-Beam Double Registration Arm and Catenary Wire Supports (magnetic type) for fitting to I-Beam type OHLE structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-12 - product code 4WH0900612 This set E6-12 includes parts designed specifically to fit to 1500vDC I-Beam type OHLE kits E6-1, E6-2, E6-3, E6-4, E6-5 and E6-6. The kit consists of:- - One (1) Double Type Registration Arm (magnetic type) - Two (2) Catenary Wire Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. Also available to Purchase Separately are as follows:- • SET E6-11 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900611 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £4.95

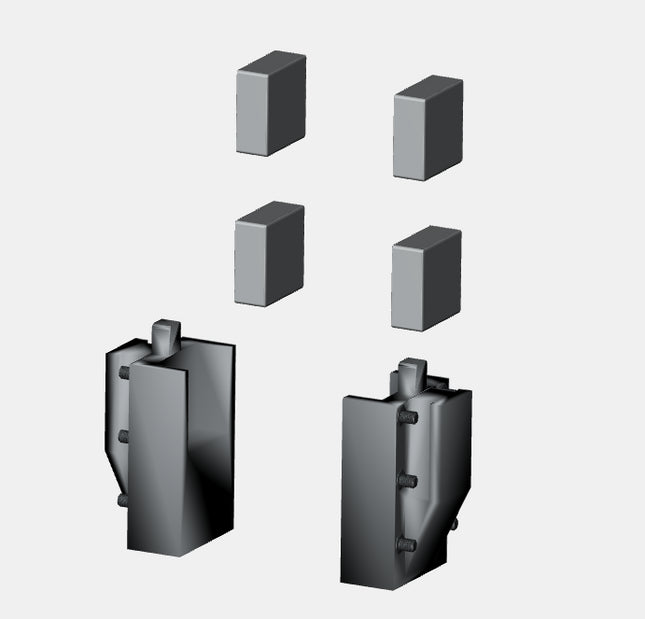

  • 1500v DC OHLE I Beam Type - 2 Viaduct Mast Bases Kit (SET E6-13) 1500v DC OHLE I Beam Type - 2 Viaduct Mast Bases Kit (SET E6-13)

    1500v DC OHLE I Beam Type - 2 Viaduct Mast Bases Kit (SET E6-13)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment Additional Special Viaduct Side Fitting Bases designed for 1500vDC I-Beam Viaduct Type structure kit E6-4 (magnetic type).PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-13 - product code 4WH0900613Detailed Overhead Line Equipment Additional Special Viaduct Side Fitting Bases designed for 1500vDC I-Beam Viaduct Type structure kit E6-4 (magnetic type). PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-13 - product code 4WH0900613 This set E6-13 includes additional / spare Base parts and Magnets designed to fit to 1500vDC I-Beam type OHLE structure kit E6-4. The kit consists of:- - Two (2) Special Viaduct Side Mount Bases, with four magnets to fit into the bases and OHLE structure. Note the OHLE structure is not included in this kit, please use E6-4 – Product Code 4WH0900604. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £2.95

  • 1500v DC OHLE I Beam Type - 2 Single Wire Supported Magnetic Registration Arms Kit (SET E6-15) 1500v DC OHLE I Beam Type - 2 Single Wire Supported Magnetic Registration Arms Kit (SET E6-15)

    1500v DC OHLE I Beam Type - 2 Single Wire Supported Magnetic Registration Arms Kit (SET E6-15)

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment 1500vDC I-Beam Type Wire Supported Registration Arms and Catenary Wire Supports (magnetic type)This kit is for fitting to I-Beam Type OHLE structure kit E6-9.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-15 - product code 4WH0900615Detailed Overhead Line Equipment 1500vDC I-Beam Type Wire Supported Registration Arms and Catenary Wire Supports (magnetic type) for fitting to I-Beam Type OHLE structure kit E6-9. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E6-15 - product code 4WH0900615 This set E6-15 includes parts designed specifically to fit to 1500vDC I-Beam Type OHLE structure kit E6-9; the Wire Supported Registration Arms slot onto the wire rod. The wire rod is then slotted into the holes in the OHLE structure. The kit consists of:- - Two (2) Single Type Wire Supported Registration Arms (magnetic type) - Two (2) Tall Catenary Wire Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. - Length of 0.5mm wire rod All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £5.49

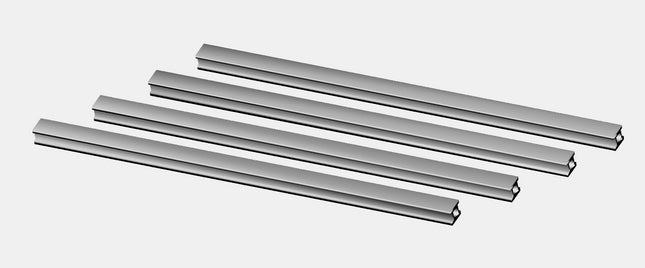

  • 1500v DC OHLE I Beam Type - Alternative Span Beams for 145mm Viaducts (SET E6-16) Pack of 4

    1500v DC OHLE I Beam Type - Alternative Span Beams for 145mm Viaducts (SET E6-16) Pack of 4

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment - Alternative I-Beams designed for use with the 1500vDC I-Beam Viaduct Type structure kit E6-4.Pack of 4 I-Beams that allow construction of your Viaduct Structures to cater for Viaducts of 145mm width.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-16 - product code 4WH0900616Detailed Overhead Line Equipment - Alternative I-Beams designed for use with the 1500vDC I-Beam Viaduct Type structure kit E6-4. (Pack of 4) PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW One of these I-Beam parts is fitted to an E6-4 Structure Kit during assembly (structure kit not included) to increase the with of the Viaduct Structures to be 145mm in width.  OO Gauge SET E6-16 - product code 4WH0900616 This set E6-16 includes Four (4) alternative length I-Beams designed to fit to 1500vDC I-Beam type OHLE structure kits E6-4. Note this product is for I-Beams only, the OHLE structure is not included in this kit, please use E6-4 – Product Code 4WH0900604. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £4.45

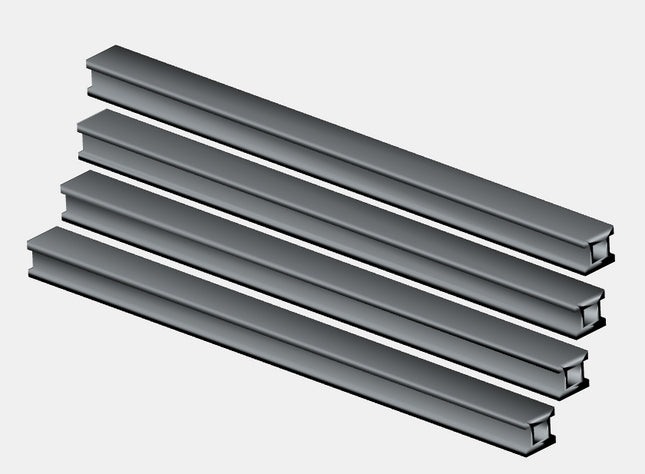

  • 1500v DC OHLE I Beam Type - Single Track Alternative Span Beams (SET E6-17) Pack of 4

    1500v DC OHLE I Beam Type - Single Track Alternative Span Beams (SET E6-17) Pack of 4

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    Detailed Overhead Line Equipment - Alternative I-Beams designed for use with 1500vDC I-Beam type OHLE kits E6-1, E6-2, E6-3 and E6-5.Pack of 4 I-Beams that allow construction of your E6 Type Structures to cater for a Single Track width.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E6-17 - product code 4WH0900617Detailed Overhead Line Equipment - Alternative I-Beams designed for use with 1500vDC I-Beam type OHLE kits E6-1, E6-2, E6-3 and E6-5. (Pack of 4) PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW One of these alternative I-Beam parts is fitted to a Structure Kit during assembly (structure kit not included) to reduce the with of the Structure as follows:-  When an E6-17 I Beam is fitted to Structure Kits E6-1 & E6-3, then the overall span is reduced from 170mm to 105mm. When an E6-17 I Beam is fitted to Structure Kit E6-2, then the overall span is reduced from 130mm to 65mm. When an E6-17 I Beam is fitted to Structure Kit E6-5, then the overall span is reduced from 230mm to 165mm. OO Gauge SET E6-17 - product code 4WH0900617 This set E6-17 includes Four (4) alternative length I-Beams designed to fit to 1500vDC I-Beam type OHLE structure kits E6-1, E6-2, E6-3 and E6-5. Note this product is for I-Beams only, the OHLE structure is not included in this kit. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    In Stock  Shipped By Royal Mail 48 Tracked
    Item Will be Dispatched Using Royal Mail 48 Hour Tracked Service From Dispatch Time

    £3.95

1500v DC OHLE I Beam Catenary OO Gauge (SET E6)

Woodhead 1500v DC OHLE I-Beam Type ( SET E6 )
