1500v DC OHLE I Beam Type - Single Track Alternative Span Beams (SET E6-17) Pack of 4

1500v DC OHLE I Beam Type - Single Track Alternative Span Beams (SET E6-17) Pack of 4

Product form

Detailed Overhead Line Equipment - Alternative I-Beams designed for use with 1500vDC I-Beam type OHLE kits E6-1, E6-2, E6-3 and... Read more

£3.95

    • Guaranteed secure & safe checkout.

      stripe
    • Free UK shipping on all orders above £100

    Description

    Detailed Overhead Line Equipment - Alternative I-Beams designed for use with 1500vDC I-Beam type OHLE kits E6-1, E6-2, E6-3 and E6-5.

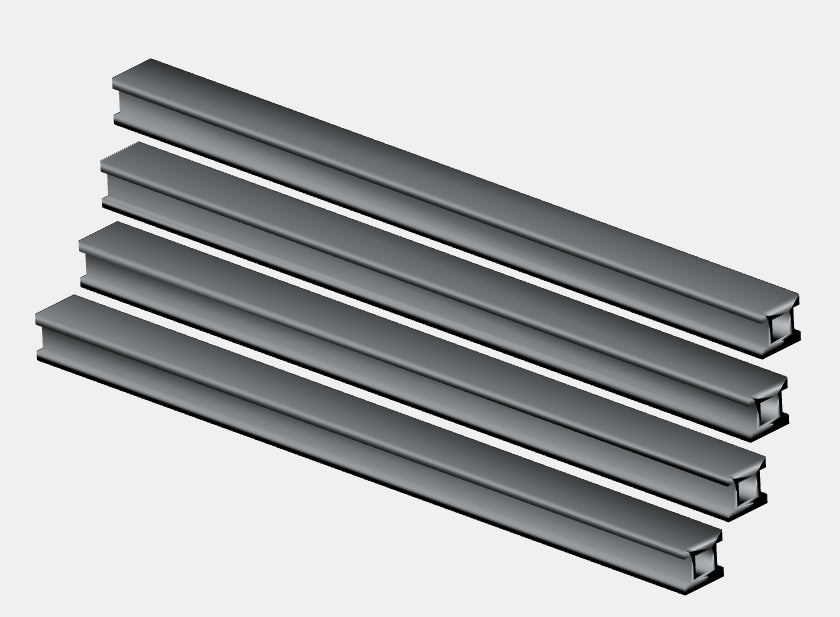

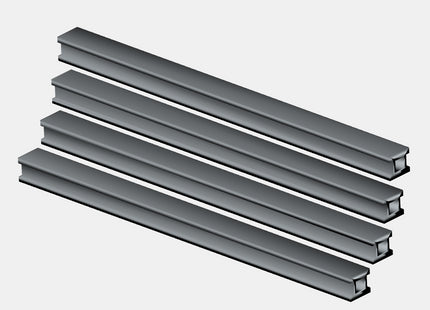

    Pack of 4 I-Beams that allow construction of your E6 Type Structures to cater for a Single Track width.
    PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW
    OO Gauge SET E6-17 - product code 4WH0900617

    Detailed Overhead Line Equipment - Alternative I-Beams designed for use with 1500vDC I-Beam type OHLE kits E6-1, E6-2, E6-3 and E6-5. (Pack of 4)

    PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

    One of these alternative I-Beam parts is fitted to a Structure Kit during assembly (structure kit not included) to reduce the with of the Structure as follows:-

    • When an E6-17 I Beam is fitted to Structure Kits E6-1 & E6-3, then the overall span is reduced from 170mm to 105mm.
    • When an E6-17 I Beam is fitted to Structure Kit E6-2, then the overall span is reduced from 130mm to 65mm.
    • When an E6-17 I Beam is fitted to Structure Kit E6-5, then the overall span is reduced from 230mm to 165mm.

    OO Gauge SET E6-17 - product code 4WH0900617

    This set E6-17 includes Four (4) alternative length I-Beams designed to fit to 1500vDC I-Beam type OHLE structure kits E6-1, E6-2, E6-3 and E6-5.

    Note this product is for I-Beams only, the OHLE structure is not included in this kit.

    All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

    Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

    Specifications

    • Manufacturer: West Hill Wagon Works
