Series 2 Two Track Catenary & Accessories N Gauge (Set E10)
-

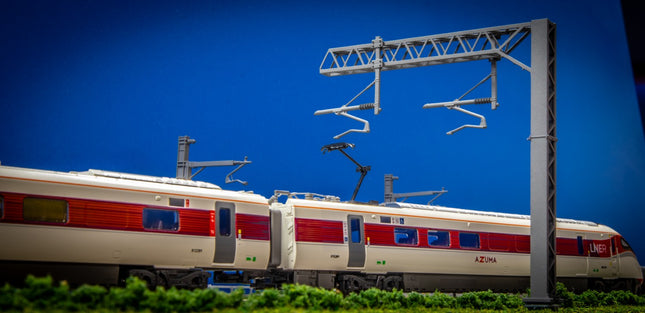

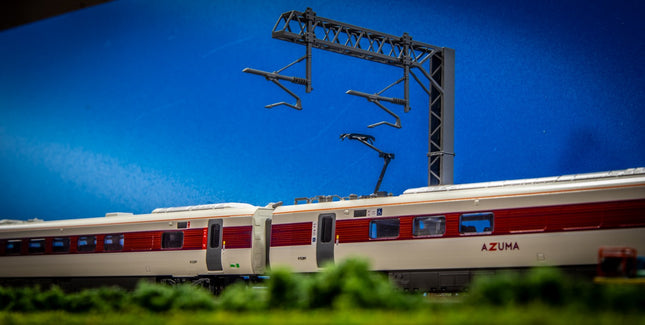

E10-2 - N-Gauge OHLE - SERIES 2 - Two Track Cantilever Mast (67mm Arm) Kit
Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - SERIES 2 - Two Track Cantilever type with 67mm Arm, including Magnetic BaseSET E10-2 - product code 2WH0901002PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed N-Gauge Overhead Line Equipment Mast Structure Kit - SERIES 2 - Two Track Cantilever type with 67mm Arm, including Magnetic BasePLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E10-2 - product code 2WH0901002This set E10-2 includes parts to construct one (1) basic SERIES 2 - Two Track Cantilever Mast structure. One Pile Driven style Base is included in the kit, with magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the SERIES 2 - Two Track Cantilever type OHLE are available to Purchase Separately as follows:- SET E10-3 Left Hand Registration Arm (Series 2) SET E10-4 Right Hand Registration Arm (Series 2) SET E10-5 Left Hand Registration Arm (SERIES 2 magnetic type to allow fitting of Sommerfeldt type OHL wires) note [wires are not included] SET E10-6 Right Hand Registration Arm (SERIES 2 magnetic type to allow fitting of Sommerfeldt type OHL wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.OHLE Structure kit (SET E10-2) dimensions:- Maximum height above baseboard (including base) - 69mm Overall length of structure (across the tracks) - 67mm Max width of structure/base - 8mm Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 43mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.
£3.95
-

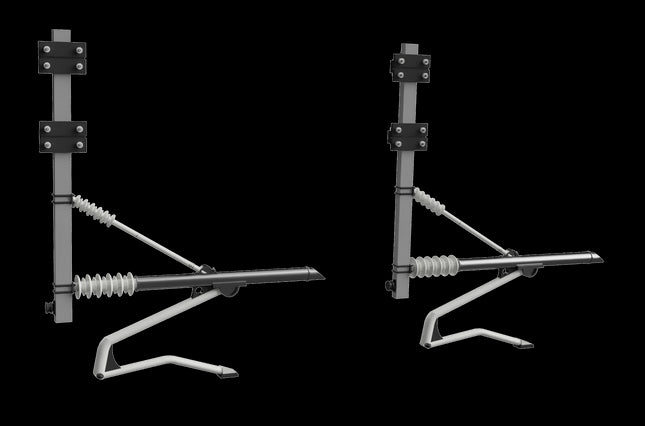

E10-4 - N-Gauge Registration Arms (x2) for SERIES 2 - Two Track Cantilever OHLE - RIGHT HAND
Detailed N-Gauge Overhead Line Equipment 2 x Registration Arms RIGHT HAND for SERIES 2 - Two Track Cantilever type OHLESET E10-4 - product code 2WH0901004REGISTRATION ARMS only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed N-Gauge Overhead Line Equipment 2 x Registration Arms RIGHT HAND for SERIES 2 - Two Track Cantilever type OHLEPLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E10-4 - product code 2WH0901004 This set E10-4 includes TWO (2) Left Handed Registration Arms that are intended for fitting to the SERIES 2 - Two Track Cantilever kits (SETs E10-1 and E10-2).PLEASE NOTE that these registration arms are NOT intended to support the fitting of contact wires. Other types of registration arms for the SERIES 2 - Two Track Cantilever OHLE are available as follows:- SET E10-3 Left Hand Registration Arm (Series 2) SET E10-5 Left Hand Registration Arm (SERIES 2 magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] SET E10-6 Right Hand Registration Arm (SERIES 2 magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.
£1.95
-

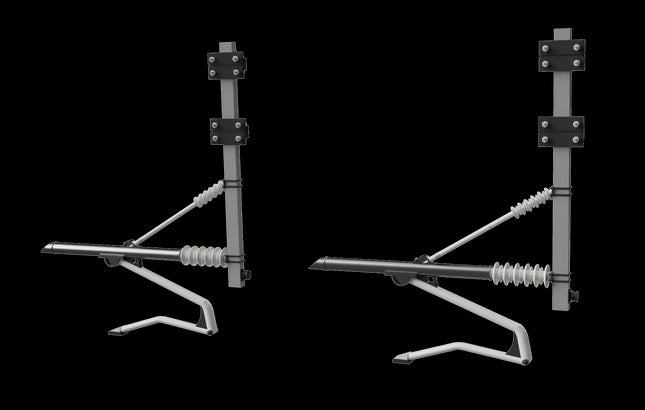

E10-3 - N-Gauge Registration Arms (x2) for SERIES 2 - Two Track Cantilever OHLE - LEFT HAND
Detailed N-Gauge Overhead Line Equipment 2 x Registration Arms LEFT HAND for SERIES 2 - Two Track Cantilever type OHLESET E10-3 - product code 2WH0901003REGISTRATION ARMS only - PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed N-Gauge Overhead Line Equipment 2 x Registration Arms LEFT HAND for SERIES 2 - Two Track Cantilever type OHLEPLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E10-3 - product code 2WH0901003 This set E10-3 includes TWO (2) Left Handed Registration Arms that are intended for fitting to the SERIES 2 - Two Track Cantilever kits (SETs E10-1 and E10-2).PLEASE NOTE that these registration arms are NOT intended to support the fitting of contact wires. Other types of registration arms for the SERIES 2 - Two Track Cantilever OHLE are available as follows:- SET E10-4 Right Hand Registration Arm (Series 2) SET E10-5 Left Hand Registration Arm (SERIES 2 magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] SET E10-6 Right Hand Registration Arm (SERIES 2 magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.
£1.95
-

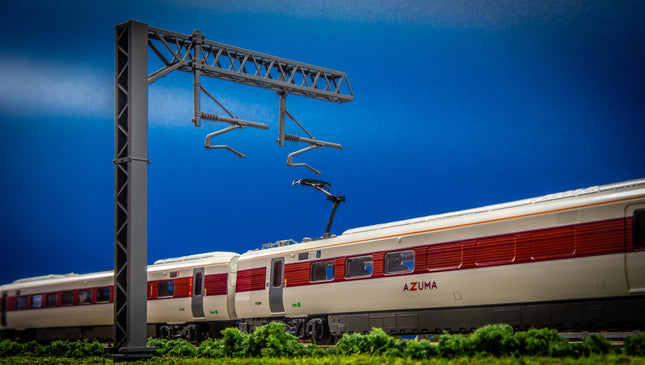

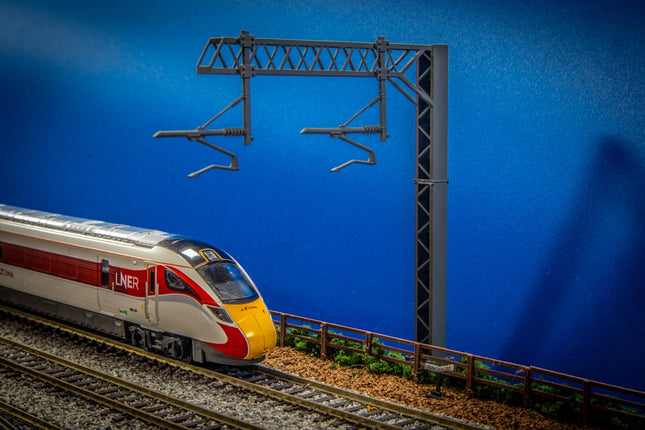

E10-1 - N-Gauge OHLE - SERIES 2 - Two Track Cantilever Mast (59mm Arm) Kit
Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - SERIES 2 - Two Track Cantilever type with 59mm Arm, including Magnetic BaseSET E10-1 - product code 2WH0901001PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed N-Gauge Overhead Line Equipment Mast Structure Kit - SERIES 2 - Two Track Cantilever type with 59mm Arm, including Magnetic Base9PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E10-1 - product code 2WH0901001This set E10-1 includes parts to construct one (1) basic SERIES 2 - Two Track Cantilever Mast structure. One Pile Driven style Base is included in the kit, with magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the SERIES 2 - Two Track Cantilever type OHLE are available to Purchase Separately as follows:- SET E10-3 Left Hand Registration Arm (Series 2) SET E10-4 Right Hand Registration Arm (Series 2) SET E10-5 Left Hand Registration Arm (SERIES 2 magnetic type to allow fitting of Sommerfeldt type OHL wires) note [wires are not included] SET E10-6 Right Hand Registration Arm (SERIES 2 magnetic type to allow fitting of Sommerfeldt type OHL wires) note [wires are not included] All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.OHLE Structure kit (SET E10-1) dimensions:- Maximum height above baseboard (including base) - 69mm Overall length of structure (across the tracks) - 59mm Max width of structure/base - 8mm Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 43mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.
£3.95
