1500v DC OHLE A-Frame Catenary OO Gauge (SET E8)

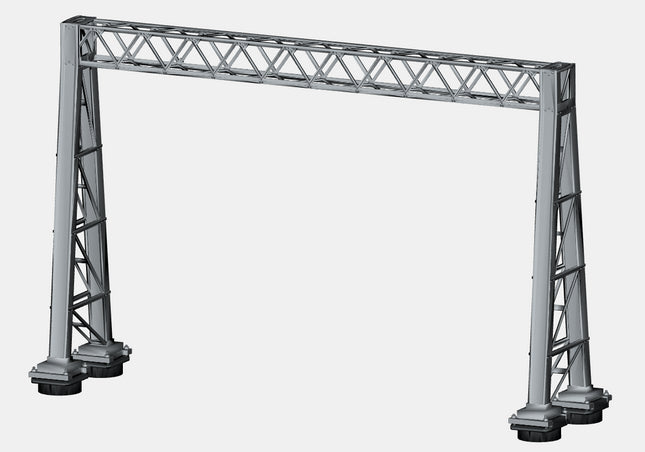

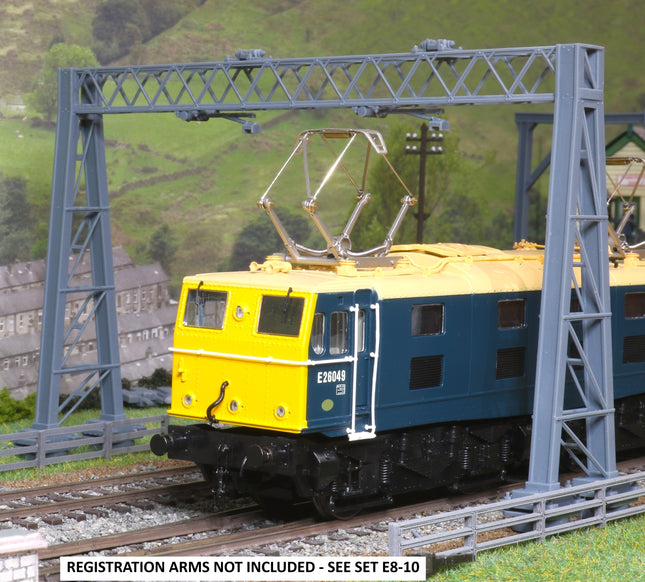

Detailed Overhead Line Equipment Structure Kit – 1500vDC A-Frame type 2-Track structure, incl. Magnetic Bases,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E8-1 - product code 4WH0900801Detailed Overhead Line Equipment Structure Kit – 1500vDC A-Frame type structure, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E8-1 - product code 4WH0900801 This set E8-1 includes parts to construct One (1) detailed A-Frame type structure that has a span to cater for up to 2 (two) tracks.  Four Mast Bases are included in the kit, with four magnets to fit into the two of the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arms and Catenary Wire Supports for the A-Frame type Structure available to Purchase Separately are as follows:- • SET E8-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E8-1) dimensions:- • Overall height above baseboard (including bases) - 103mm • Overall length of structure (across the tracks) - 156mm • Nominal Span distance between inner edge of Bases - 130mm • Overall width of structure - 40mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 83mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

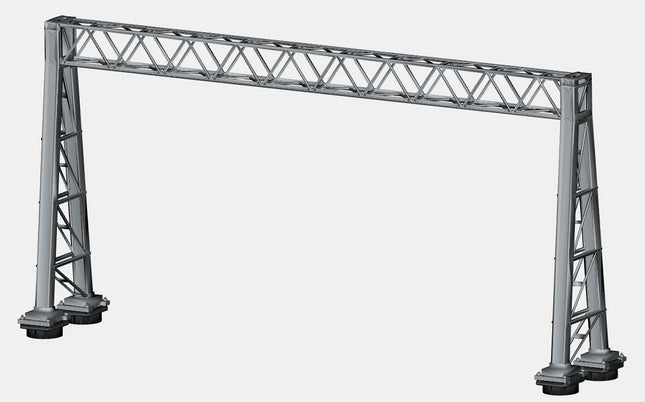

Detailed Overhead Line Equipment Structure Kit – 1500vDC A-Frame type 4-Track structure, incl. Magnetic Bases,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E8-2 - product code 4WH0900802Detailed Overhead Line Equipment Structure Kit – 1500vDC A-Frame type structure, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E8-2 - product code 4WH0900802 This set E8-2 includes parts to construct One (1) detailed A-Frame type structure that has a span to cater for up to 4 (four) tracks.  Four Mast Bases are included in the kit, with four magnets to fit into the two of the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arms and Catenary Wire Supports for the A-Frame type Structure available to Purchase Separately are as follows:- • SET E8-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E8-2) dimensions:- • Overall height above baseboard (including bases) - 103mm • Overall length of structure (across the tracks) - 256mm • Nominal Span distance between inner edge of Bases - 230mm • Overall width of structure - 40mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 83mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

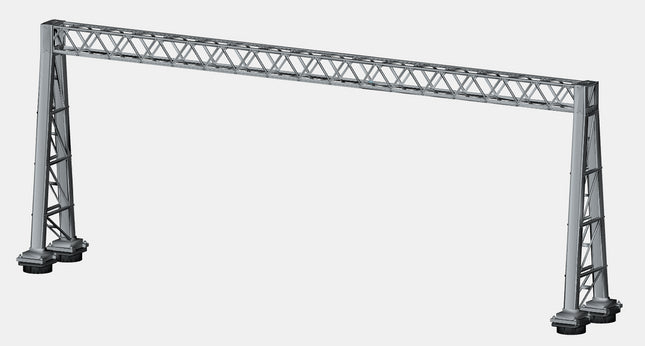

Detailed Overhead Line Equipment Structure Kit – 1500vDC A-Frame type 3-Track Tall structure, incl. Magnetic Bases,Typical of a type fitted to the Woodhead and Great Eastern Main Line routes.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E8-3 - product code 4WH0900803Detailed Overhead Line Equipment Structure Kit – 1500vDC A-Frame type structure, incl. Magnetic Bases, typical of a type fitted to the Woodhead and Great Eastern Main Line routes. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E8-3 - product code 4WH0900803 This set E8-3 includes parts to construct One (1) detailed A-Frame Tall type structure that has a span to cater for up to 3 (three) tracks.  Four Mast Bases are included in the kit, with four magnets to fit into the two of the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout. PLEASE NOTE - the registration arms are NOT included and should be purchased separately. Registration Arms and Catenary Wire Supports for the A-Frame type Structure available to Purchase Separately are as follows:- • SET E8-10 - Two Single Type Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0900710 All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves. The Peco wires are available in the following lengths 200mm, 260mm, 340mm, 380mm and 500mm, so if you are fitting wires then it makes sense to space your masts to suit the Peco wire lengths. [wires are not included in this kit] OHLE Structure kit (SET E8-3) dimensions:- • Overall height above baseboard (including bases) - 106mm • Overall length of structure (across the tracks) - 206mm • Nominal Span distance between inner edge of Bases - 180mm • Overall width of structure - 40mm • Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 83mm above baseboard [wires not included] Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

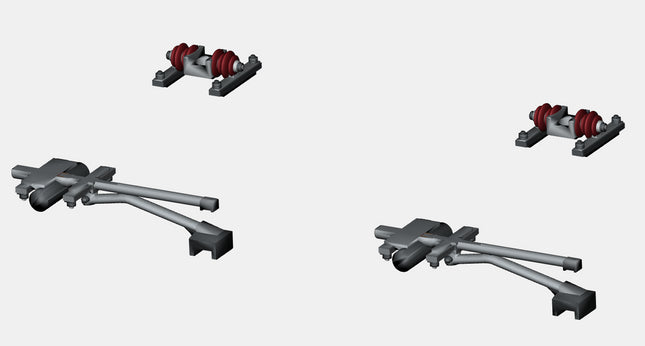

Detailed Overhead Line Equipment 1500vDC A-Frame Type Registration Arms and Catenary Wire Supports (magnetic type)For fitting to A-Frame type OHLE structure kits.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWOO Gauge SET E8-10 - product code 4WH0900810Detailed Overhead Line Equipment 1500vDC A-Frame Type Registration Arms and Catenary Wire Supports (magnetic type) for fitting to A-Frame type OHLE structure kits. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW OO Gauge SET E8-10 - product code 4WH0900810 This set E8-10 includes parts designed specifically to fit to 1500vDC A-Frame type OHLE kits E8-1 and E8-2. The kit consists of:- - Two (2) Single Type Registration Arms (magnetic type) - Two (2) Catenary Wire Supports (magnetic type) - Six (6) Magnets (4 + 2 spare) for fitting into the registration arms and catenary wire supports which will allow fitting of Peco type OHL wires. Note - the Peco wires are not included. All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included. Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.
