Mk1 OHLE Catenary N Gauge (Set E11)

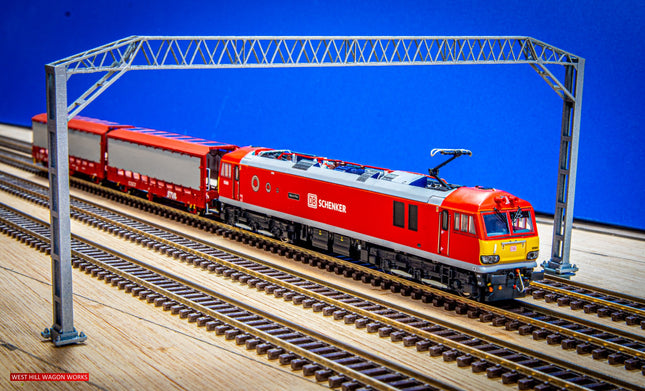

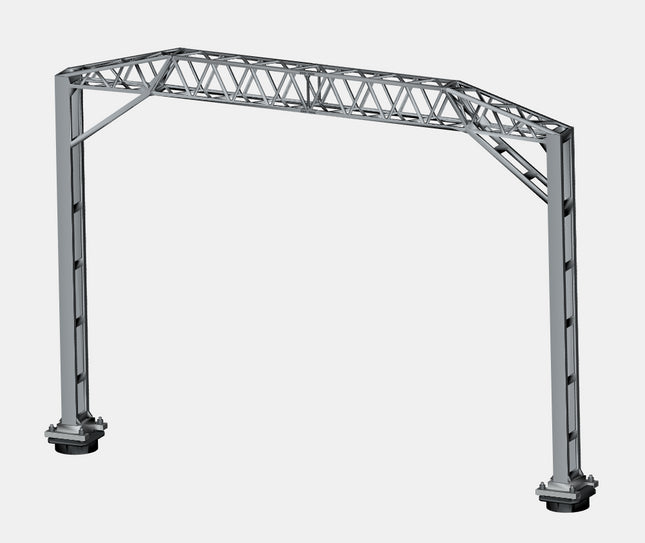

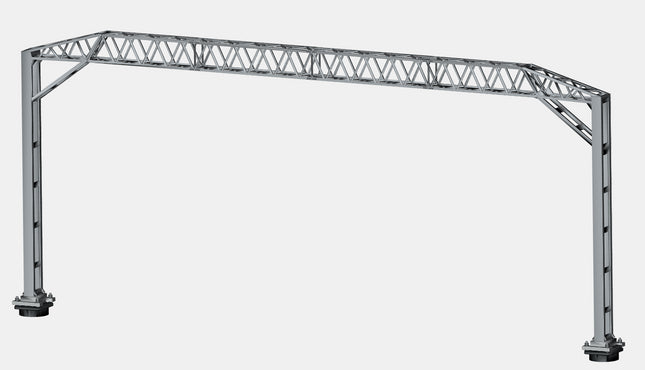

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - Mk1 Type A Structure Kit with 75mm Span for up to 2 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-1 - product code 2WH0901101This set E11-1 includes parts to construct one (1) Mk1 Type A structure for up to 2 Tracks (2 Masts, 2 Bases and 1 Span section).  The two Pile Driven style Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:- SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105 All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.OHLE Structure kit (SET E11-1) dimensions:- Maximum height above baseboard (including base) - 65mm Overall length of structure (across the tracks) - 91mm Max width of structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - Mk1 Type A Structure Kit with 135mm Span for up to 4 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-2 - product code 2WH0901102This set E11-2 includes parts to construct one (1) Mk1 Type A structure for up to 4 Tracks (2 Masts, 2 Bases and 1 Span section).  The two Pile Driven style Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:- SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105 All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.OHLE Structure kit (SET E11-2) dimensions:- Maximum height above baseboard (including base) - 65mm Overall length of structure (across the tracks) - 149mm Max width of structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

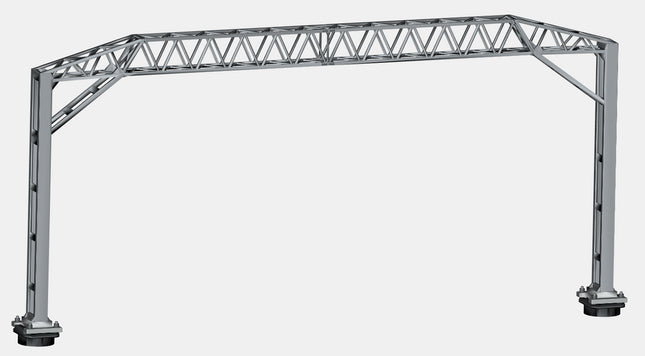

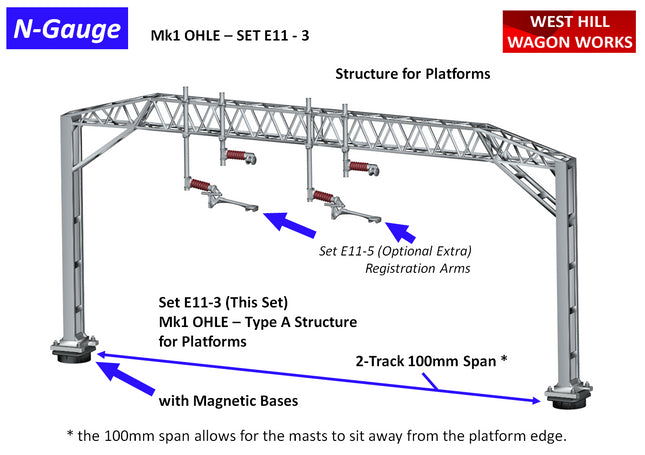

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - Mk1 Type A Platform Structure Kit with 100mm Span for up to 2 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line.SET E11-3 - product code 2WH0901103PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed N-Gauge Overhead Line Equipment Portal Structure Kit - Mk1 Type A Platform Structure Kit with 100mm Span for up to 2 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-3 - product code 2WH0901103This set E11-3 includes parts to construct one (1) Mk1 Type A Platform structure for up to 2 Tracks (2 Masts, 2 Bases and 1 Span section).  The two Mast Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:- SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105 All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.OHLE Structure kit (SET E11-3) dimensions:- Maximum height above your platform (including base) - 55mm Overall length of structure (across the tracks) - 115mm Max width of structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

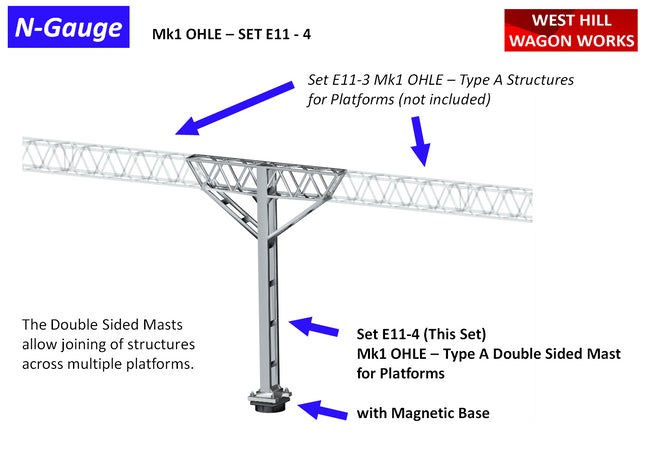

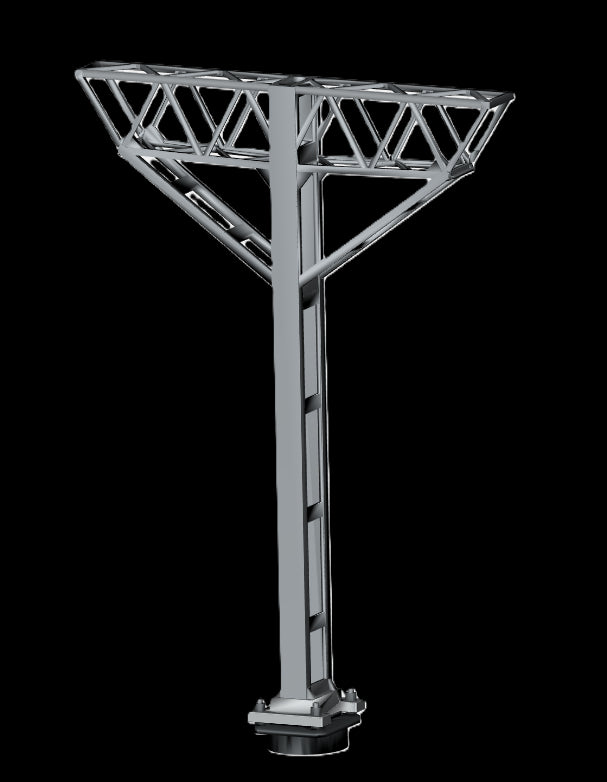

Detailed N-Gauge Overhead Line Equipment Mast Kit - Mk1 Type A Platform Double Sided Mast Kit, including Magnetic Base (for use with structure kit E11-3) Typical of the style fitted on the West Coast Main Line.SET E11-4 - product code 2WH0901104PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed N-Gauge Overhead Line Equipment Mast Kit - Mk1 Type A Platform Double Sided Mast Kit, including Magnetic Base.This Double Sided Mast is designed specifically to be used between E11-3 structure kits to create an OHLE structure across multiple platforms. Typical of the style fitted on the West Coast Main Line. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-4 - product code 2WH0901104This set E11-4 includes parts to construct one (1) Mk1 Type A Platform Double Sided Mast (1 Mast, 1 Base).The Mast Base included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.OHLE Structure kit (SET E11-4) dimensions:- Maximum height above your platform (including base) - 55mm Overall length of mast (across the tracks) - 37mm Max width of structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

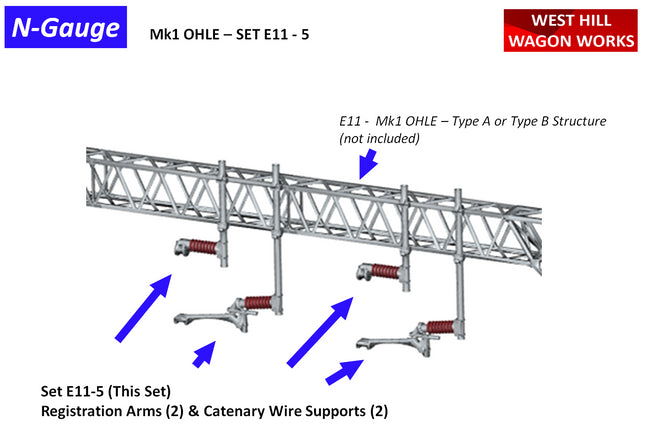

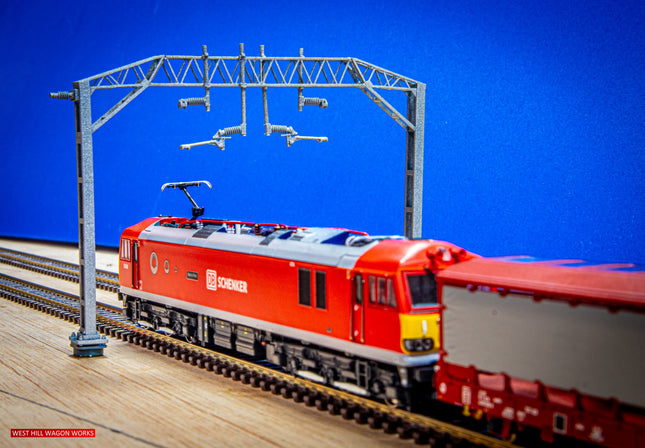

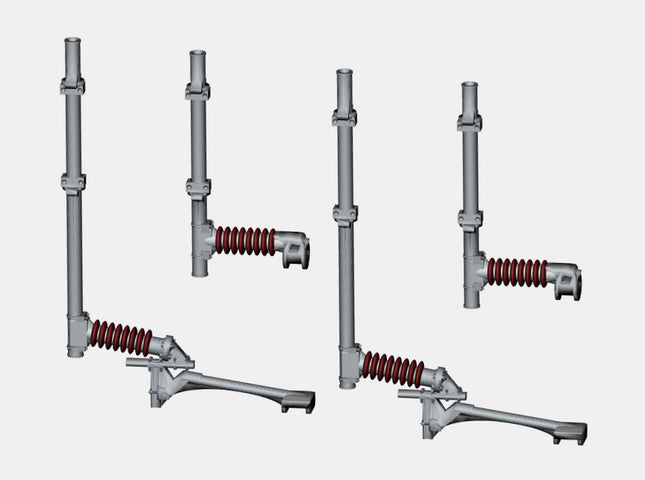

Detailed N-Gauge Overhead Line Equipment - Registration Arms and Catenary Wire Supports for Mk1 Type A or Type B Structures Typical of the style fitted on the West Coast Main Line.SET E11-5 - product code 2WH0901105PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWThis set is specifically designed to be used with our Mk1 OHLE structure kits E11-1, E11-2, E11-11 and E11-12 (not included).This set E11-5 includes the following parts:- - Two (2) Registration Arms  - Two (2) Catenary Wire Supports The parts are fitted to the side of the span of your assembled Mk1 OHLE Structure and may need to be attached with a very small spot of glue. All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

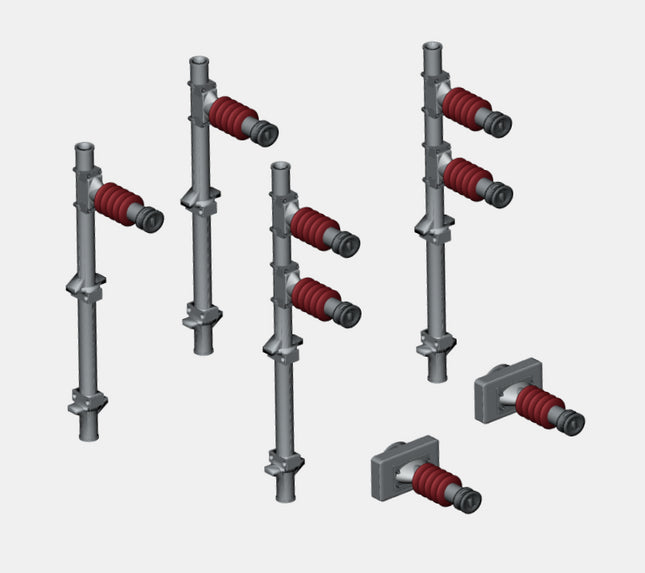

Detailed N-Gauge Overhead Line Equipment - Set of 6 Return Conductor Wire Supports for Mk1 Type A or Type B Structures Typical of the style fitted on the West Coast Main Line.SET E11-6 - product code 2WH0901106PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW This set is specifically designed to be used with our Mk1 OHLE structure kits E11-1, E11-2, E11-11 and E11-12 (not included).This set E11-6 includes the following parts:- - Two (2) Single Span Side Mount Return Conductor Supports - Two (2) Double Span Side Mount Return Conductor Supports  - Two (2) Mast End Mount Return Conductor Supports  The parts are fitted to the side of the span or end of the mast of your assembled Mk1 OHLE Structure and may need to be attached with a very small spot of glue. All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

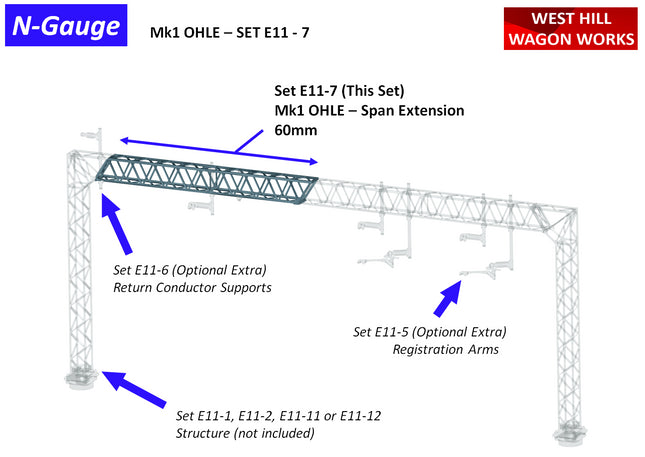

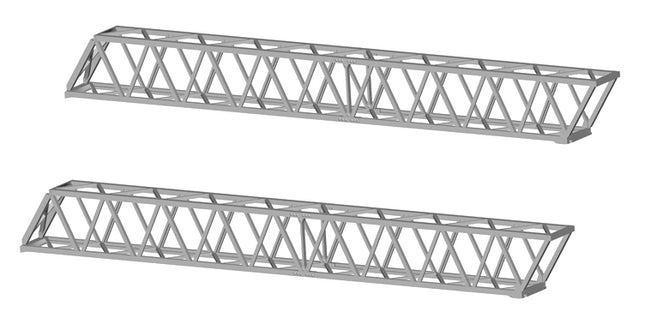

Detailed N-Gauge Overhead Line Equipment - Pack of 2 Span Extensions (60mm) for Mk1 Type A or Type B Structures Typical of the style fitted on the West Coast Main Line.SET E11-7 - product code 2WH0901107PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW This set is specifically designed to be used with our Mk1 OHLE structure kits E11-1, E11-2, E11-11 and E11-12 (not included).This set E11-7 includes the following parts:- - Two (2) Span Extensions (60mm each)  The parts are fitted to the side of the span or end of the mast of your assembled Mk1 OHLE Structure and may need to be attached with a very small spot of glue. All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

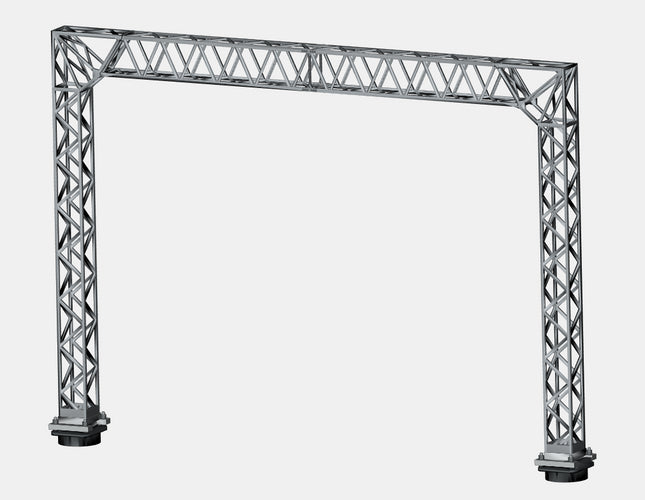

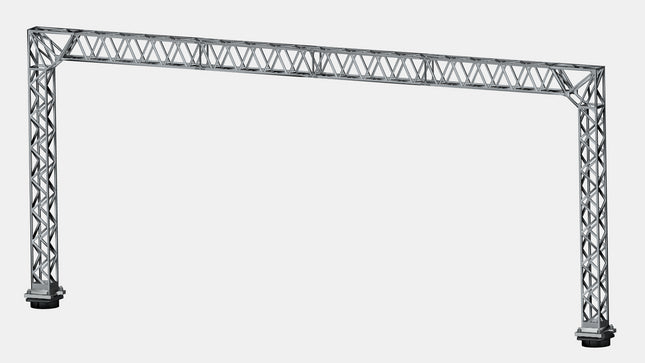

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - Mk1 Type B Structure Kit with Lattice Masts and a 75mm Span for up to 2 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-11 - product code 2WH0901111This set E11-11 includes parts to construct one (1) Mk1 Type A structure for up to 2 Tracks (2 Lattice Masts, 2 Bases and 1 Span section).  The two Pile Driven style Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:- SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105 All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.OHLE Structure kit (SET E11-11) dimensions:- Maximum height above baseboard (including base) - 65mm Overall length of structure (across the tracks) - 91mm Max width of structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

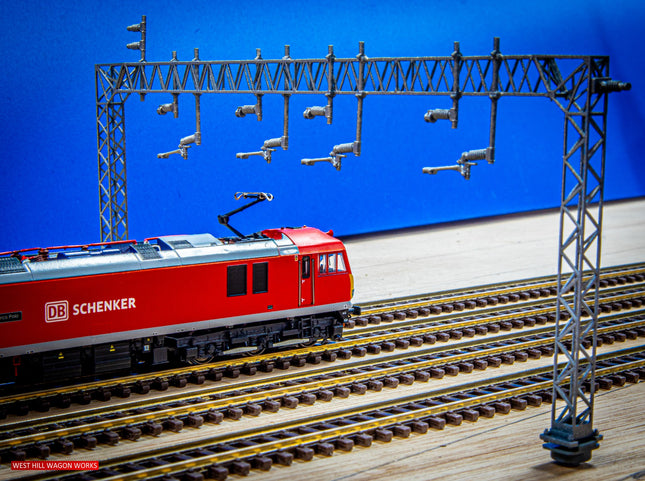

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - Mk1 Type B Structure Kit with Lattice Masts and a 135mm Span for up to 4 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line.SET E11-12 - product code 2WH0901112PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWThis set E11-12 includes parts to construct one (1) Mk1 Type B structure for up to 4 Tracks (2 Lattice Masts, 2 Bases and 1 Span section).  The two Pile Driven style Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:- SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105 All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.OHLE Structure kit (SET E11-12) dimensions:- Maximum height above baseboard (including base) - 65mm Overall length of structure (across the tracks) - 149mm Max width of structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

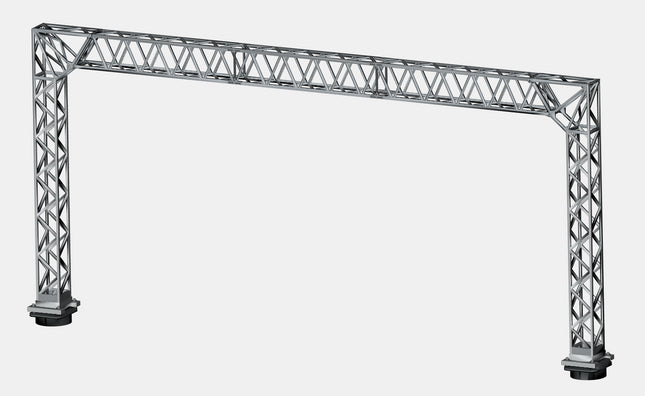

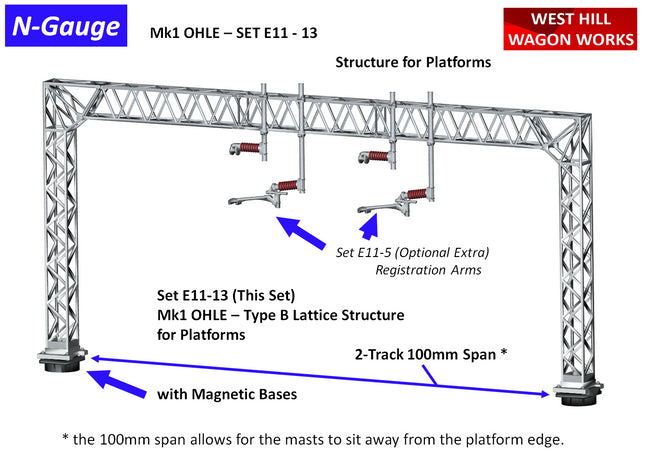

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - Mk1 Type B Platform Lattice Structure Kit with 100mm Span for up to 2 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line.SET E11-13 - product code 2WH0901113PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed N-Gauge Overhead Line Equipment Portal Structure Kit - Mk1 Type B Platform Lattice Structure Kit with 100mm Span for up to 2 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-13 - product code 2WH0901113This set E11-13 includes parts to construct one (1) Mk1 Type B Platform structure for up to 2 Tracks (2 Lattice Masts, 2 Bases and 1 Span section).  The two Mast Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:- SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105 All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.OHLE Structure kit (SET E11-13) dimensions:- Maximum height above your platform (including base) - 55mm Overall length of structure (across the tracks) - 115mm Max width of structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

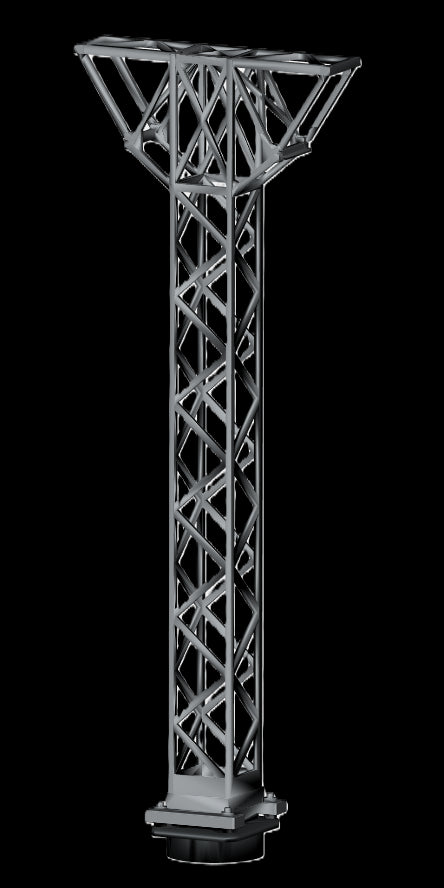

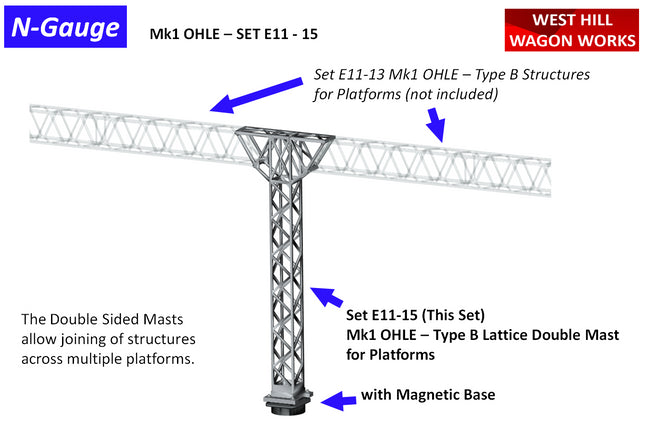

Detailed N-Gauge Overhead Line Equipment Mast Kit - Mk1 Type B Platform Double Sided Lattice Mast Kit, including Magnetic Base (for use with structure kit E11-13) Typical of the style fitted on the West Coast Main Line.SET E11-15 - product code 2WH0901115PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWDetailed N-Gauge Overhead Line Equipment Mast Kit - Mk1 Type B Platform Double Sided Lattice Mast Kit, including Magnetic Base.This Double Sided Mast is designed specifically to be used between E11-13 structure kits to create an OHLE structure across multiple platforms. Typical of the style fitted on the West Coast Main Line. PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-15 - product code 2WH0901115This set E11-15 includes parts to construct one (1) Mk1 Type B Platform Double Sided Mast (1 Mast, 1 Base).The Mast Base included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.OHLE Structure kit (SET E11-15) dimensions:- Maximum height above your platform (including base) - 55mm Overall length of mast (across the tracks) - 19mm Max width of structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

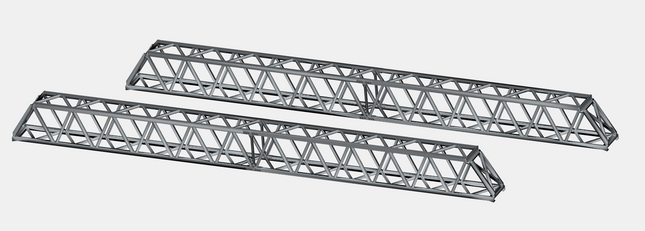

Detailed N-Gauge Overhead Line Equipment - Pack of 2 Additional Spans (78mm) for Mk1 Type A Platform Structures Typical of the style fitted on the West Coast Main Line.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-8 - product code 2WH0901108 This set is specifically designed to be used with our Mk1 OHLE structure kits E11-3 & E11-4 (not included). This set E11-8 includes the following parts:- - Two (2) Spans (78mm each)  All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

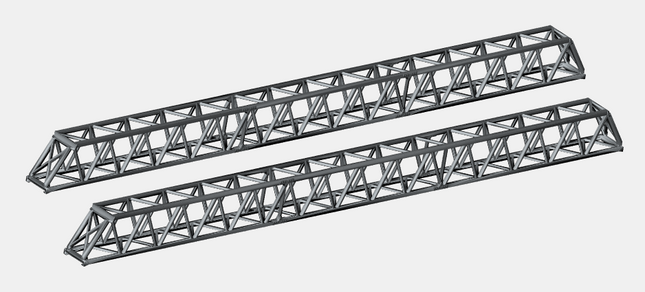

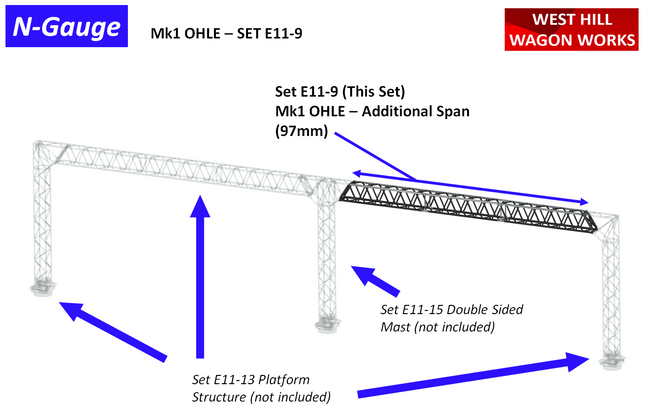

Detailed N-Gauge Overhead Line Equipment - Pack of 2 Additional Spans (97mm) for Mk1 Type B Platform Structures Typical of the style fitted on the West Coast Main Line.PLEASE READ THE FULL PRODUCT DESCRIPTION BELOWN Gauge SET E11-9 - product code 2WH0901109 This set is specifically designed to be used with our Mk1 OHLE structure kits E11-13 & E11-15 (not included). This set E11-9 includes the following parts:- - Two (2) Spans (97mm each)  All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

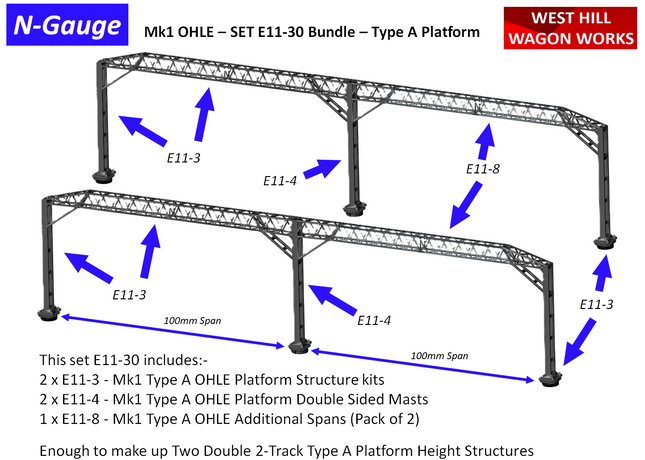

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit BUNDLE BUNDLE includes Mk1 Type A Platform Structure Kits to make up Two Double 100mm Spans for up to 2 x 2 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line.SET E11-30 - product code 2WH0901130PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW and REFER TO THE PICTURES This set E11-30 includes:- 2 x E11-3 - Mk1 Type A OHLE  Platform Structure kits 2 x E11-4 - Mk1 Type A OHLE Platform Double Sided Masts 1 x E11-8 - Mk1 Type A OHLE Additional Spans (x2) The Mast Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:- SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105 All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.OHLE Structure kit (SET E11-30) assembled dimensions:- Maximum height above your platform (including base) - 55mm Overall length of structure (across the tracks) - 224mm Max width of each structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less

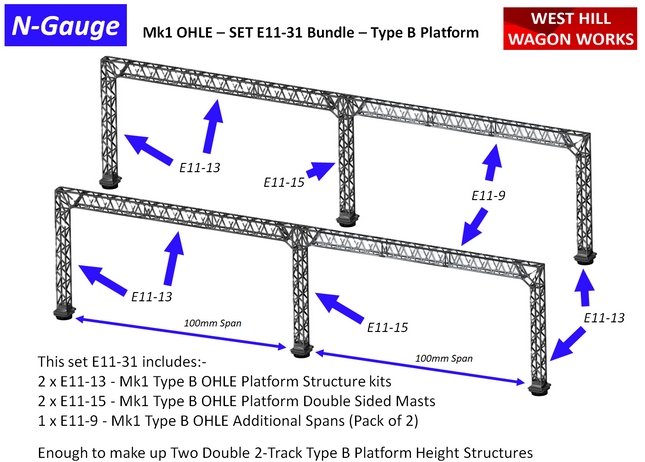

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit BUNDLE BUNDLE includes Mk1 Type B Platform Structure Kits to make up Two Double 100mm Spans for up to 2 x 2 Tracks, including Magnetic Bases Typical of the style fitted on the West Coast Main Line.SET E11-31 - product code 2WH0901131PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW and REFER TO THE PICTURES This set E11-31 includes:- 2 x E11-13 - Mk1 Type B OHLE  Platform Structure kits 2 x E11-15 - Mk1 Type B OHLE Platform Double Sided Masts 1 x E11-9 - Mk1 Type B OHLE Additional Spans (x2) The Mast Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.PLEASE NOTE - the registration arms are NOT included and should be purchased separately.N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:- SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105 All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.OHLE Structure kit (SET E11-31) assembled dimensions:- Maximum height above your platform (including base) - 55mm Overall length of structure (across the tracks) - 224mm Max width of each structure/base - 8mm Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Read more less
