Description

Detailed N-Gauge Overhead Line Equipment Mast Kit - Mk1 Type A Platform Double Sided Mast Kit, including Magnetic Base (for use with structure kit E11-3)

Typical of the style fitted on the West Coast Main Line.

SET E11-4 - product code 2WH0901104

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

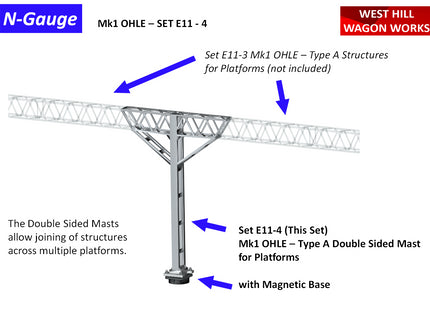

Detailed N-Gauge Overhead Line Equipment Mast Kit - Mk1 Type A Platform Double Sided Mast Kit, including Magnetic Base.

This Double Sided Mast is designed specifically to be used between E11-3 structure kits to create an OHLE structure across multiple platforms.

Typical of the style fitted on the West Coast Main Line.

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

N Gauge SET E11-4 - product code 2WH0901104

This set E11-4 includes parts to construct one (1) Mk1 Type A Platform Double Sided Mast (1 Mast, 1 Base).

The Mast Base included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

PLEASE NOTE - the registration arms are NOT included and should be purchased separately.

All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

OHLE Structure kit (SET E11-4) dimensions:-

• Maximum height above your platform (including base) - 55mm
• Overall length of mast (across the tracks) - 37mm
• Max width of structure/base - 8mm

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
