Description

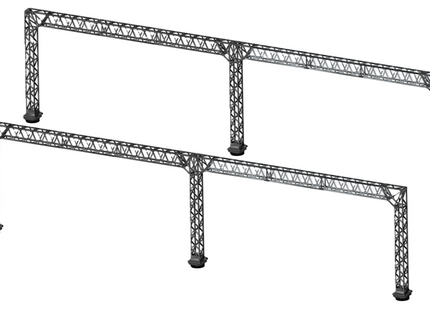

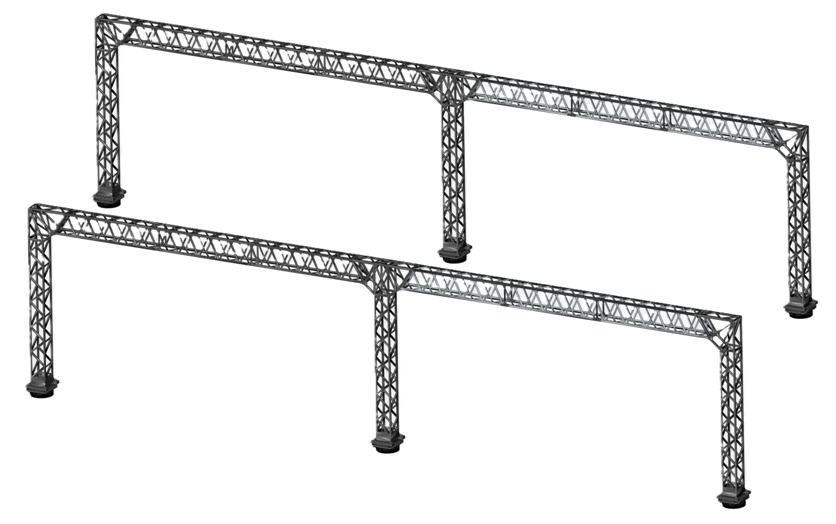

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit BUNDLE

BUNDLE includes Mk1 Type B Platform Structure Kits to make up Two Double 100mm Spans for up to 2 x 2 Tracks, including Magnetic Bases

Typical of the style fitted on the West Coast Main Line.

SET E11-31 - product code 2WH0901131

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW and REFER TO THE PICTURES

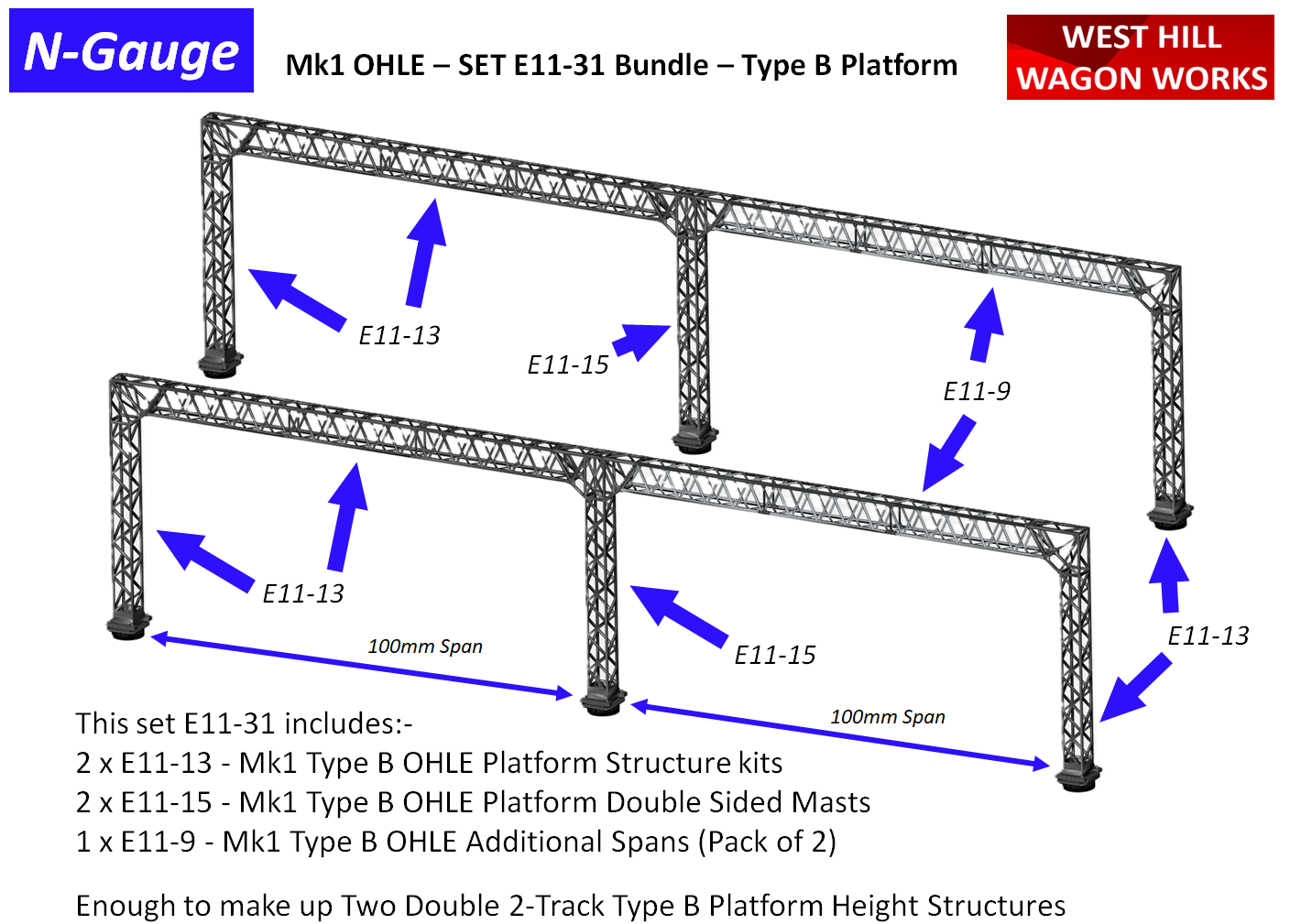

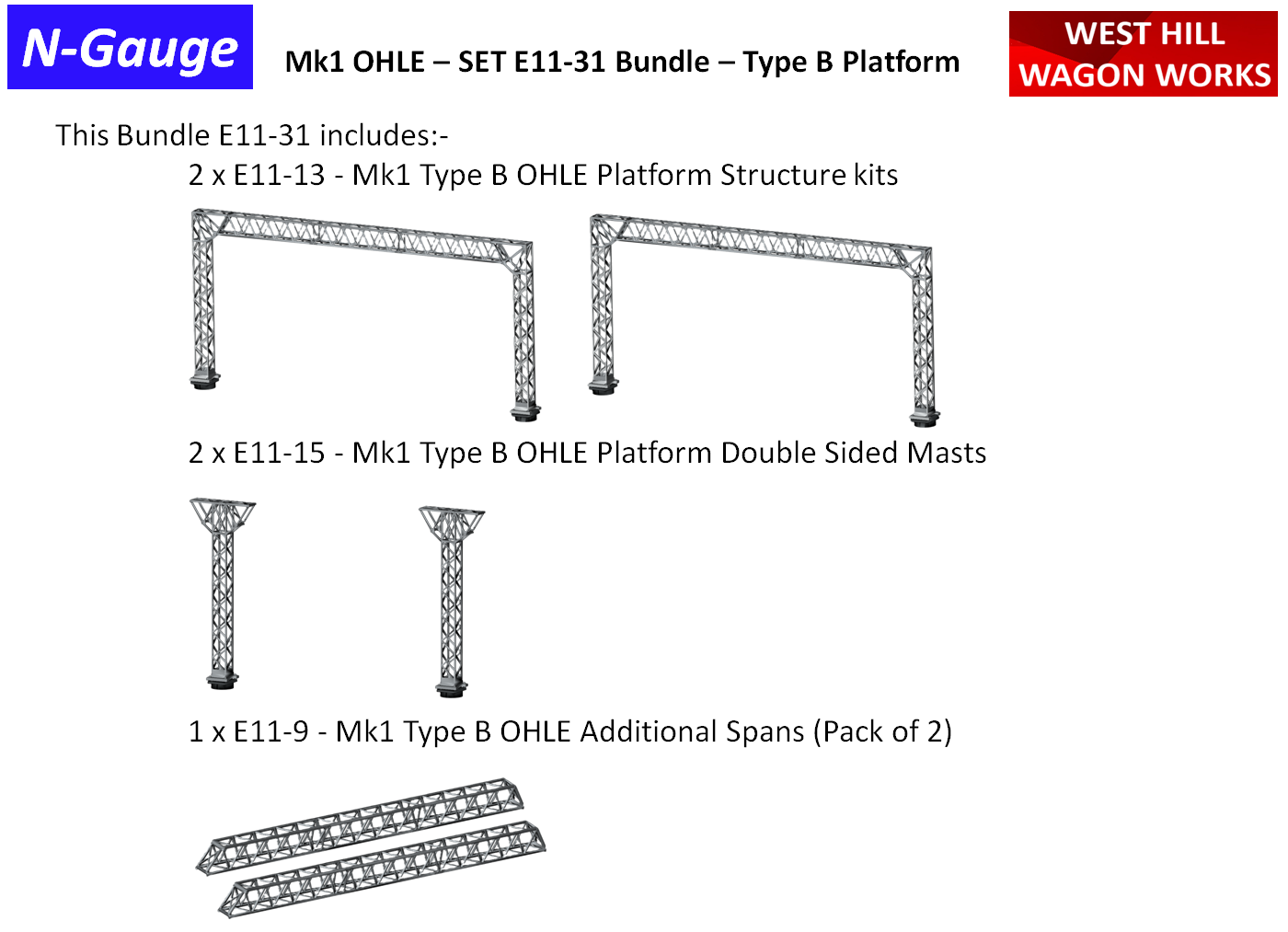

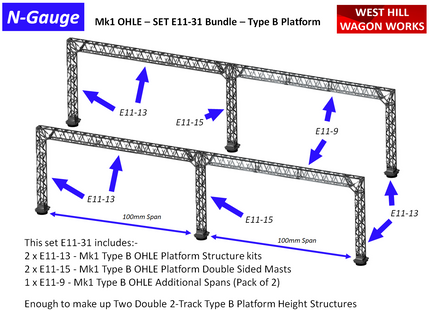

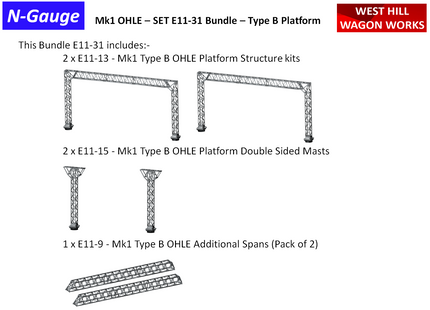

This set E11-31 includes:-

• 2 x E11-13 - Mk1 Type B OHLE  Platform Structure kits
• 2 x E11-15 - Mk1 Type B OHLE Platform Double Sided Masts
• 1 x E11-9 - Mk1 Type B OHLE Additional Spans (x2)

The Mast Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

PLEASE NOTE - the registration arms are NOT included and should be purchased separately.

N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:-

• SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105

All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

OHLE Structure kit (SET E11-31) assembled dimensions:-

• Maximum height above your platform (including base) - 55mm
• Overall length of structure (across the tracks) - 224mm
• Max width of each structure/base - 8mm

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
