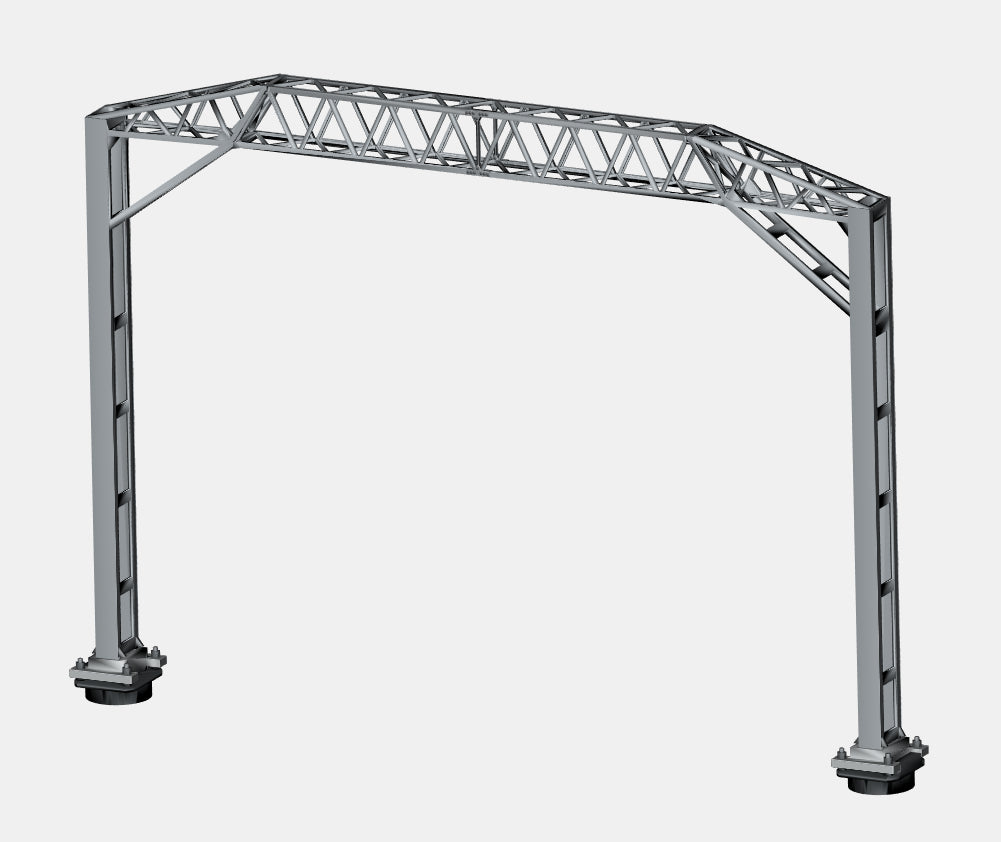

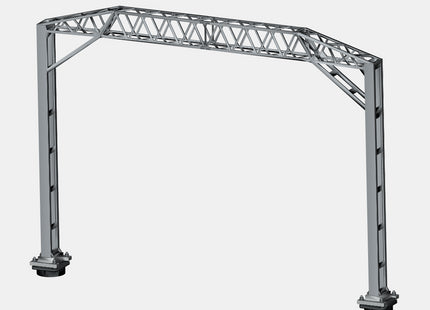

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - Mk1 Type A Structure Kit with 75mm Span for up to 2 Tracks, including Magnetic Bases

Typical of the style fitted on the West Coast Main Line.

SET E11-1 - product code 2WH0901101

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

Detailed N-Gauge Overhead Line Equipment Portal Structure Kit - Mk1 Type A Structure Kit with 75mm Span for up to 2 Tracks, including Magnetic Bases

Typical of the style fitted on the West Coast Main Line.

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

N Gauge SET E11-1 - product code 2WH0901101

This set E11-1 includes parts to construct one (1) Mk1 Type A structure for up to 2 Tracks (2 Masts, 2 Bases and 1 Span section).

The two Pile Driven style Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

PLEASE NOTE - the registration arms are NOT included and should be purchased separately.

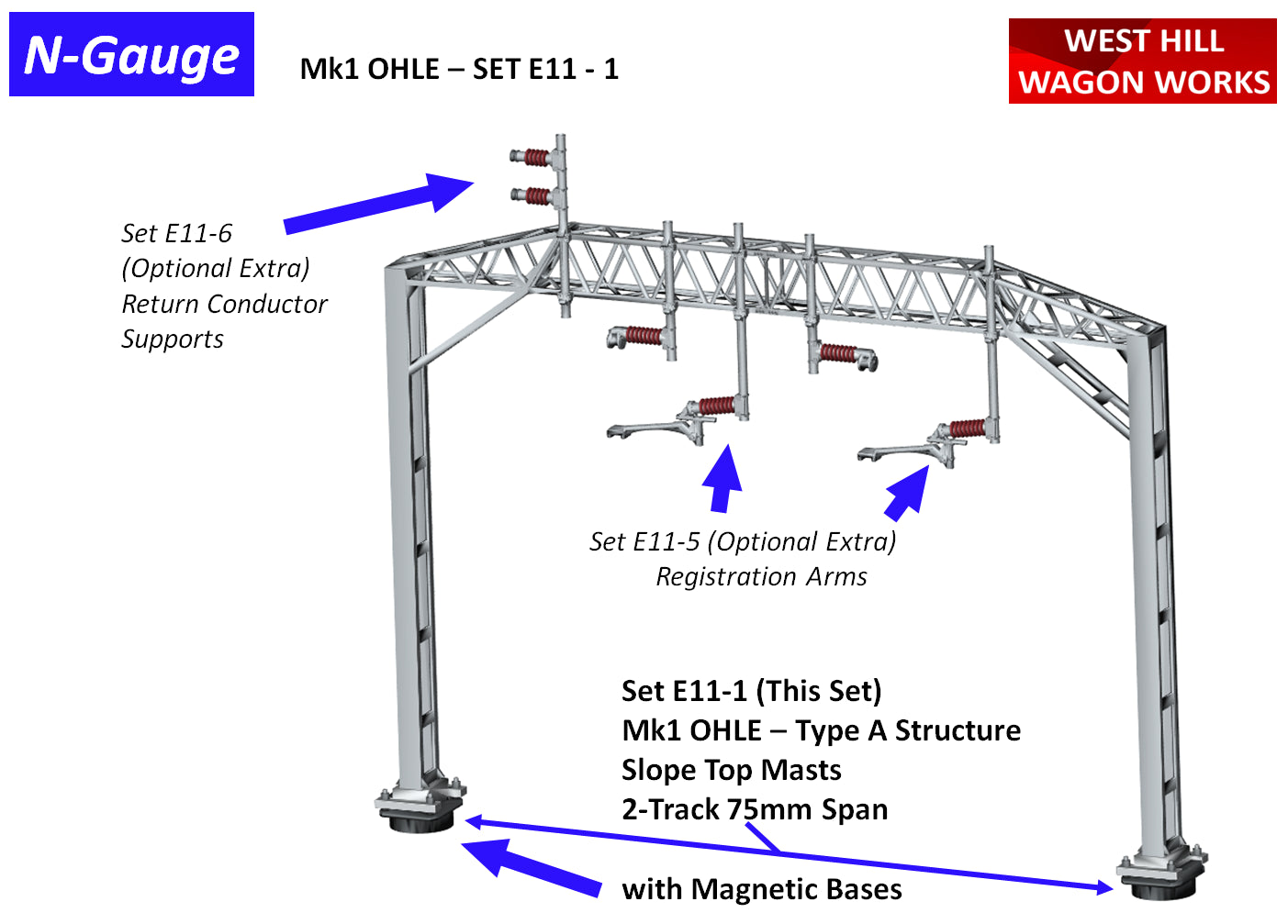

N-Gauge Registration Arm options for the Mk1 Style OHLE are available to Purchase Separately as follows:-

• SET E11-5 - Mk1 Registration Arms and Catenary Wire Supports for Type A & B Structures (SET E11-5) - product code 2WH0901105

All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.

OHLE Structure kit (SET E11-1) dimensions:-

• Maximum height above baseboard (including base) - 65mm
• Overall length of structure (across the tracks) - 91mm
• Max width of structure/base - 8mm

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
