Description

BARGAIN Bundle Pack B1

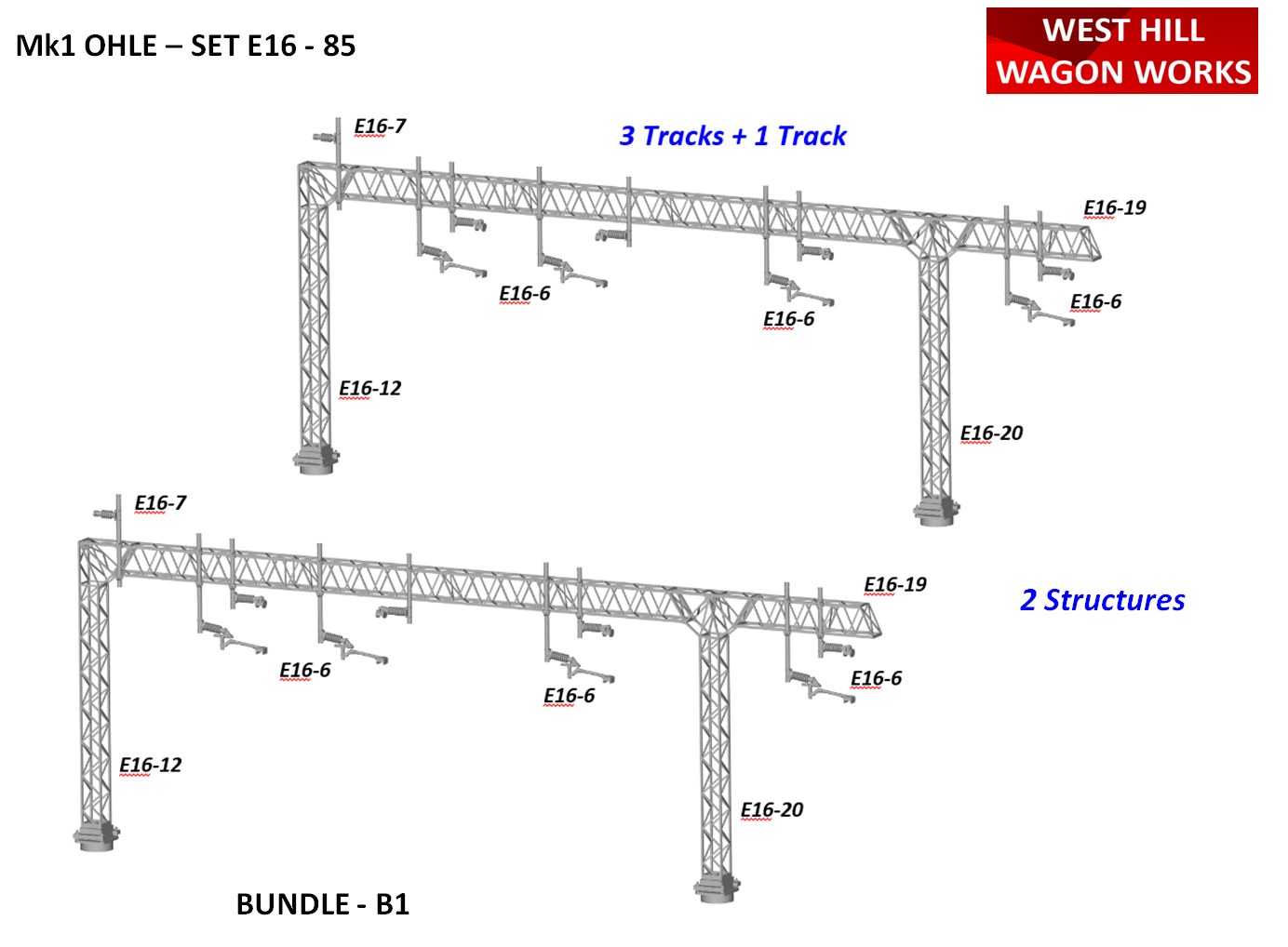

Detailed Overhead Line Equipment Structure Kits – Parts to construct Two Mk1 25kV Type B Multi-Track Structures with Magnetic Registration Arms and Return Conductor Supports; Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

OO Gauge SET E16-85 - product code 4WH0901685

This Bundle Set E16-85 includes:-

• 2 x E16-12 - Type B 230mm Structure Kits
• 1 x E16-19 - 55mm Cantilever Spans Set
• 2 x E16-20 - Type B Double Sided Masts

• 4 x E16-6 - Magnetic Registration Arms Sets
• 1 x E16-7 - Return Conductor Supports Set

All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

Each OHLE Structure (SET E16-85) assembled dimensions:-
• Structure height above your Baseboard (including bases) - 111mm
• Structure length (across the tracks) - 315mm
• Structure width - 14mm
• Nominal height of contact wire (if fitted to Magnetic Registration Arms) - approx. 78mm above baseboard [wires not included]

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
