Description

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type C Platform Double Sided Tall Mast, for use with E16-23 platform structure kits,
Typical of a type fitted to the West Coast Main Line route, including Magnetic Base.
PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW
OO Gauge SET E16-24 - product code 4WH0901624

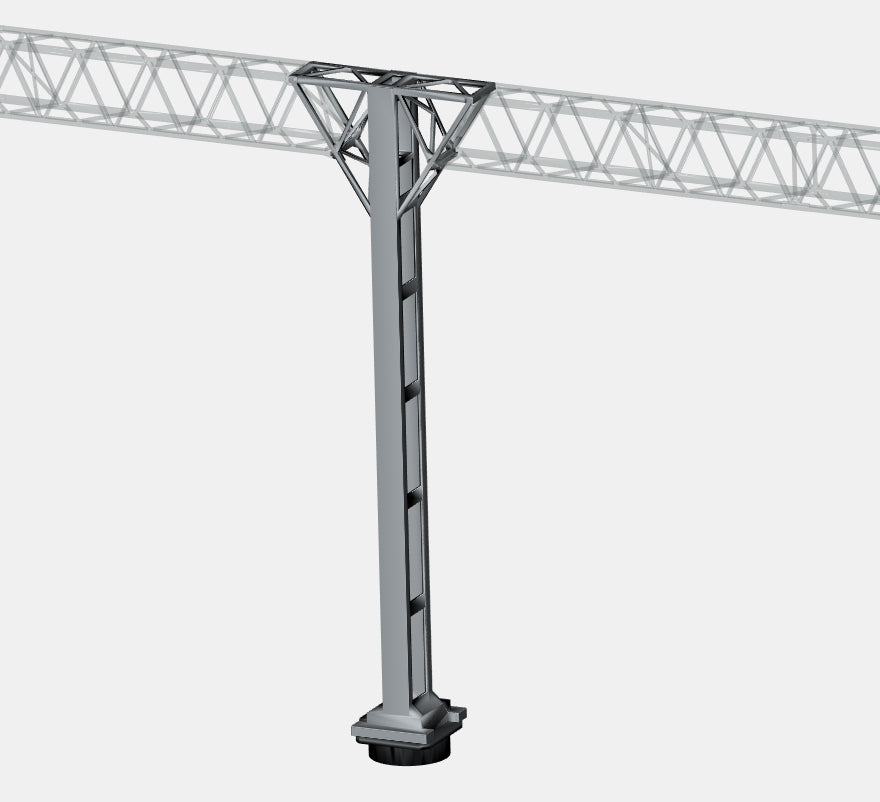

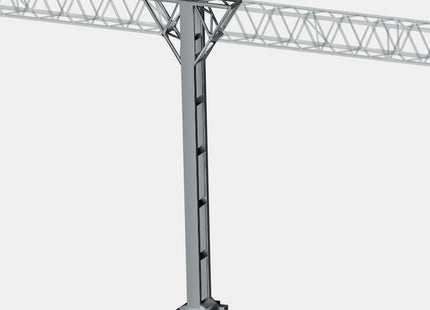

Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type C Platform Double Sided Tall Mast, including a Magnetic Base, typical of a type fitted to the West Coast Main Line route.

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

OO Gauge SET E16-24 - product code 4WH0901624

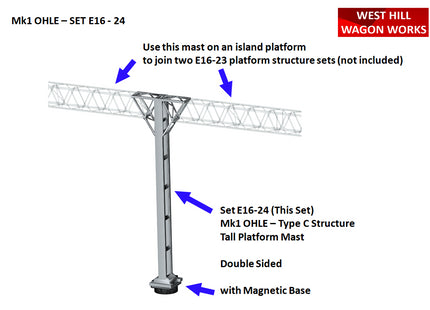

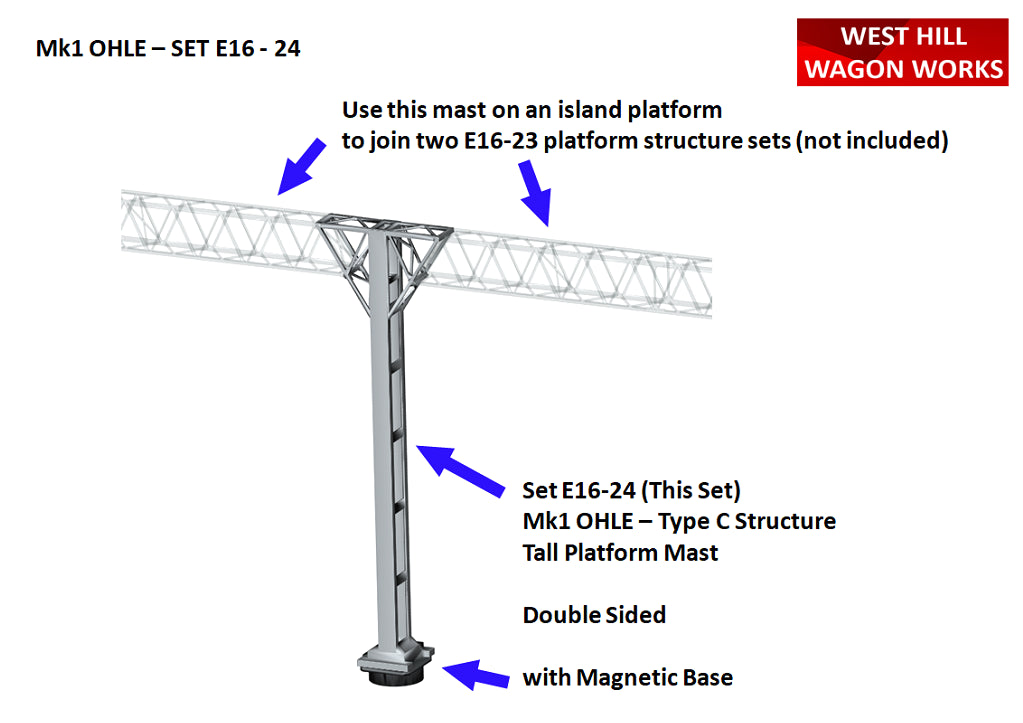

This set E16-24 includes parts to construct One (1) detailed Type C Platform Double Sided Tall Mast that is designed to fit between two E16-23 Platform Structure kits (not included), to allow spanning of multiple platforms.

One Mast Base is included in the kit, with two magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

OHLE Structure kit (SET E16-24) assembled dimensions:-

• Overall height above your platform (including bases) - 101mm

• Overall length of mast (across the tracks) - 30mm

• Overall width of structure - 14mm

• Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included], this is assuming a nominal 18mm Platform height.

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
