    Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type E Viaduct Structure kit (145mm),
    Typical of a type fitted to the West Coast Main Line route
    Incl. Special Viaduct Side Mount Magnetic Bases
    PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW
    OO Gauge SET E16-52 - product code 4WH0901652

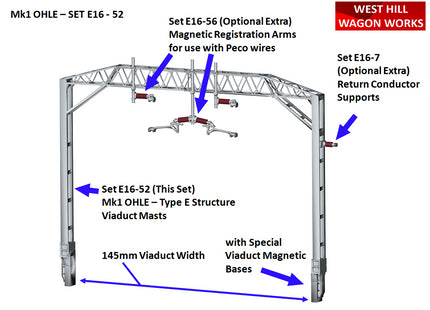

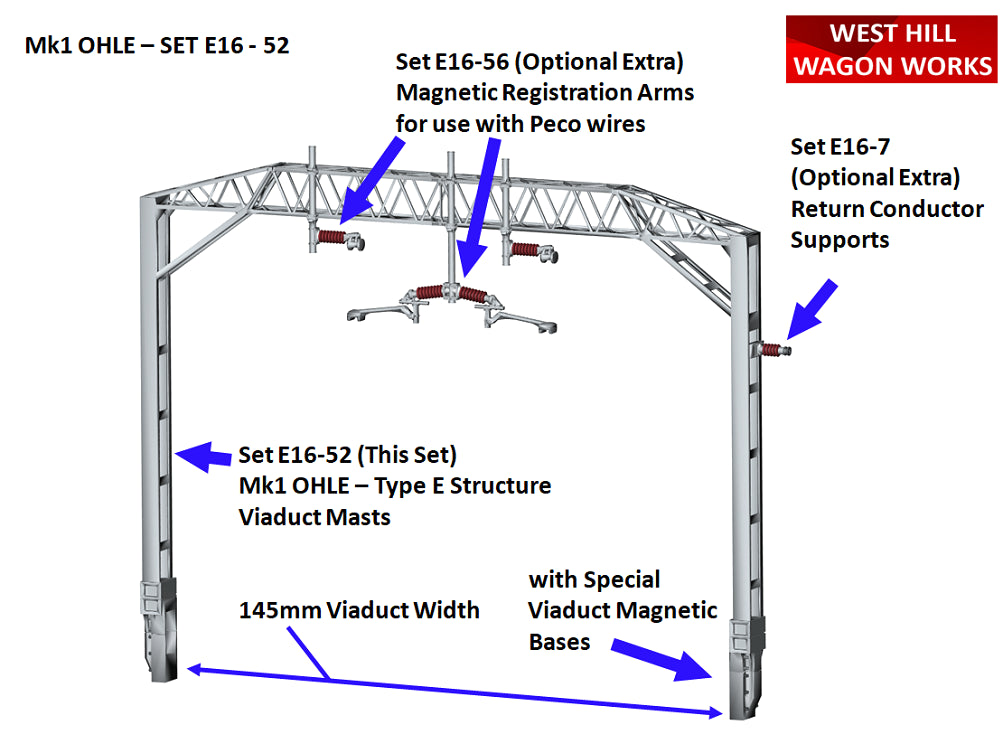

    Detailed Overhead Line Equipment Structure Kit – Mk1 25kV Type E Viaduct Structure for your 145mm wide viaduct, incl. Special Viaduct Side Mount Magnetic Bases, typical of a type fitted to the West Coast Main Line route.

    PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

    OO Gauge SET E16-52 - product code 4WH0901652

    This set E16-52 includes parts to construct One (1) detailed Type E Viaduct Structure with Two Masts that has a span to cater for 2-track Viaduct Structures of 145mm width.

    Two Viaduct Mast Side Mount Bases are included in the kit, with four magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

    PLEASE NOTE - the registration arms are NOT included and should be purchased separately.

    Registration Arm and Catenary Wire Supports for the Type E Structure available to Purchase Separately are as follows:-

    SET E16-56 - Two Single Registration Arms and two Catenary Wire Supports (magnetic type to allow fitting of Peco type OHL wires) note [wires are not included] - Product code 4WH0901656

    All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

    OHLE Structure kit (SET E16-54) dimensions:-

    Overall height of structure (including bases) - 124mm

    Overall length of structure (across the tracks) - 158mm

    Nominal Span distance between inner edge of Bases - 145mm

    Overall width of structure - 8.5mm

    Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]

    Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.
