Detailed Overhead Line Equipment Structures Kit – Southern Region 750v DC Style Single Track Cantilever type Masts, Incl. Magnetic Bases and Registration Arms.
Pack of 3 Masts Kit
Typical of a type fitted to various Southern Region depots and yards.
PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW
OO Gauge SET E13-1 - product code 4WH0901301

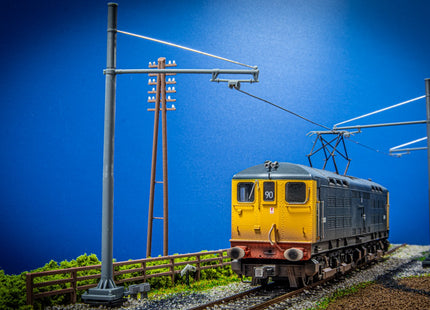

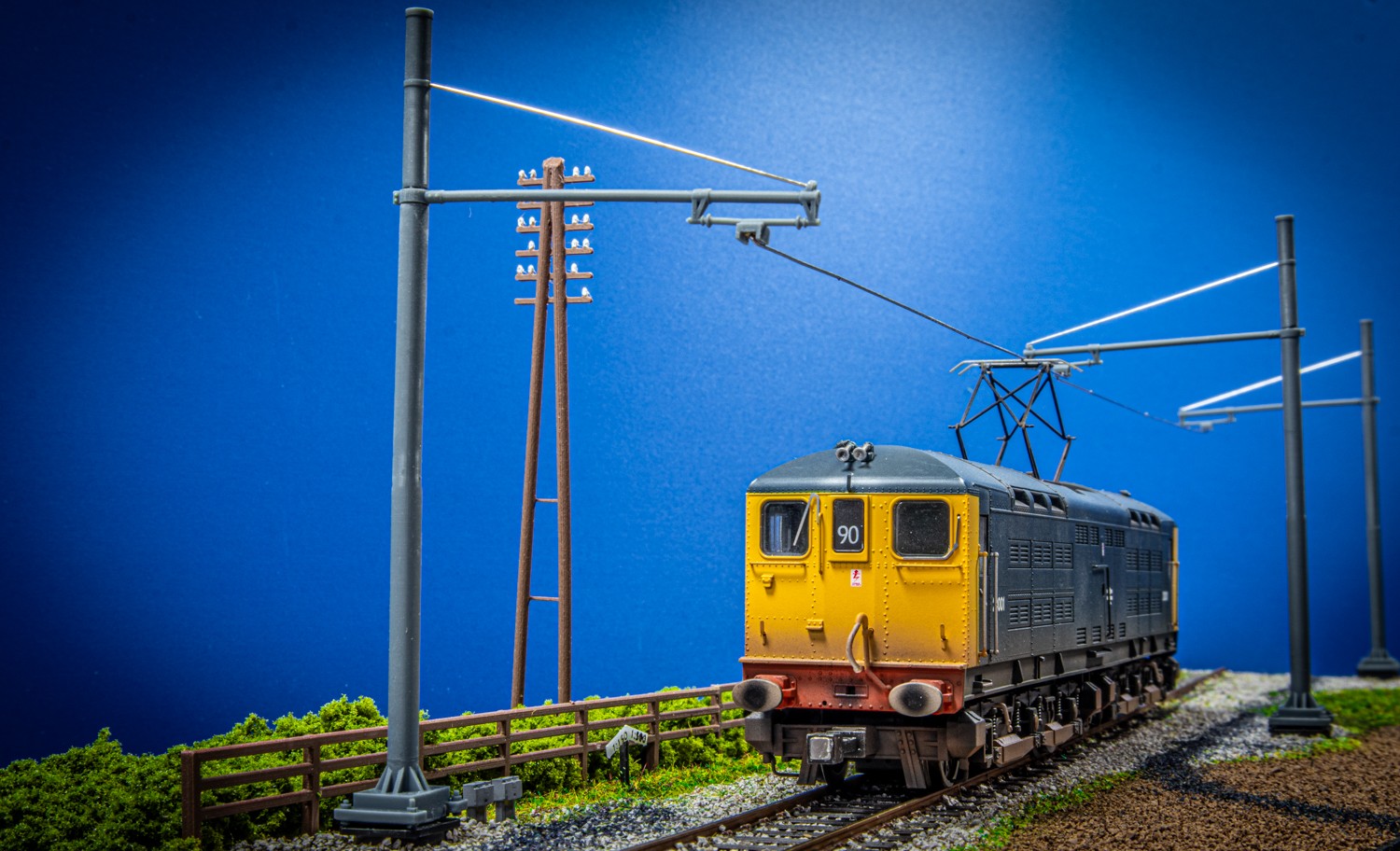

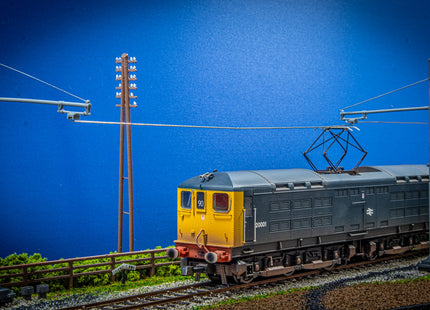

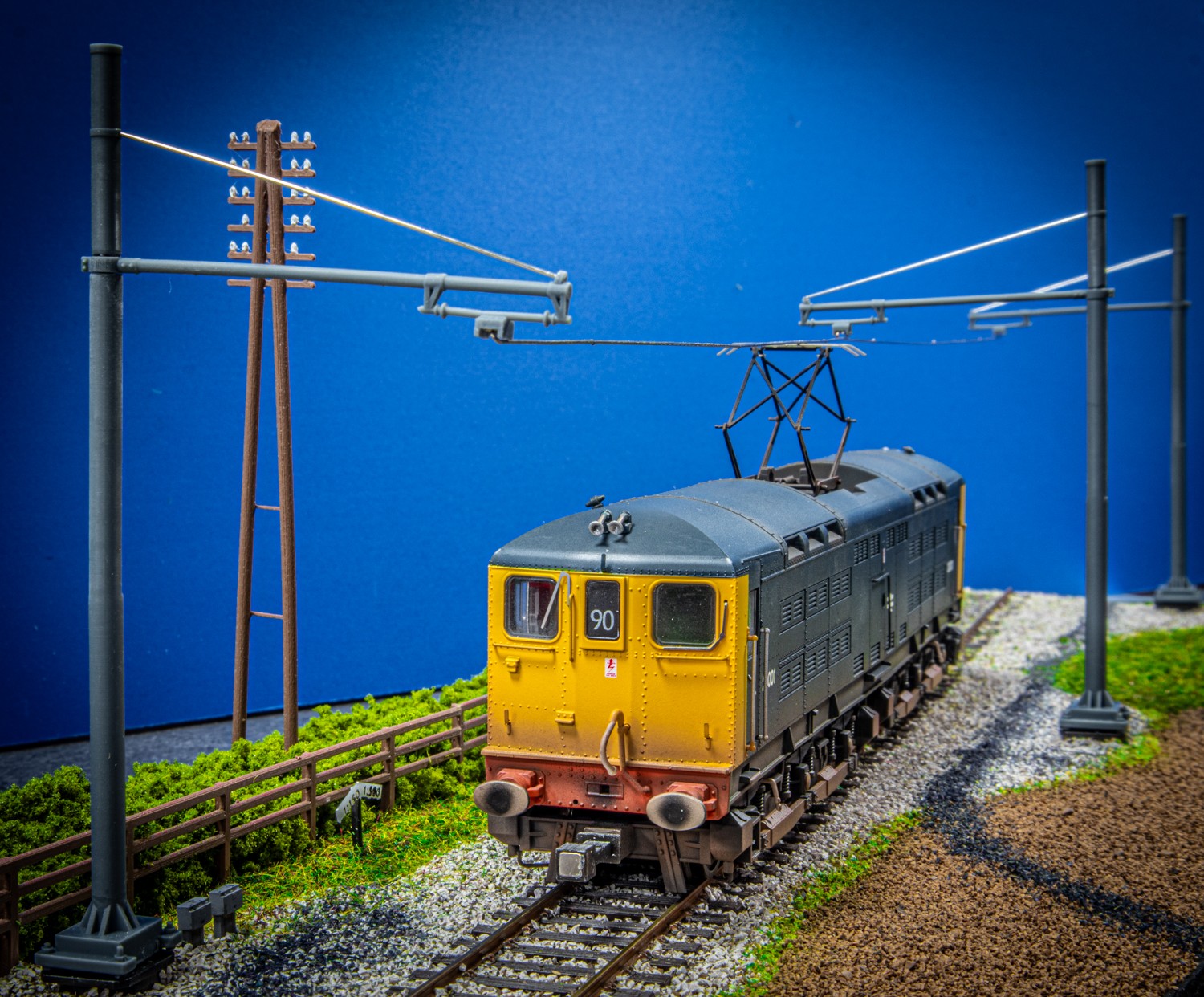

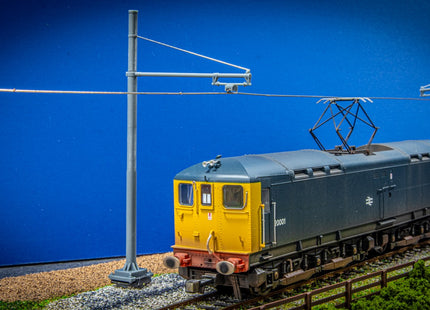

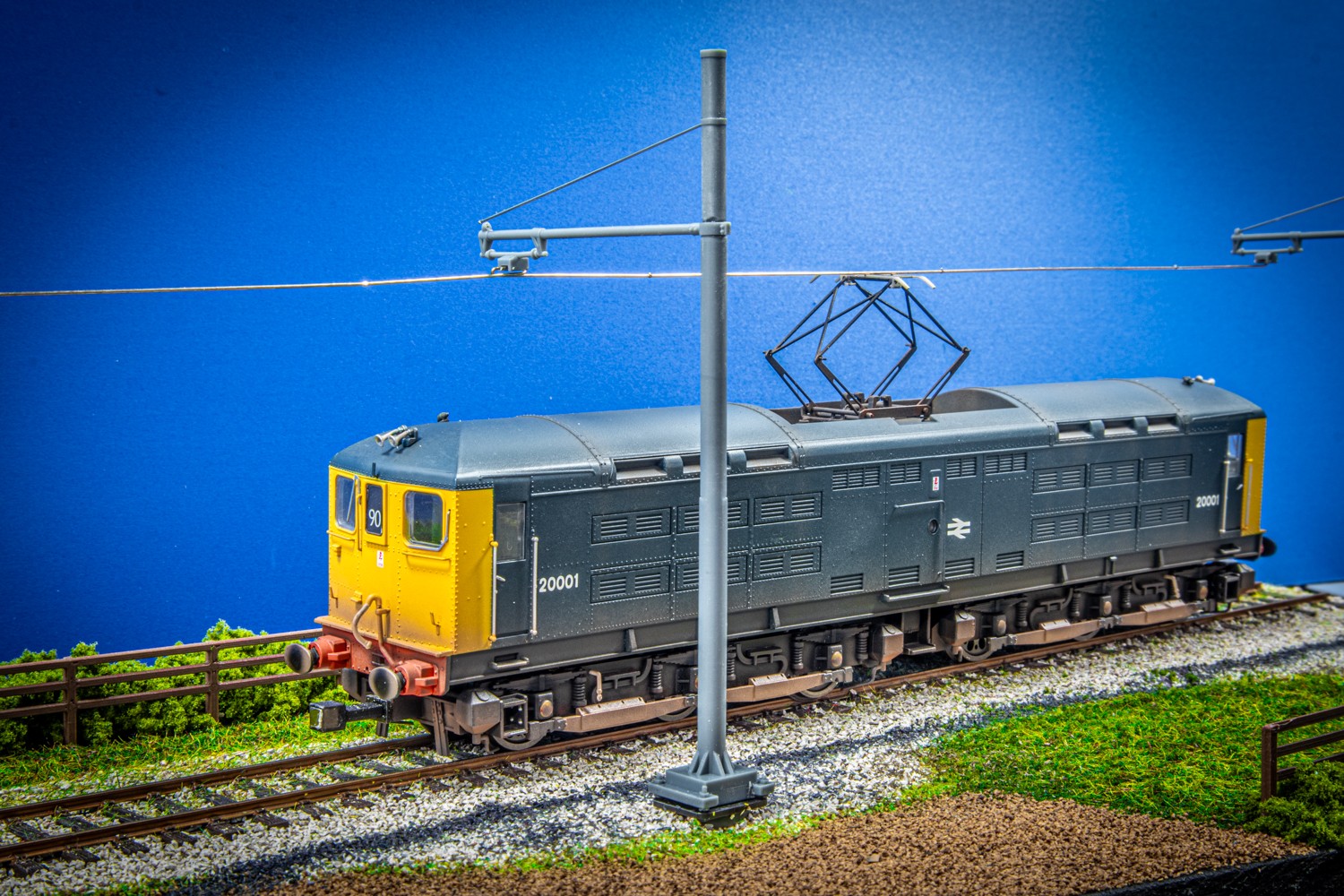

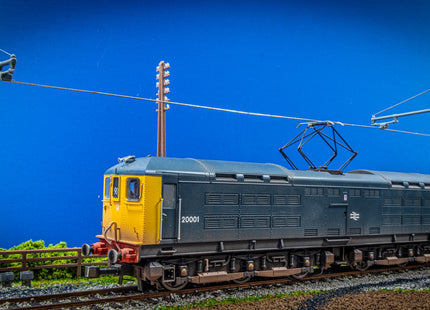

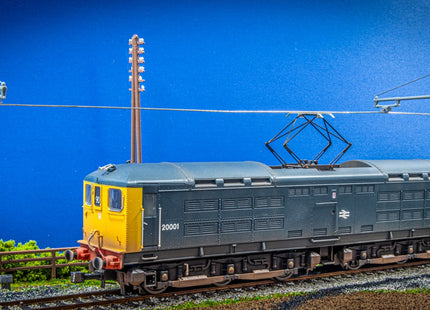

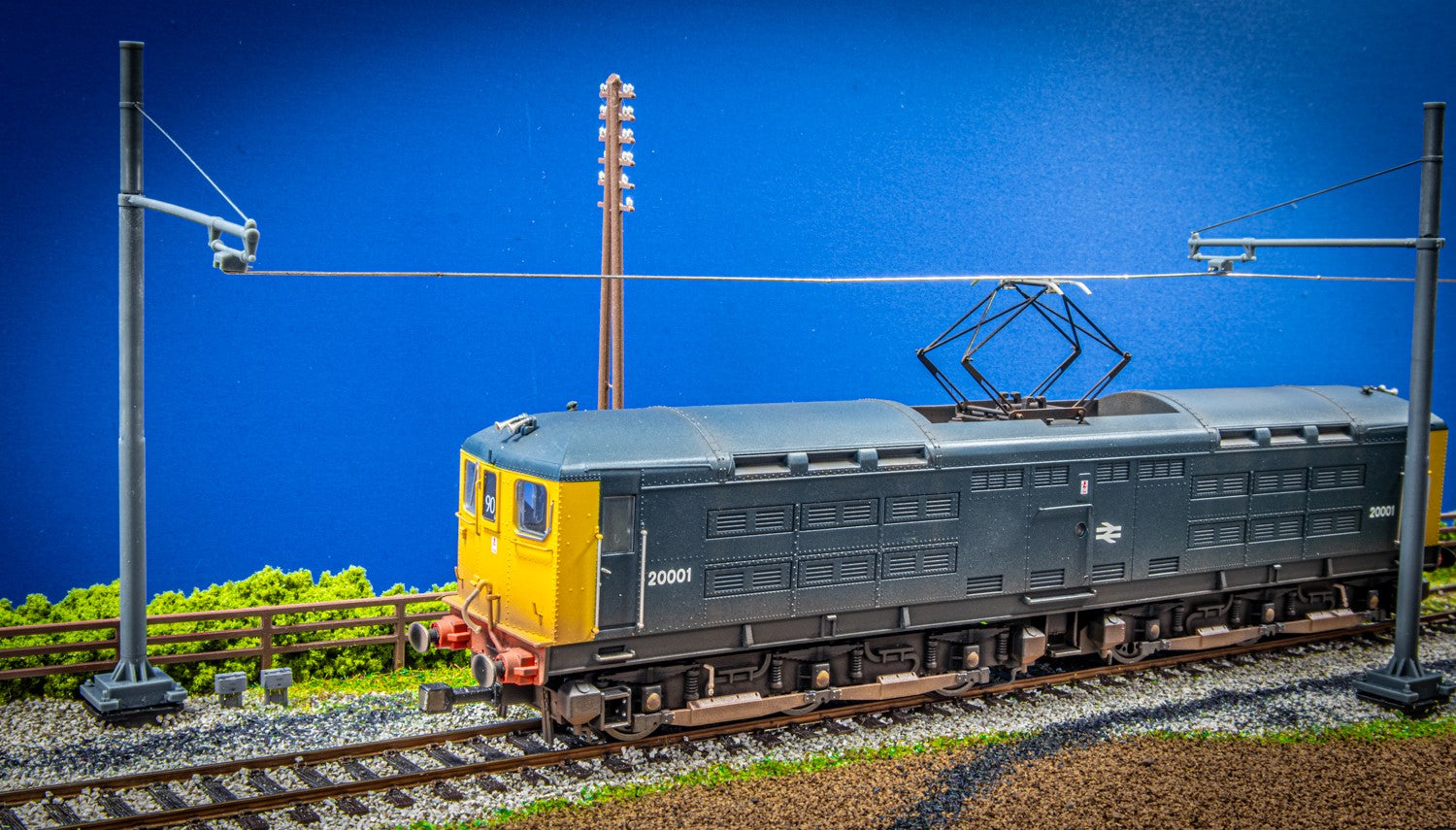

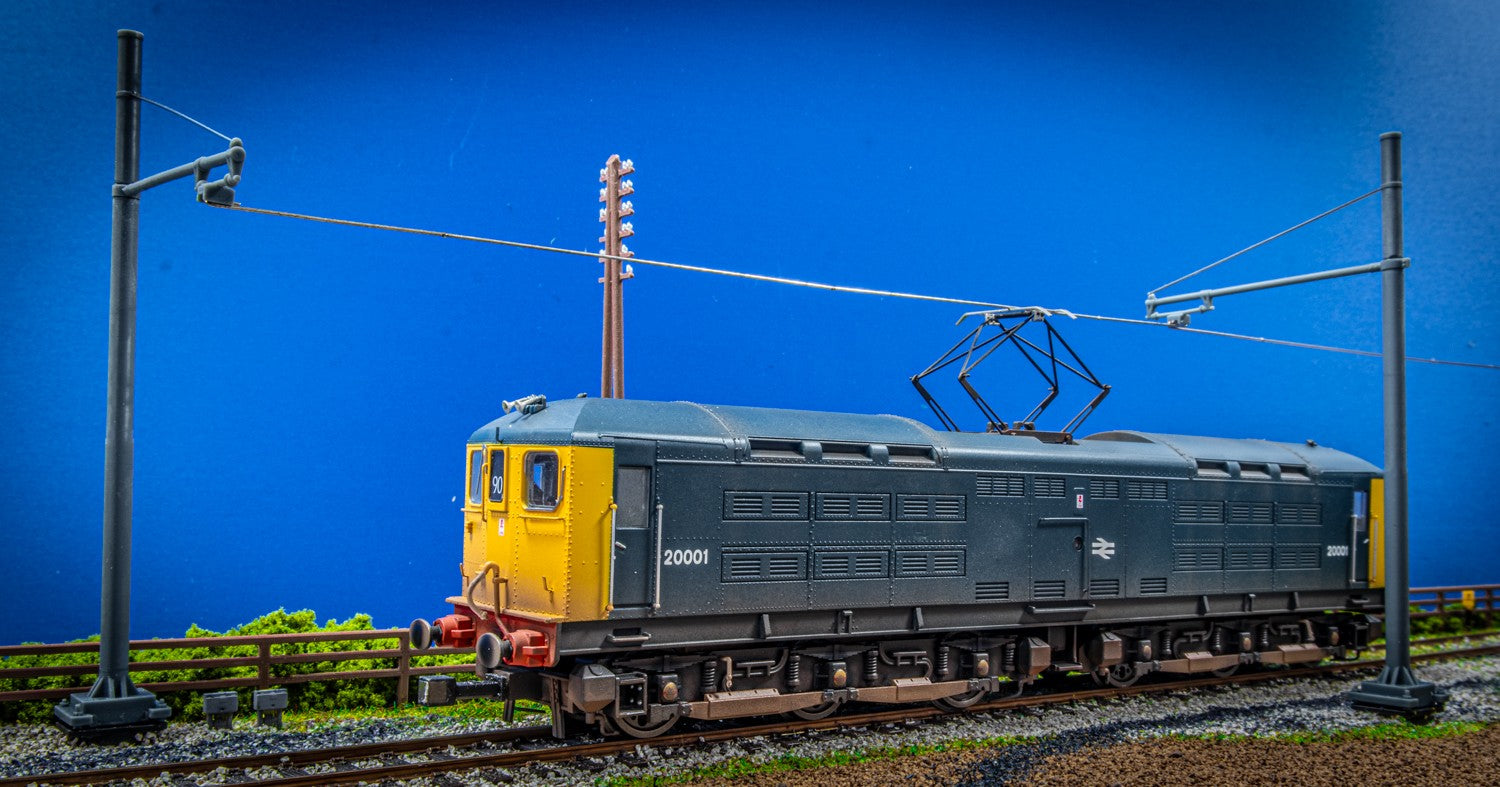

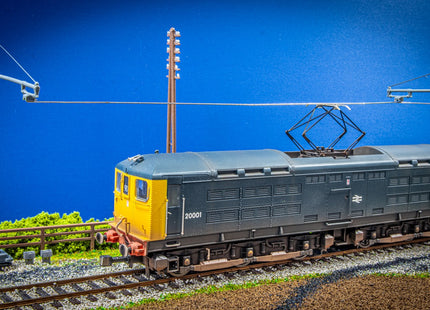

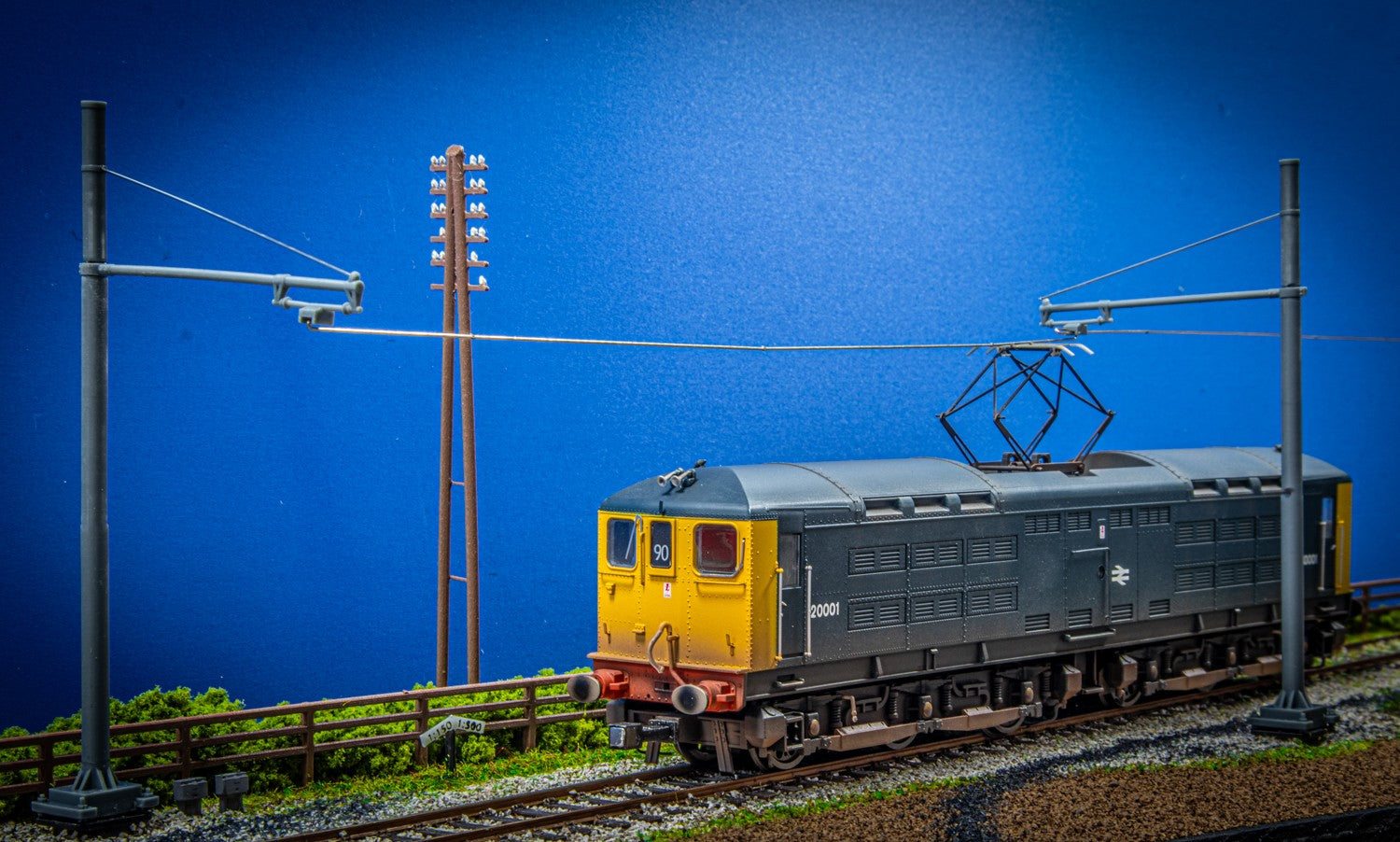

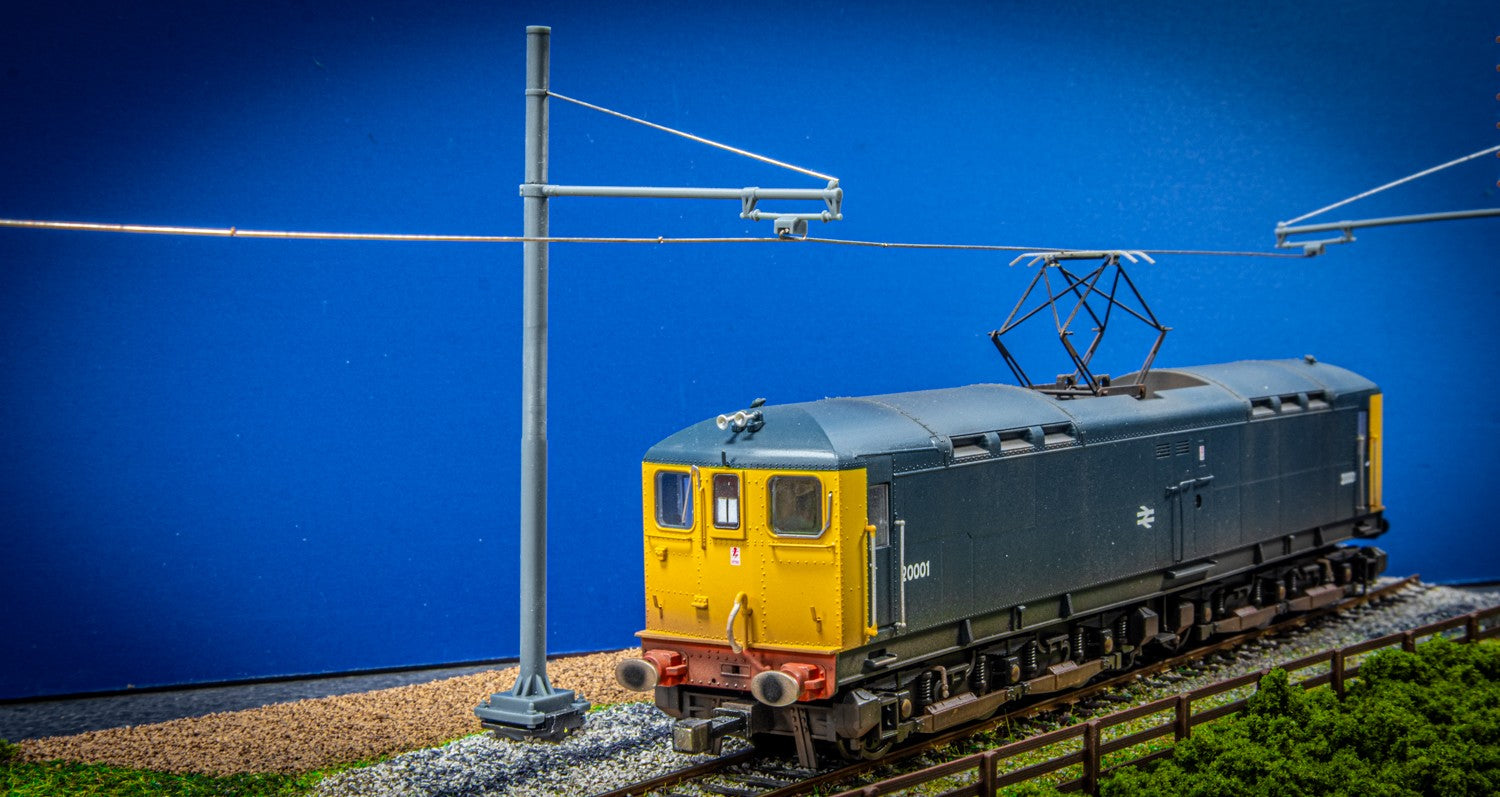

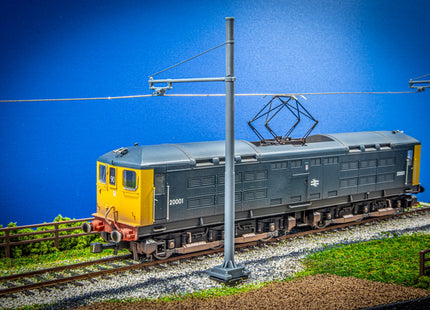

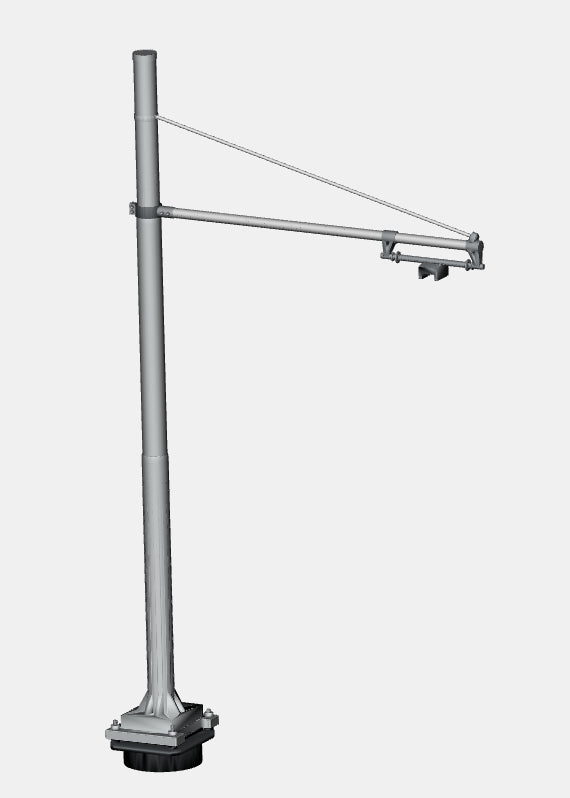

Detailed Overhead Line Equipment Structure Kit – 3 x Southern Region 750v DC Style Single Track Cantilever type Masts, typical of a type fitted to various Southern Region depots and yards including Hither Green, Hoo Junction and Ashford (Chart Leacon).
PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW
OO Gauge SET E13-1 - product code 4WH0901301

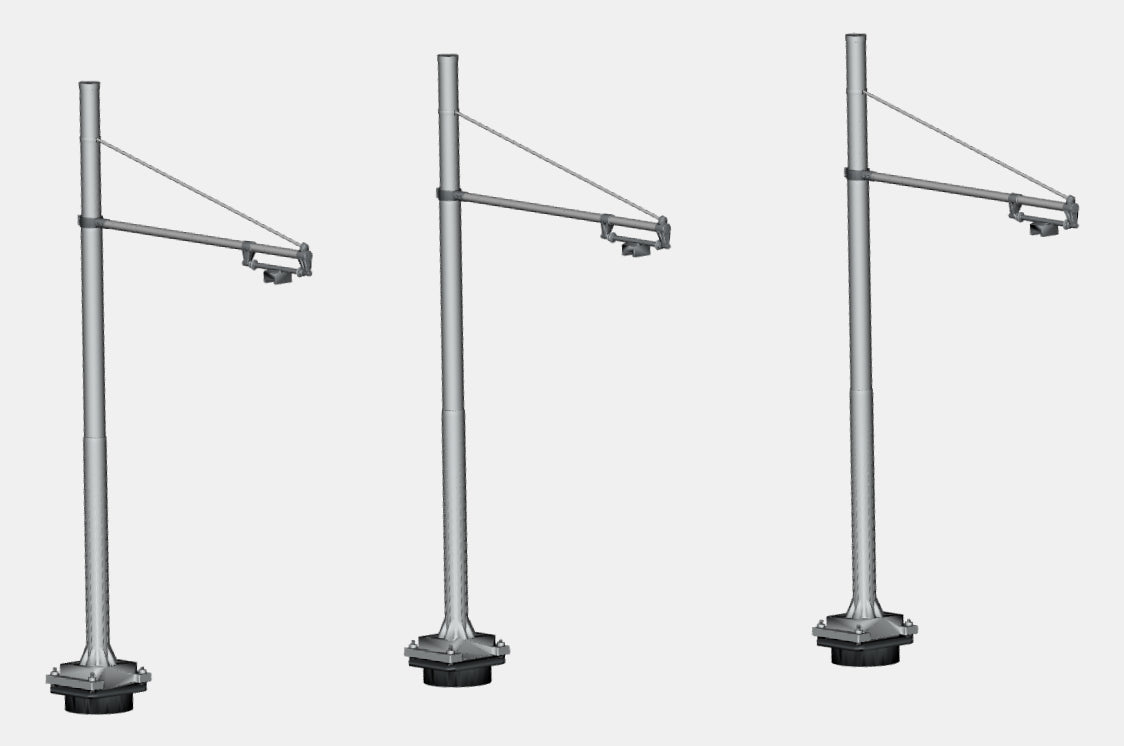

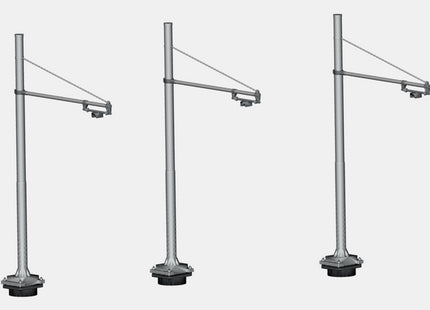

This set E13-1 includes parts to construct Three (3) Single Track Cantilever Masts.
Mast Bases are included in the kit, with magnets to fit into the bases and OHLE structures. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.
Registration Arm magnets are included should you wish to attach a contact wire [wires are not included in this kit]
Each Mast Kit has a number of parts that are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.
A length of 0.5mm wire rod is included to form the top brace of each mast, for fitting between the mast and the registration arm during assembly.
OHLE Structures kit (SET E13-1) dimensions:-
• Overall height or each mast above baseboard (including base) - 109mm
• Overall length of each mast structure (across the tracks) - 62mm
• Overall width of each mast structure - 14mm
• Nominal height of contact wire (if fitted to Magnetic Registration Arm) - 79mm above baseboard [wires not included]
Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.
