Detailed Overhead Line Equipment 10 Mast Structures Kit

SERIES 1 - Single Insulated Cantilever (SIC) Outer type with registration arm, including Magnetic Base

Pack of 10 Masts

OO Gauge

SET E3-10 - product code 4WH0900310

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

Detailed Overhead Line Equipment Mast Structure Kit - SERIES 1 - Single Insulated Cantilever (SIC) Outer type with registration arm, including Magnetic Base

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

OO Gauge SET E3-10 - product code 4WH0900310

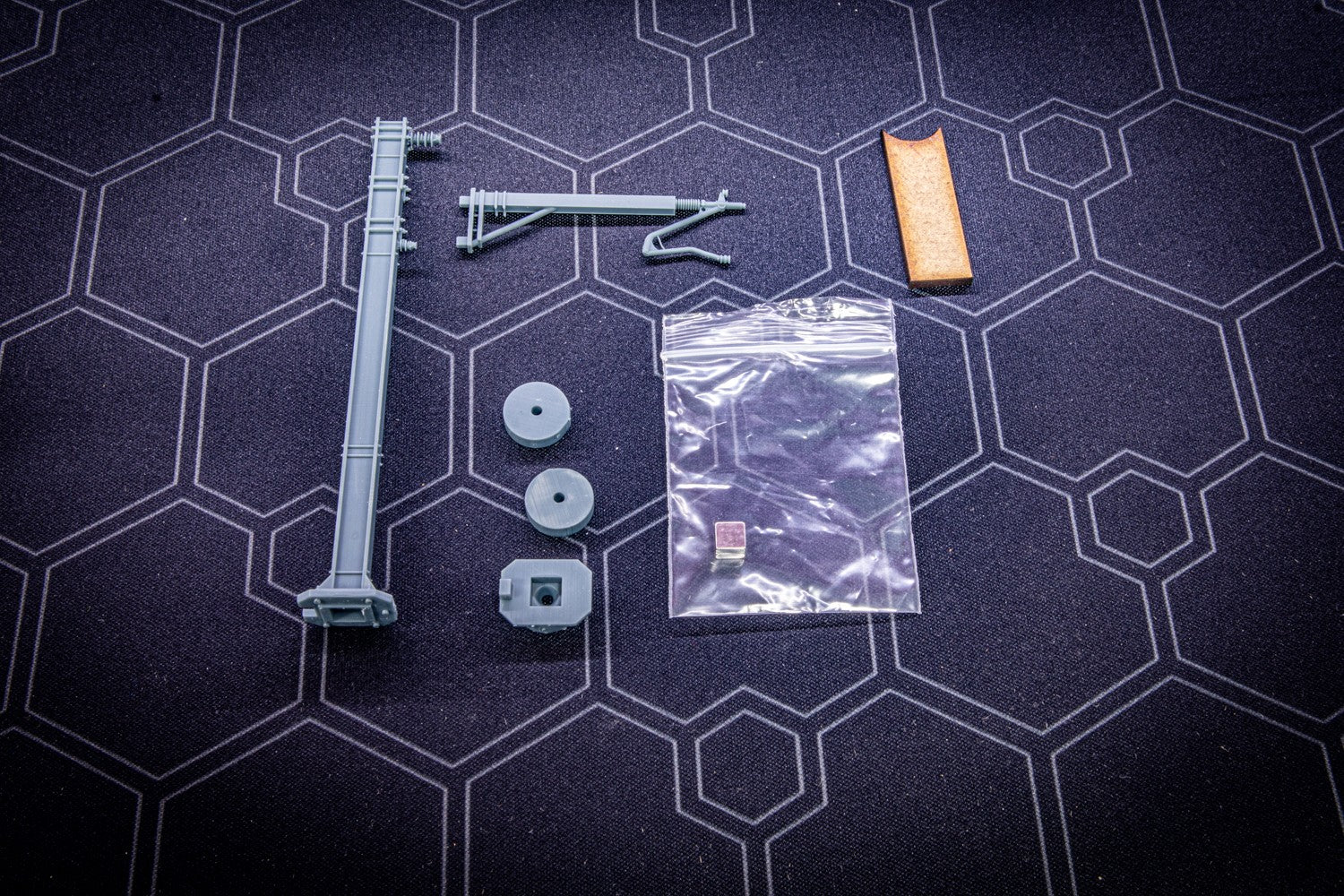

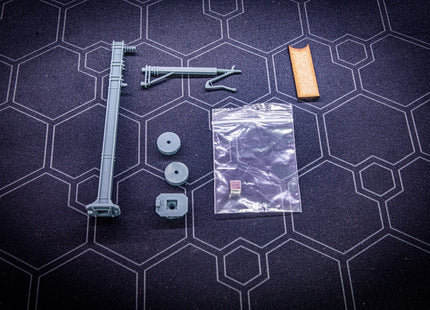

This set E3-10 includes parts to construct ten (10) basic SERIES 1 - Single Insulated Cantilever (SIC) type Mast structures.

Ten Pile Driven style Bases are included in the kit with height spacers and magnets to fit into the base and OHLE structures. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

Also included is a mast spacer tool, this will help you position the mast the correct distance from the track.

All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.

OHLE Structure kit (SET E3-10) mast dimensions:-

Maximum height above baseboard (including base) - 108mm
Overall length of Outer type structure (across the track) - 66mm
Max width of structure/base - 14mm
Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.
