Description

Detailed Overhead Line Equipment Mast Structure Kit

SERIES 1 - Single Insulated Cantilever (SIC) Inner type with registration arm, including Magnetic Base

OO Gauge

SET E3-1 - product code 4WH0900301

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

Detailed Overhead Line Equipment Mast Structure Kit - SERIES 1 - Single Insulated Cantilever (SIC) Inner type with registration arm, including Magnetic Base

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

OO Gauge SET E3-1 - product code 4WH0900301

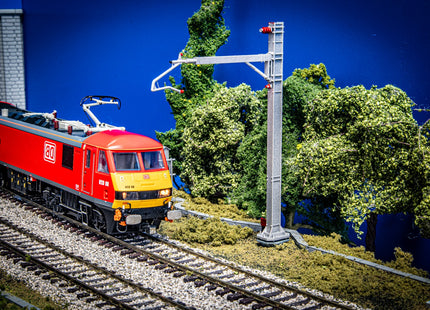

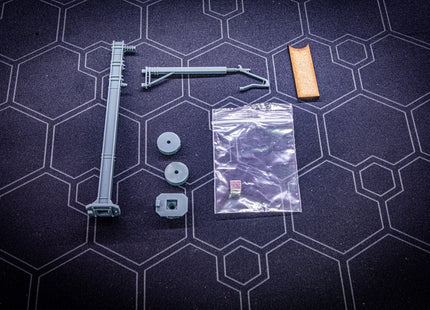

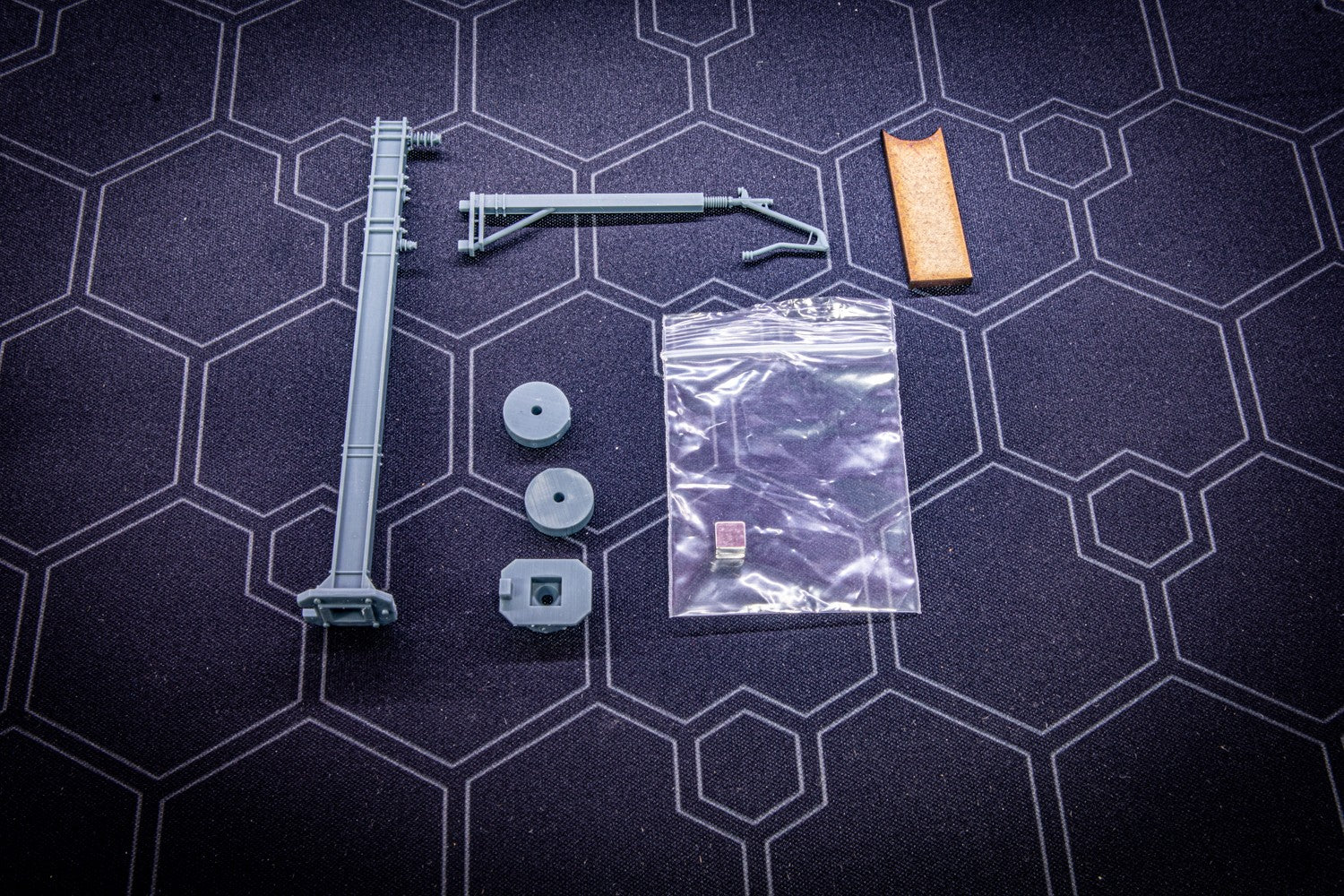

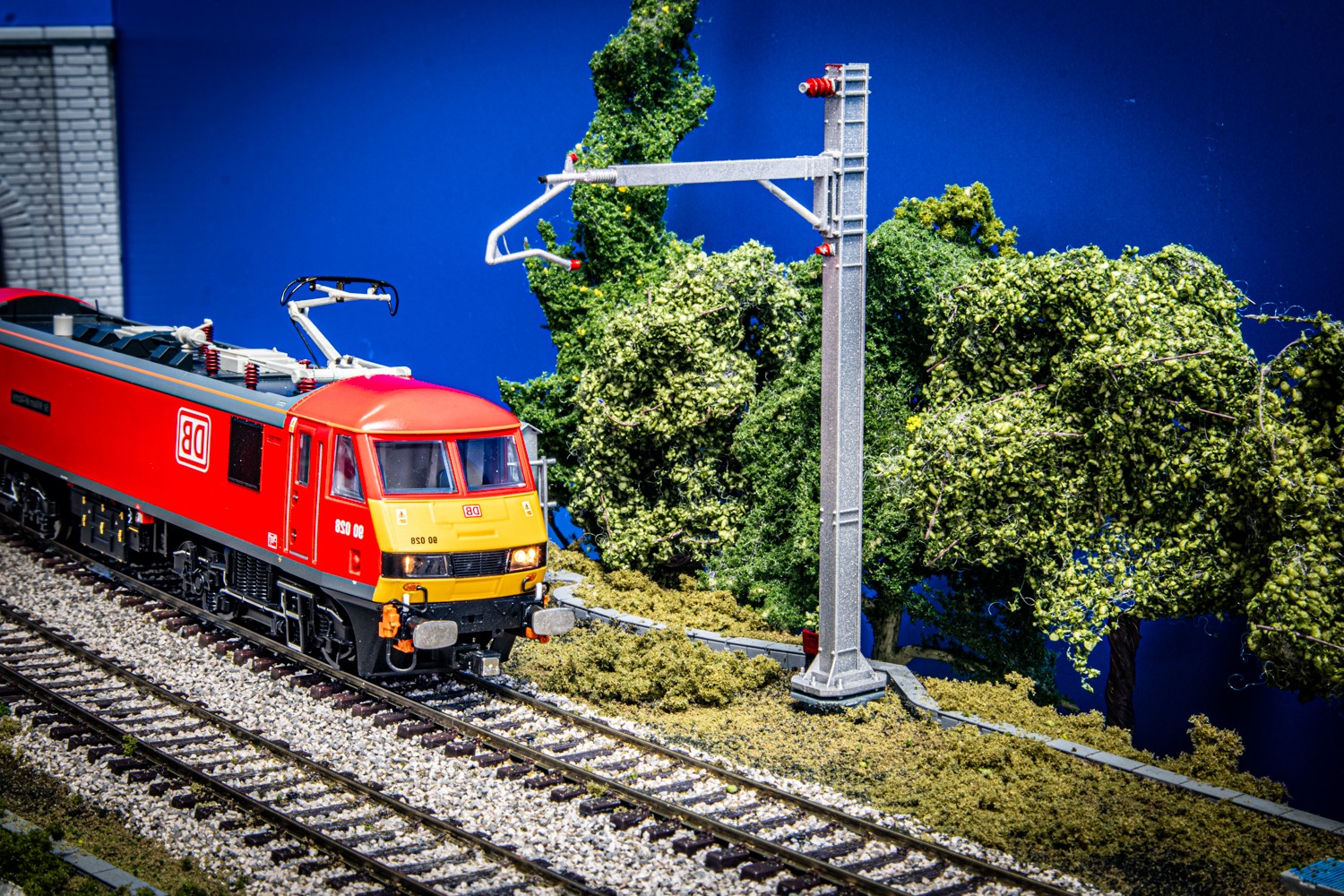

This set E3-1 includes parts to construct one (1) basic SERIES 1 - Single Insulated Cantilever (SIC) type Mast structure.

One Pile Driven style Base is included in the kit with height spacers and magnets to fit into the base and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

Also included is a mast spacer tool, this will help you position the mast the correct distance from the track.

All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

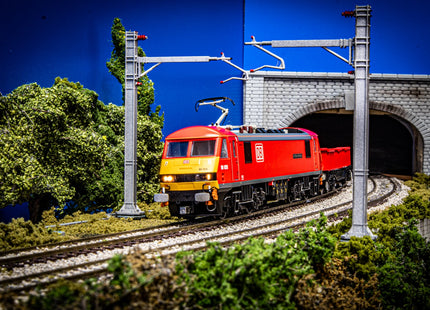

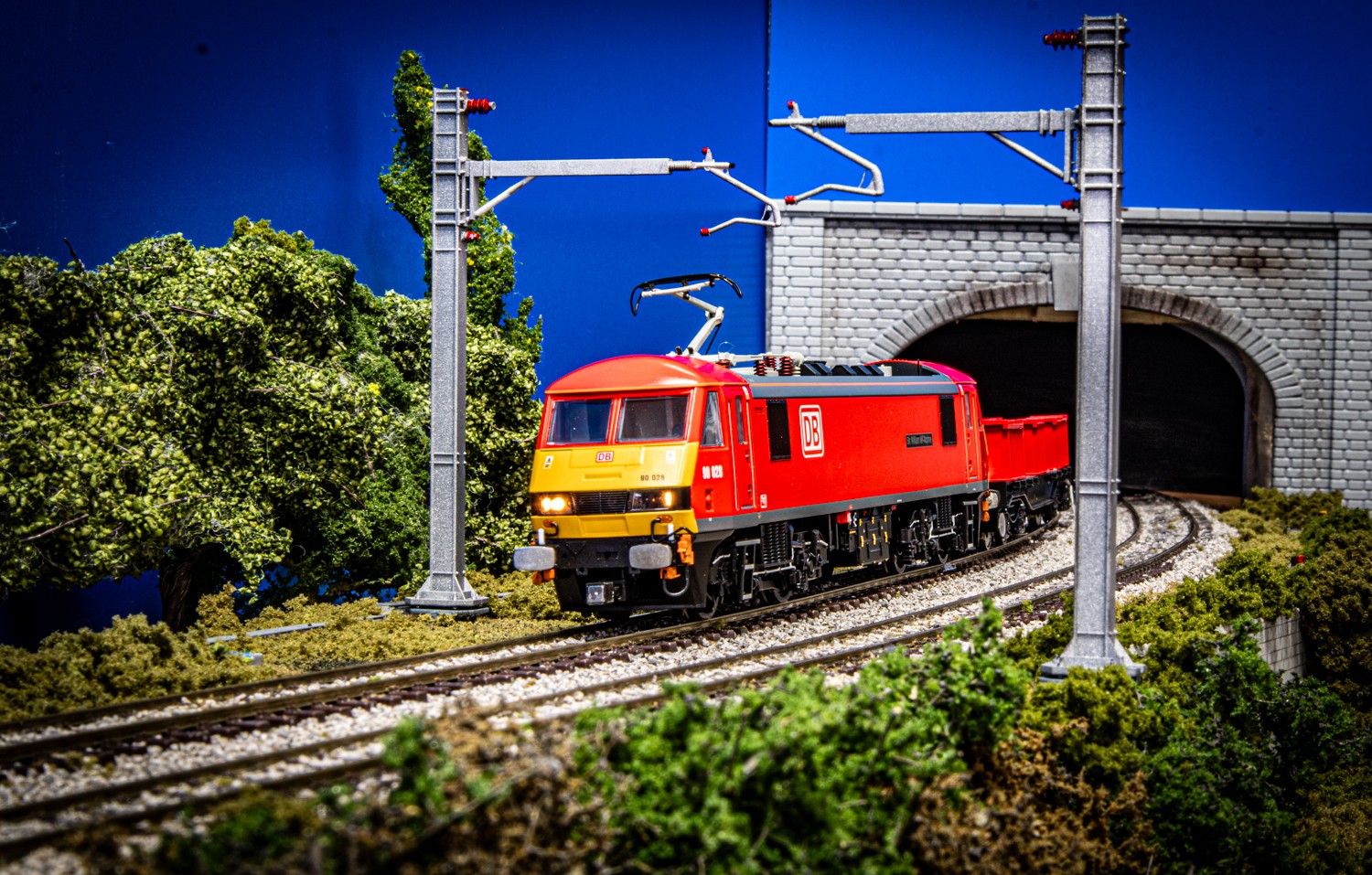

Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 260 to 920mm in OO Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.

OHLE Structure kit (SET E3-1) dimensions:-

• Maximum height above baseboard (including base) - 108mm
• Overall length of Inner type structure (across the track) - 76mm
• Max width of structure/base - 14mm
• Nominal height of contact wire (if fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
