BARGAIN Bundle Pack E4C

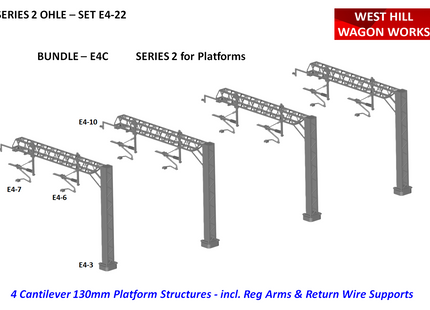

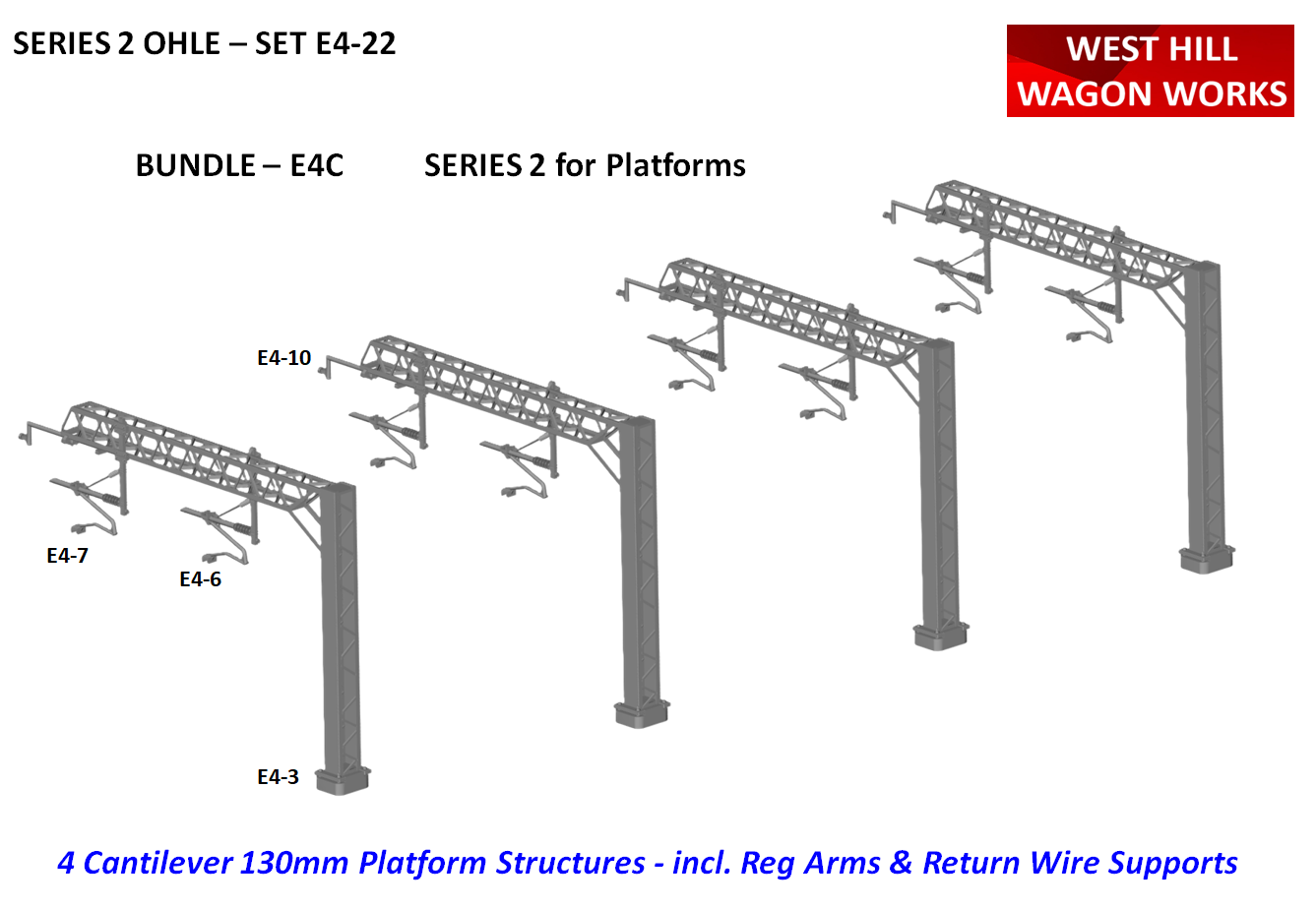

Detailed Overhead Line Equipment Platform Mast Structures Kit - Parts to construct Four x SERIES 2 - Two Track Platform Cantilever type 130mm Arm Masts, including Magnetic Bases, Magnetic Registration Arms and Return Conductor Wire Mounts.

OO Gauge

SET E4-22 - product code 4WH0900422

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

This Bundle Set E4-22 includes:-

• 4 x E4-3 - Series 2 Two Track Platform 130mm Cantilever Structure Kits
• 2 x E4-6 - Left Hand Magnetic Registration Arms Sets

• 2 x E4-7 - Right Hand Magnetic Registration Arms Sets
• 1 x E4-10 - Conductor Wire Mounts (Pack of 5)

All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

OHLE Structure kit (SET E4-22) each Mast assembled dimensions:-

• Maximum height above your platform (including base) - 101mm
• Overall length of structure (across the tracks) - 131mm
• Max width of structure/base - 14mm
• Nominal height of contact wire with Mast fitted onto an 18mm high platform (if wire fitted to Magnetic Registration Arms) - 78mm above baseboard [wires not included]

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
