Description

BARGAIN Bundle Pack A2

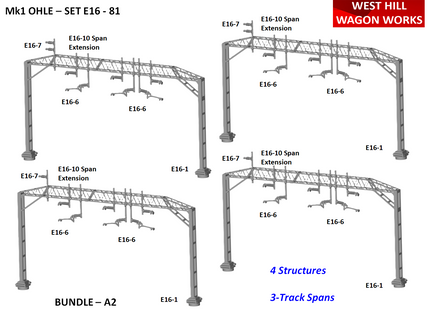

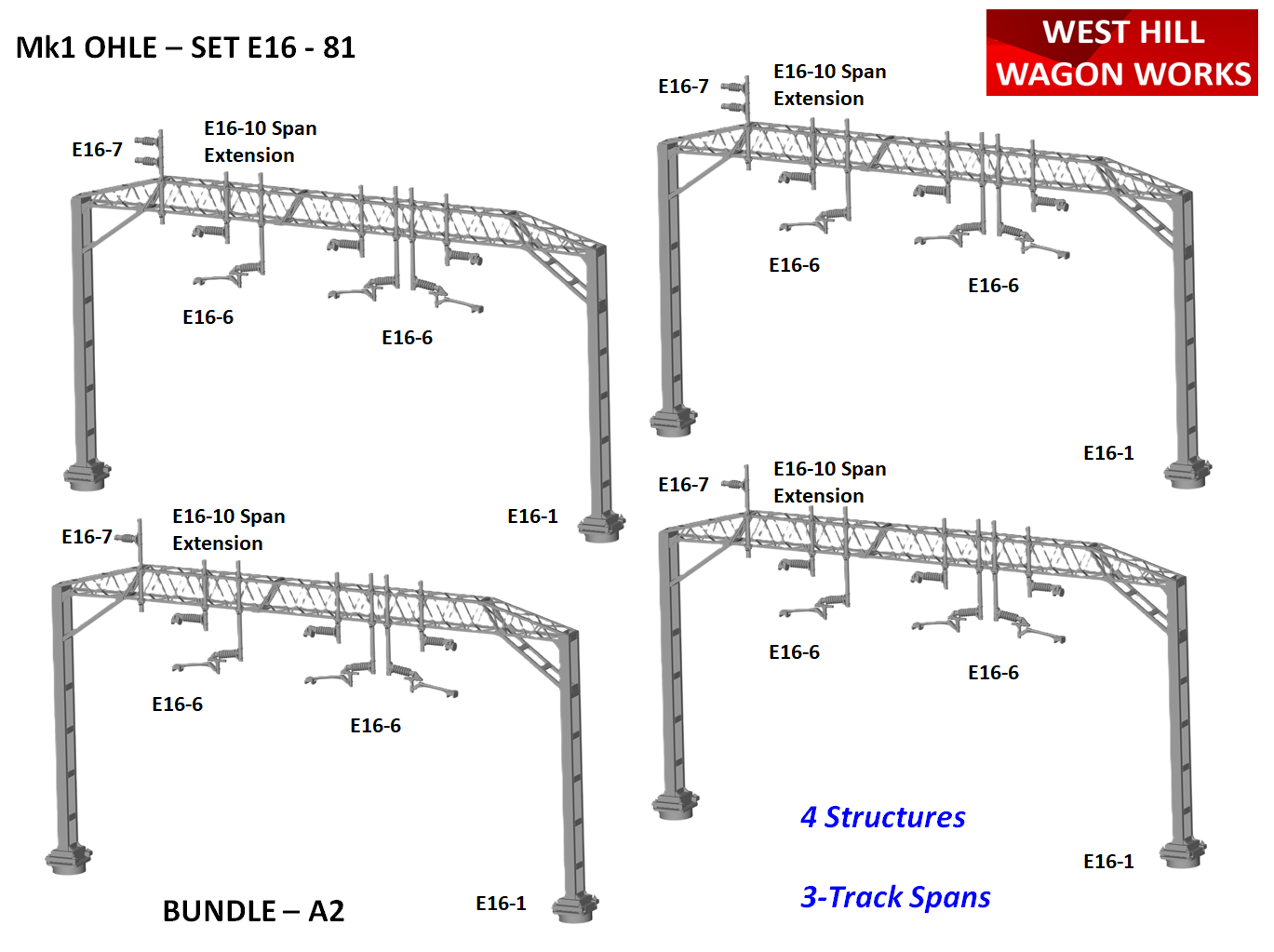

Detailed Overhead Line Equipment Structure Kits – Parts to construct Four Mk1 25kV Type A 3-Track Structures with Magnetic Registration Arms and Return Conductor Supports; Typical of a type fitted to the West Coast Main Line route, incl. Magnetic Bases.

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

OO Gauge SET E16-81 - product code 4WH0901681

This Bundle Set E16-81 includes:-

• 4 x E16-1 - Type A 130mm Structure Kits
• 2 x E16-10 - 50mm Extension Span Sets

• 6 x E16-6 - Magnetic Registration Arms Sets
• 1 x E16-7 - Return Conductor Supports Sets

All parts are supplied unpainted on sprues. Preparation and assembly with glue is required. Before painting it is recommended to apply a light coat of primer. Instructions are available on-line or paper copy by special request only at the time of ordering. Glue and paint is not included.

Each OHLE Structure (SET E16-81) assembled dimensions:-
• Structure height above your Baseboard (including bases) - 111mm
• Structure length (across the tracks) - 207mm
• Structure width - 14mm
• Nominal height of contact wire (if fitted to Magnetic Registration Arms) - approx. 78mm above baseboard [wires not included].

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
