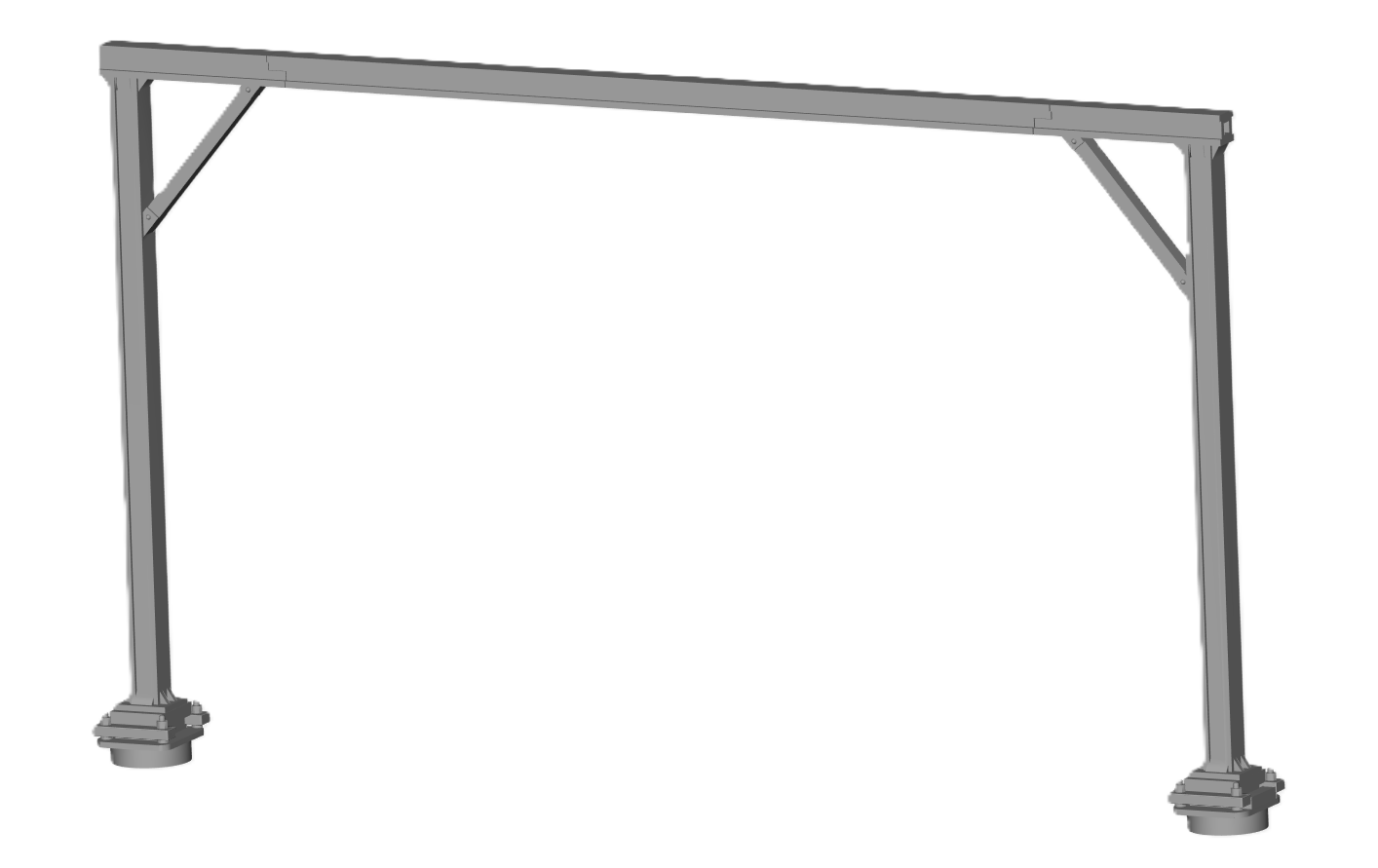

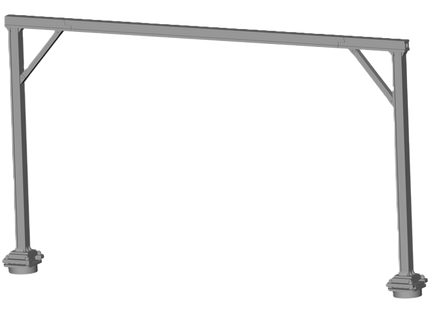

Detailed N-Gauge Overhead Line Equipment Mast Structure Kit - 1500vDC I-Beam type Structure Kit with 90mm Span for up to 2 Tracks, typical of a type fitted to the Woodhead and Great Eastern Main Line routes, incl. Magnetic Bases.

PLEASE READ THE FULL PRODUCT DESCRIPTION BELOW

N Gauge SET E12-21 - product code 2WH0901221

This set E12-21 includes parts to construct one (1) 1500vDC I-Beam type structure for up to 2 Tracks (2 Masts, 2 Bases and 1 Span section).

The two Bases included in the kit come with magnets to fit into the bases and OHLE structure. The use of magnets allows the OHLE structures to be easily removed and re-fitted on your layout.

PLEASE NOTE - the registration arms are NOT included and should be purchased separately.

N-Gauge Registration Arm options for the 1500vDC OHLE are available to Purchase Separately as follows:-

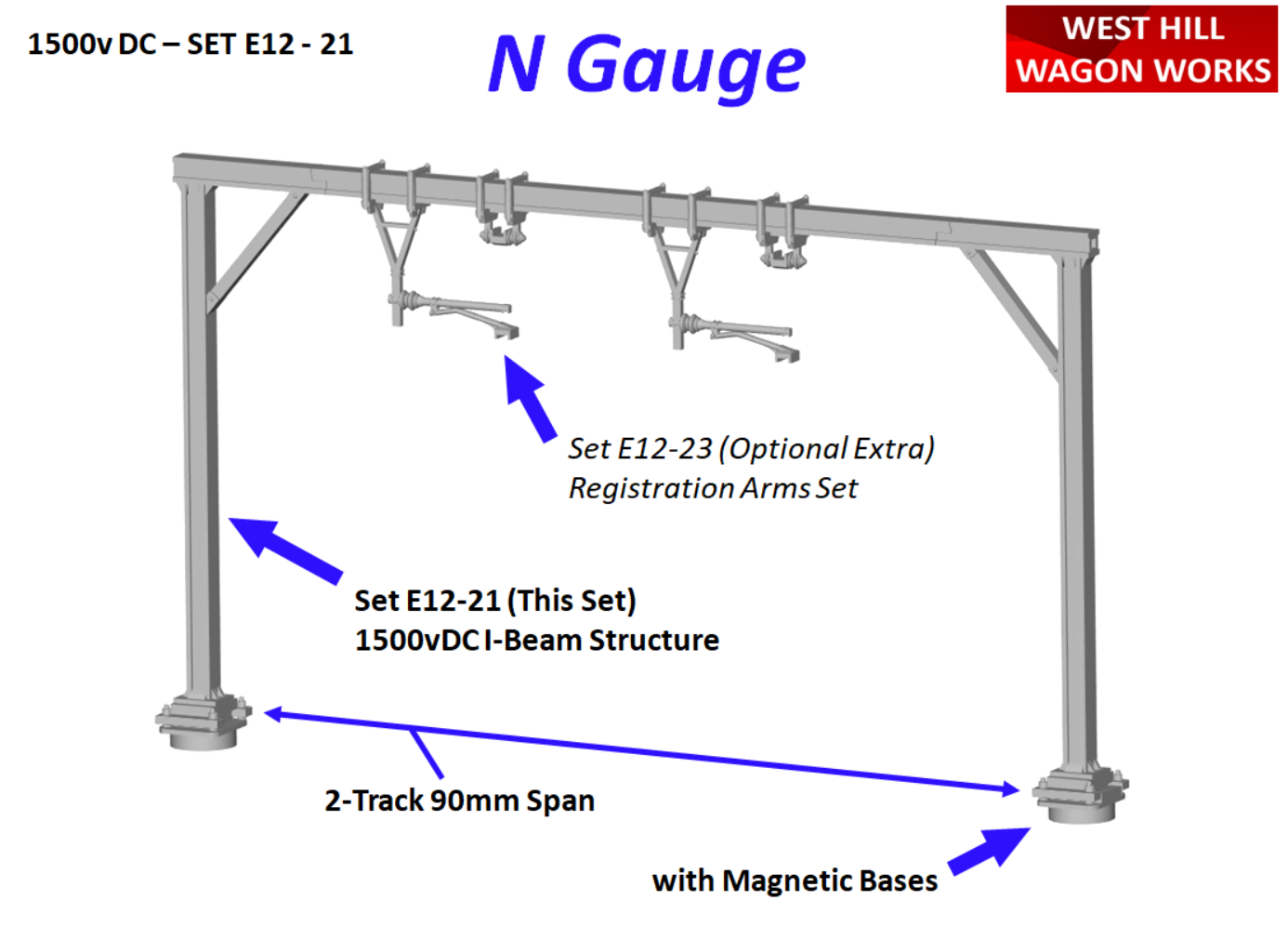

• SET E12-23 - 1500vDC Registration Arms and Catenary Wire Supports for I-Beam Type Structures (SET E12-23) - product code 2WH0901223

All parts are supplied unpainted; before painting it is recommended to apply a light coat of primer.

Regarding the spacing of OHLE masts, the real railway mast spacing can be vary between about 20metres and 70metres which equates to 130 to 470mm in N Gauge. In general mast spacing is likely to be closer together at junctions and on sharper curves.

OHLE Structure kit (SET E12-21) dimensions:-

• Maximum height above baseboard (including base) - 59mm
• Overall length of structure (across the tracks) - 104mm
• Max width of structure/base - 8mm

Please see the downloadable "OHLE Equipment Product Guide" in the Attachments TAB above.

Specifications

• Manufacturer: West Hill Wagon Works
