Description

Detailed Brake Pipes, Multiple Working and ETH Cables for both ends of one Class 73 Electro-Diesel locomotive.

Add some extra detail to your locomotives or replace missing accessory buffer beam details (please read the full Product Description).

OO Gauge (supplied unpainted)

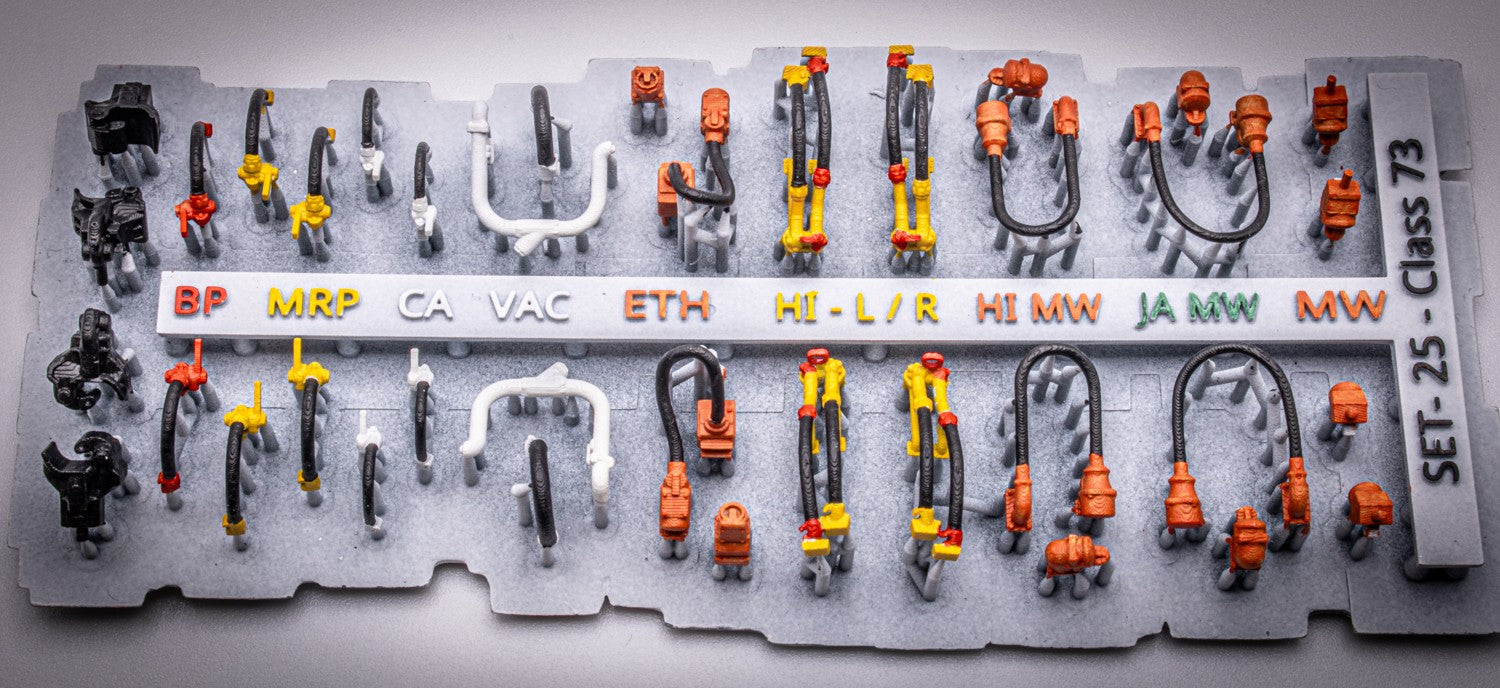

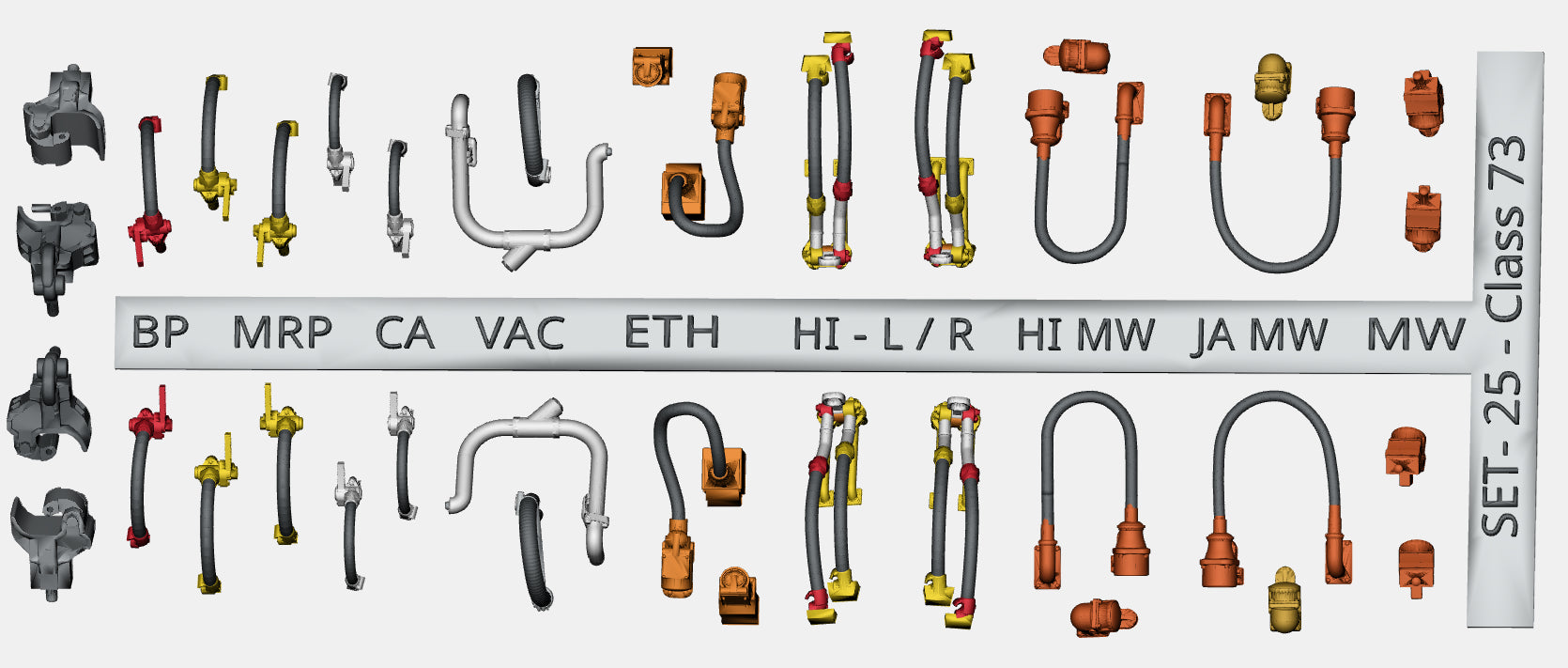

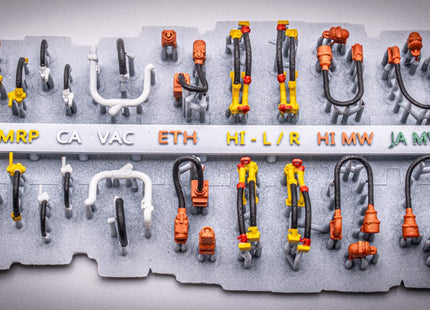

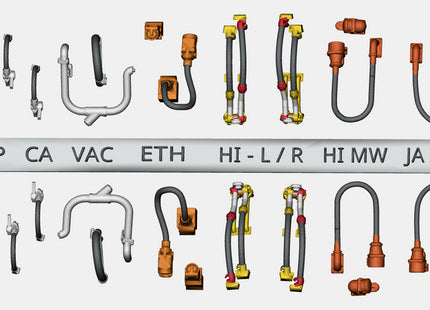

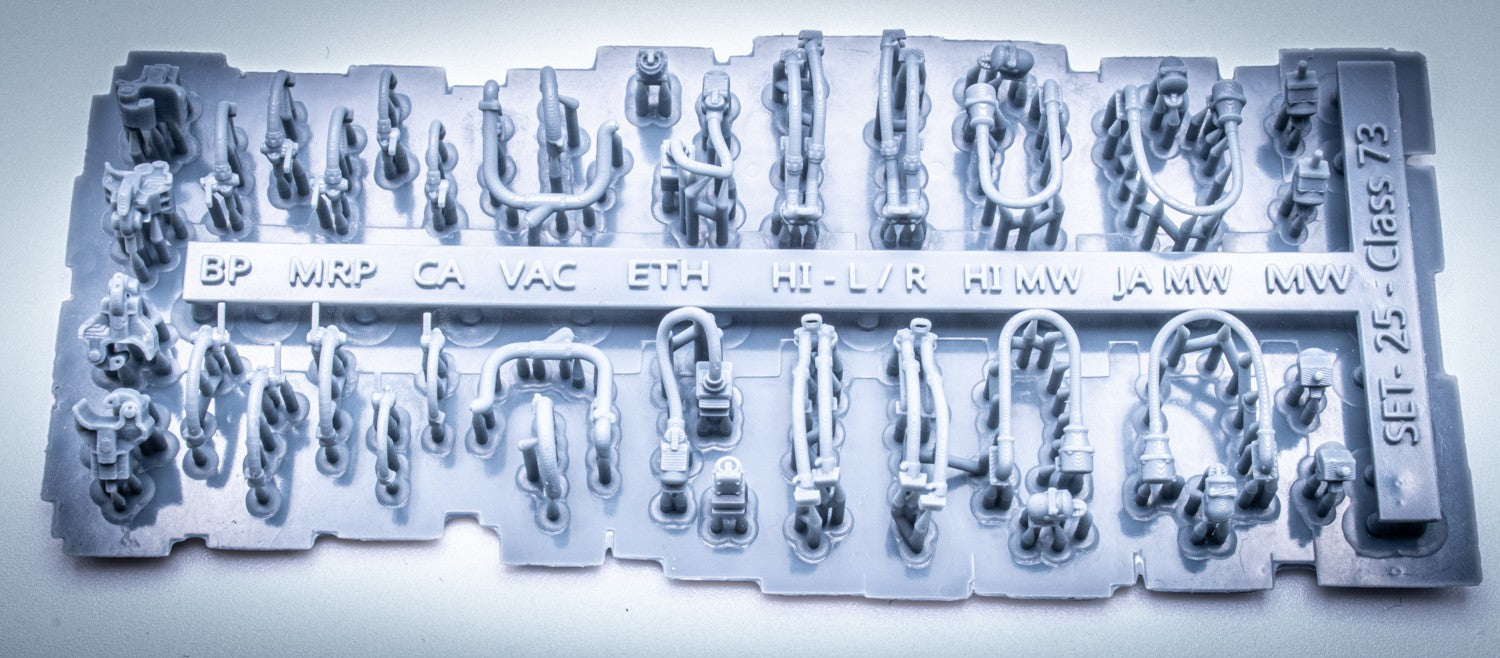

This set of brake pipes (high and low level), multiple working equipment cables and ETH cables is enough for both ends of one Class 73 Electro-Diesel Locomotive, the UNPAINTED pack includes:-

BP – Air Brake Pipes
MRP – Main Reservoir Pipes
CA – Control Air Pipes
VAC – Vacuum Brake Pipes (including feed pipe that runs to the left side of the buffer beam)
HI-L/R – High Level Brake Pipes (Left/Right)
HI-MW – High Level Multiple Working Cables
JA-MW – High Level Multiple Working Cables (JA-Class 73/0 Only)
MW – Low Level (Buffer Beam) Multiple Working Connectors
ETH – Electric Train Heat Cables & Receptacles
Also included are – Dummy Buckeye Couplers (2 raised and 2 in the dropped position)

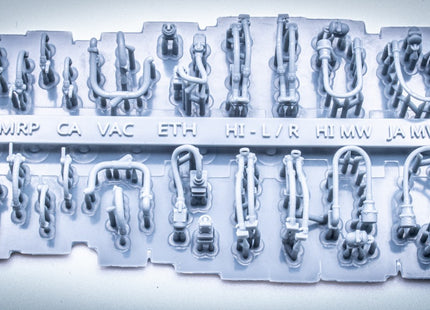

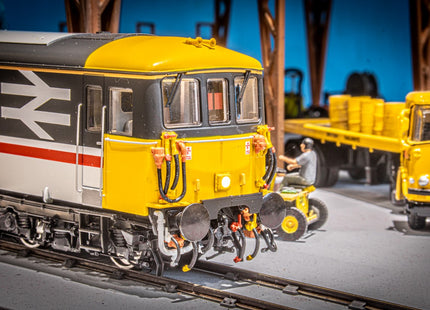

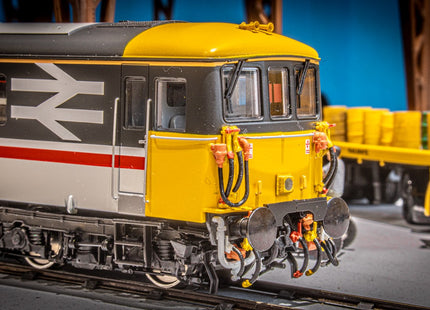

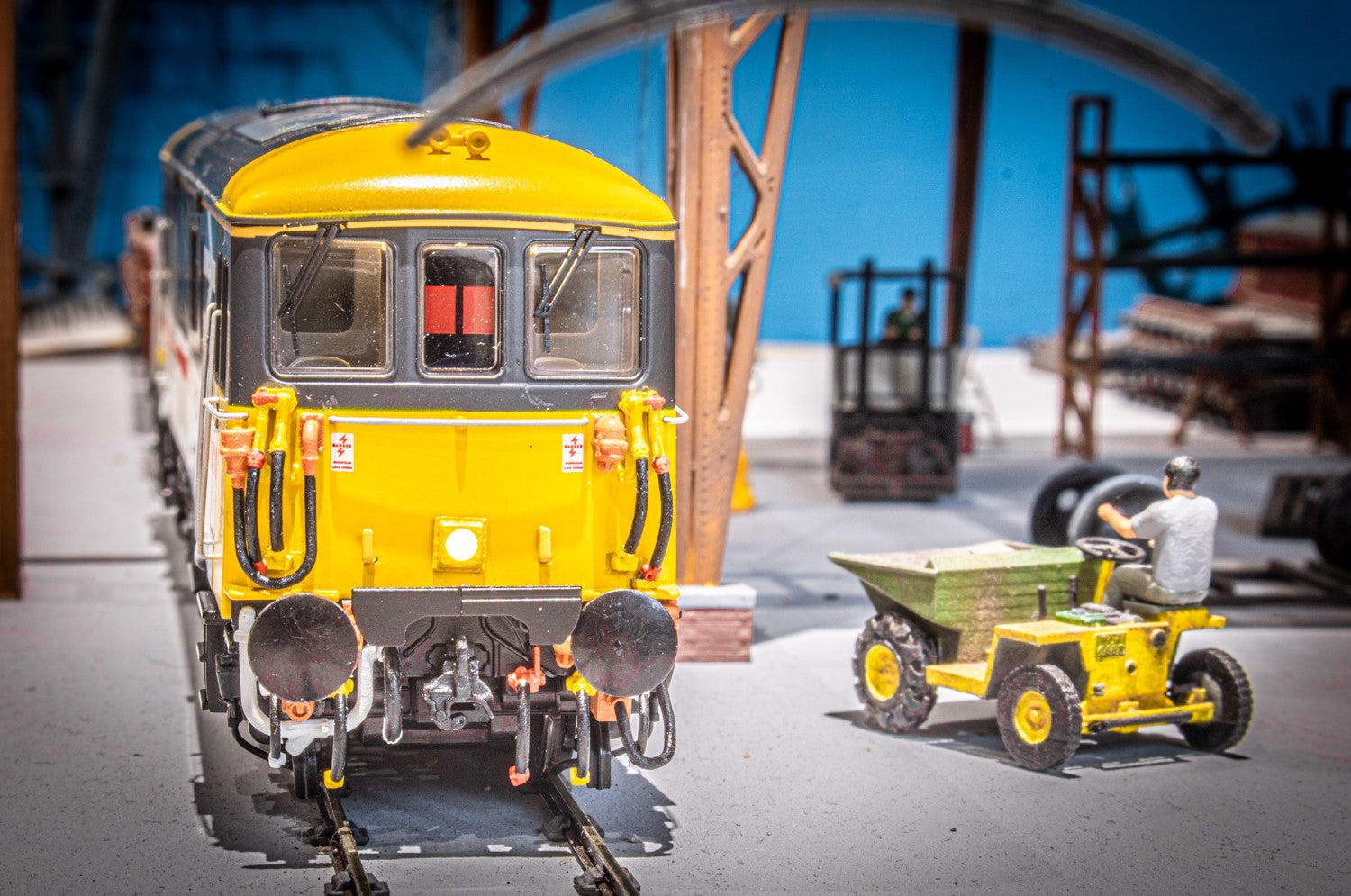

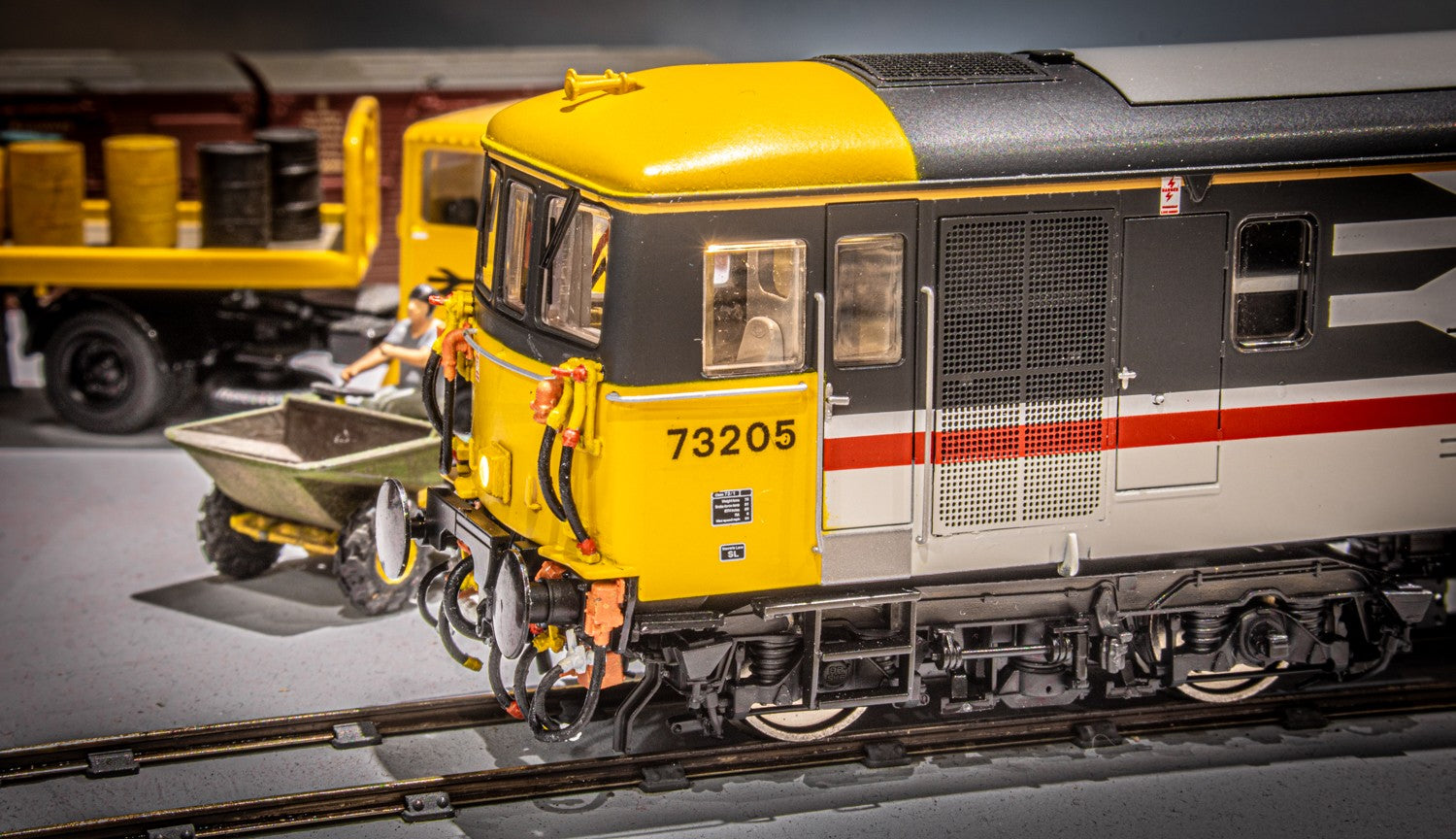

This item is supplied UNPAINTED, the attached pictures can help with painting.

Notes:-

• Please refer to our Pipes & Cables Guide Document that is available to download from our main website.
• There may have been variations between members of the Class 73 fleet in pipe configurations, colours, fitting and placement; therefore it is recommended to refer to photographs of the real thing when fitting these parts.
• All pipes have a peg that can be fitted into a drilled hole in the buffer beam, alternatively the peg can be cut-off and the pipe attached with a small amount of adhesive.
• These parts are delicate and may not be suitable for use with couplings fitted, especially on tighter radius curves.

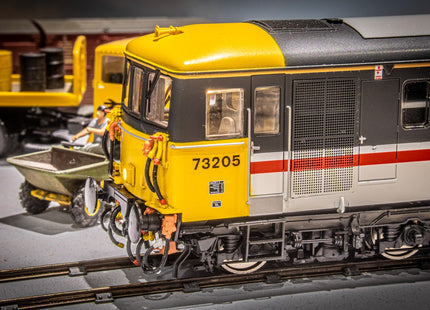

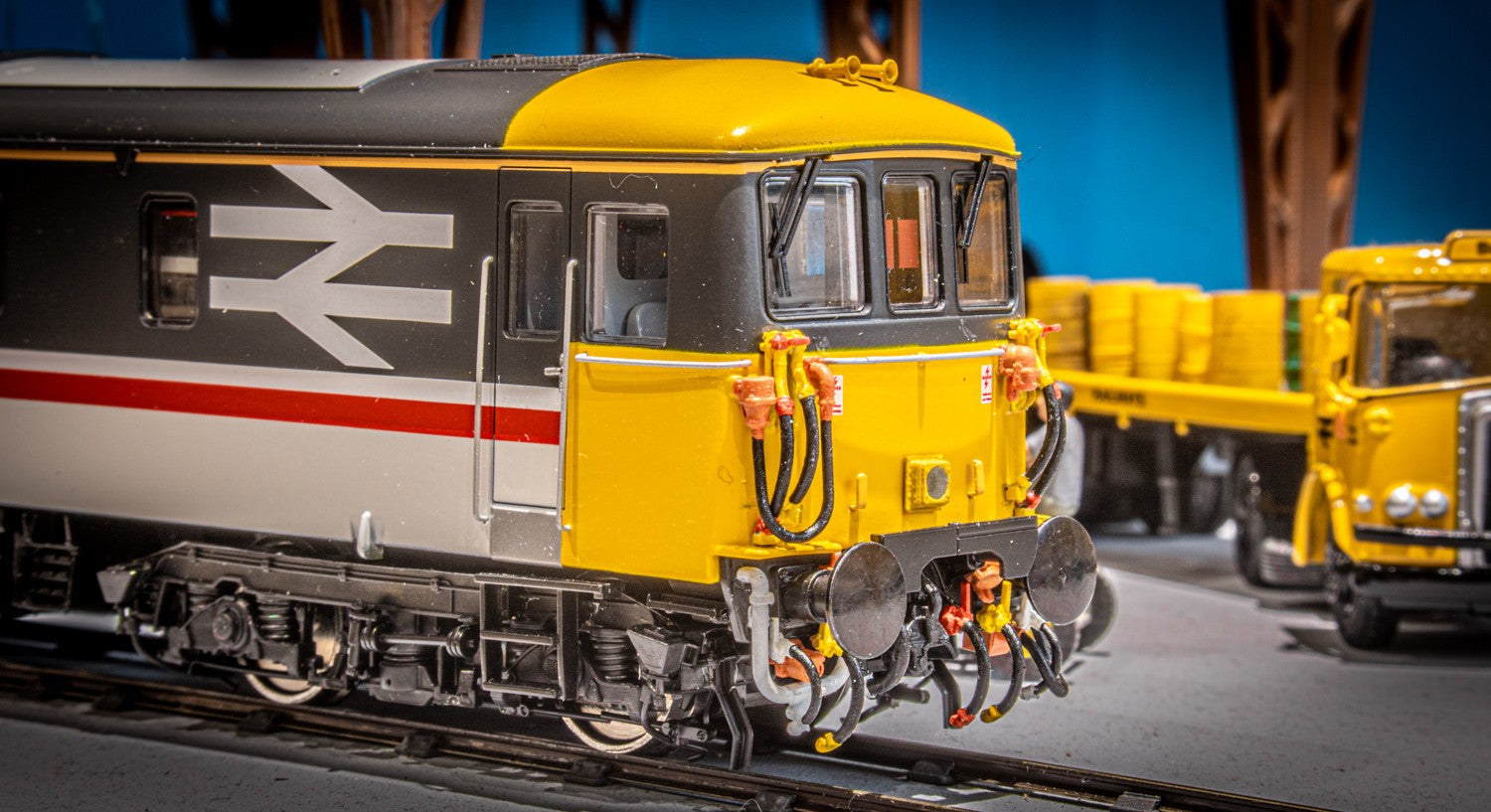

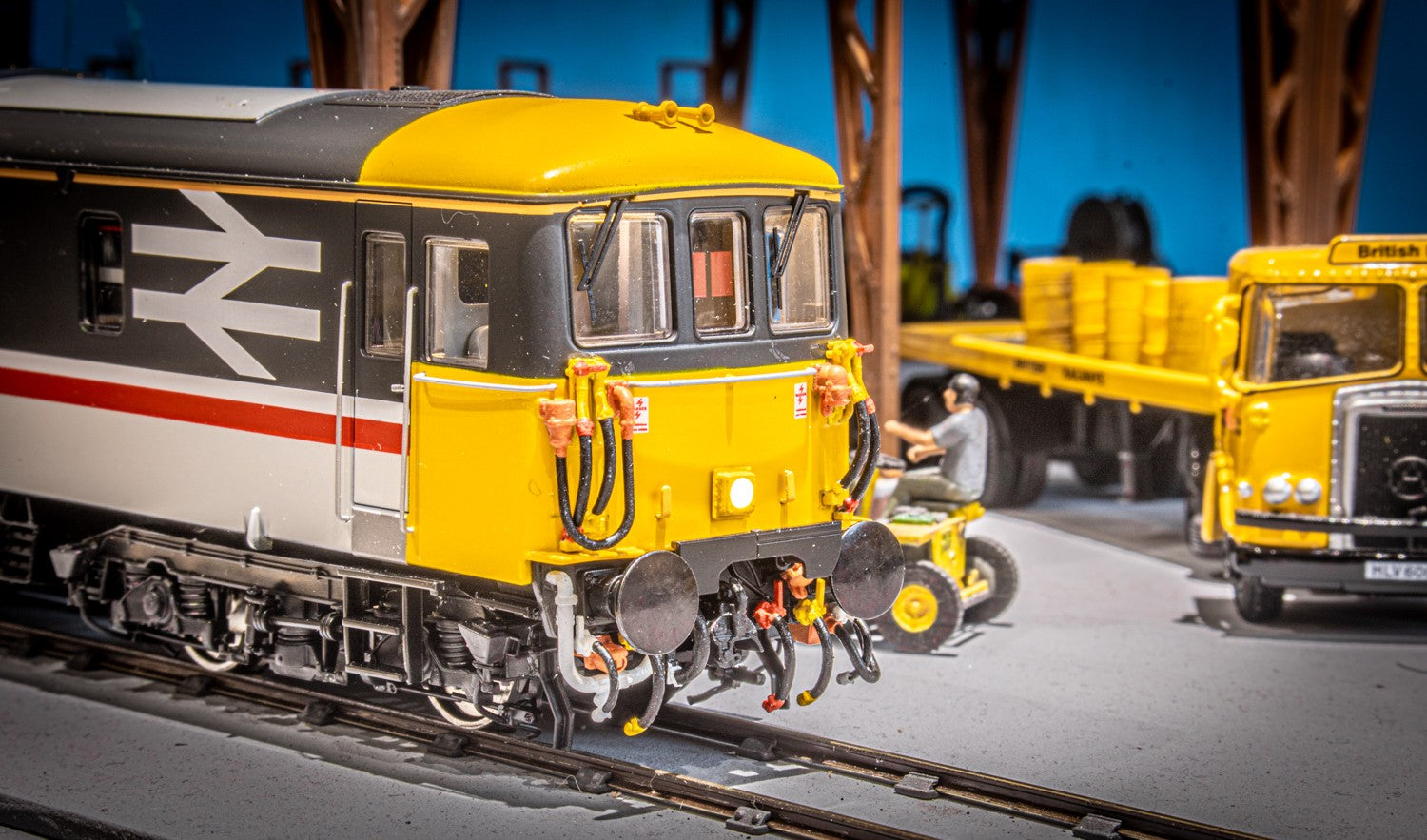

• The pipes are supplied unpainted, please refer to pictures for typical colours.
• Top-Tip - use a light coat of white primer first, and paint the pipes before removing them from the sprue.

(SET Number 25 for Class 73 Electro-Diesel)

Specifications

• Manufacturer: West Hill Wagon Works
