Description

Detailed Brake Pipes, Control Air Pipes, Multiple Working Connectors /Cables and ETH Cables for both ends of one Class 50 locomotive.

Add some extra detail to your locomotives or replace missing accessory buffer beam details (please read the full Product Description).

OO Gauge (supplied unpainted)

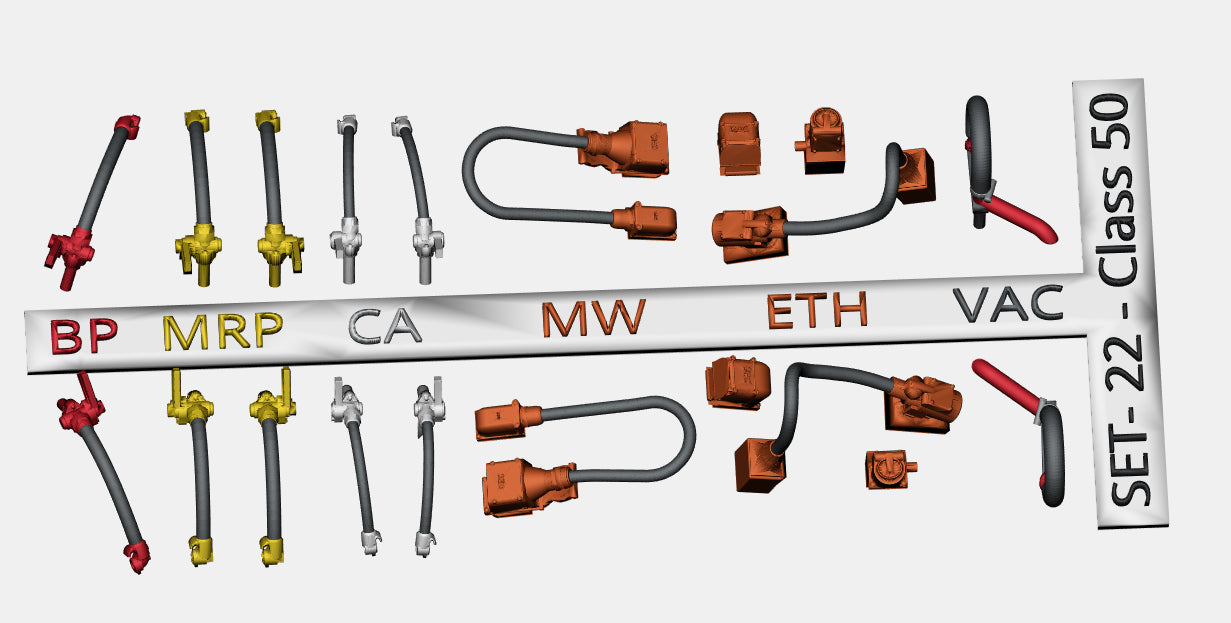

This set of brake, steam heat pipes and ETH cables is enough for both ends of one Class 50 Locomotive, the UNPAINTED pack includes:-

2 - Air Brake Pipes (BP)
4 - Main Reservoir Air Pipes (MRP)
4 - Control Air Pipes (CA)
2 - Multiple Working Connector/Cables (MW)
2 - Multiple Working Receptacles (MW)
2 - ETH (Electric Train Heating) Jumper Cables (ETH)
2 - ETH (Electric Train Heating) Receptacles (ETH)
2 - Vacuum Hoses/Pipes with hose dummy bracket (VAC)

Notes:-

• There may have been variations between members of the Class 50 fleet in pipe configurations, fitting and placement; therefore it is recommended to refer to photographs of the real thing when fitting these parts.
• All pipes have a 0.7mm peg that can be fitted into a drilled hole in the buffer beam, alternatively the peg can be cut-off and the pipe attached with a small amount of adhesive.
• These parts are delicate and may not be suitable for use with couplings fitted, especially on tighter radius curves.

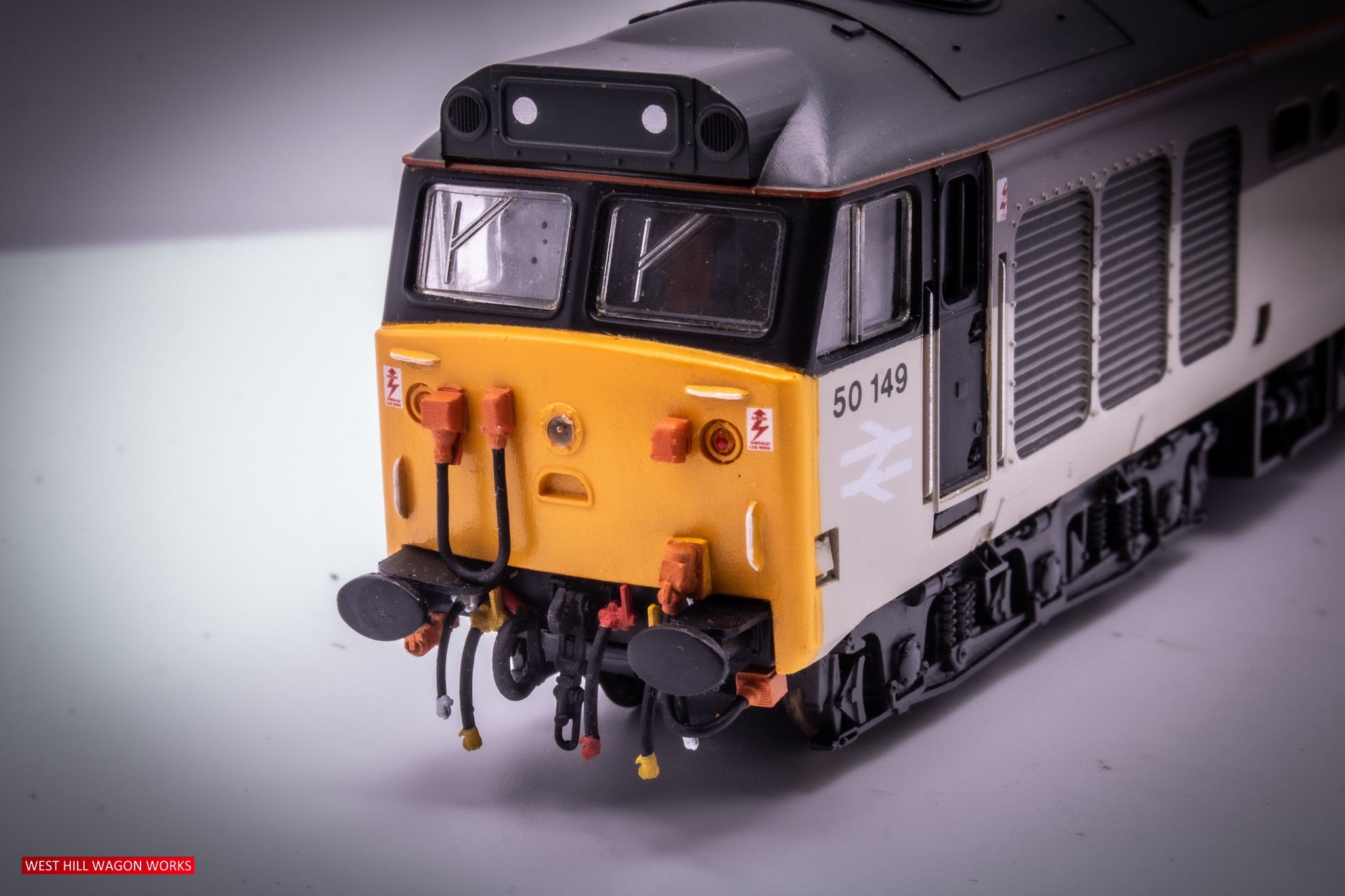

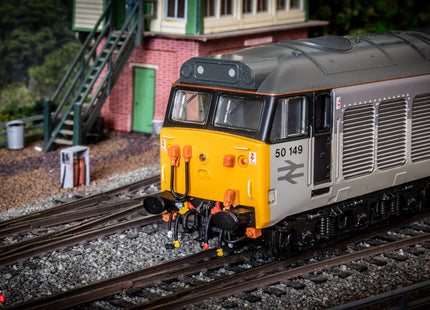

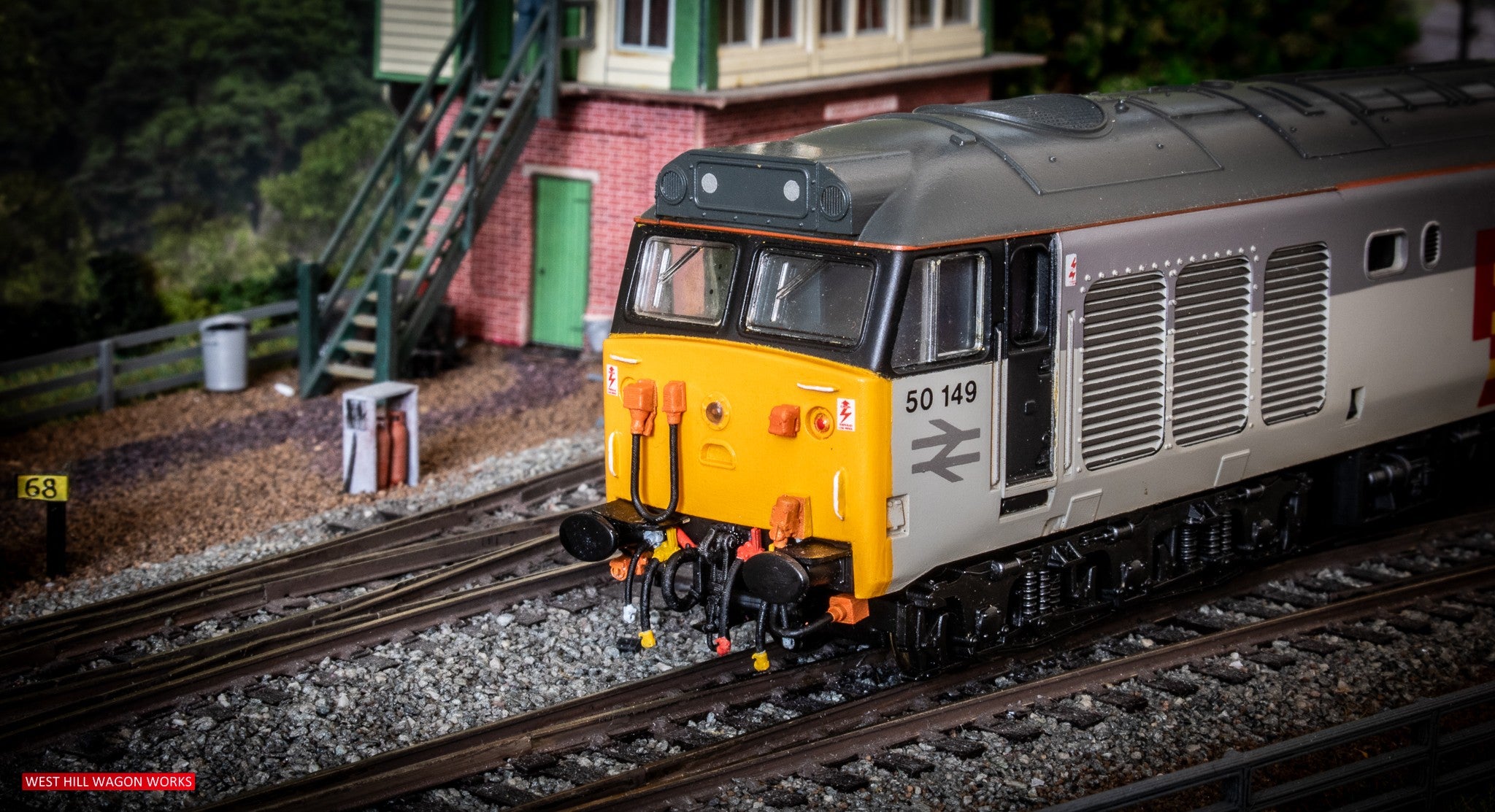

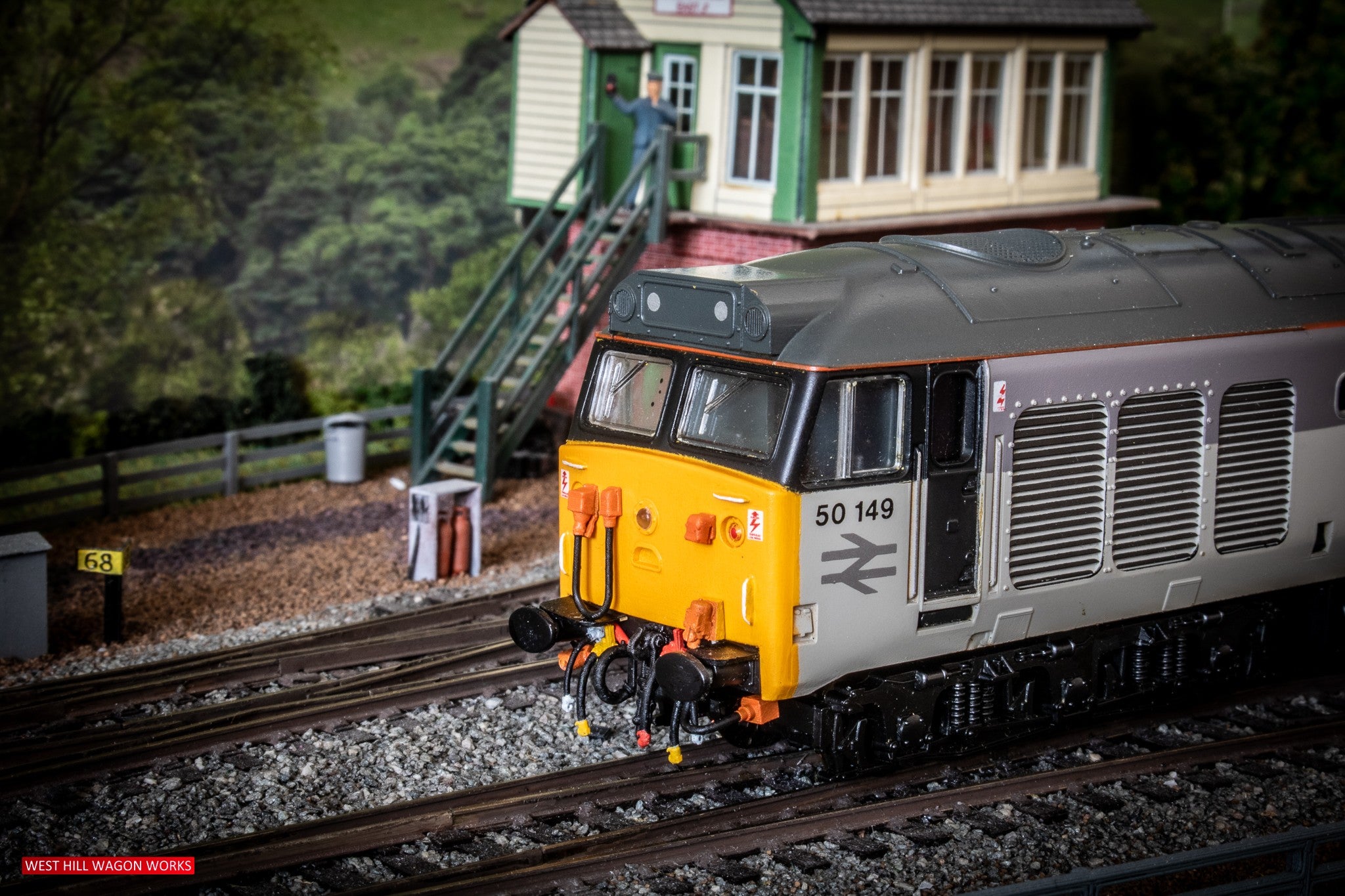

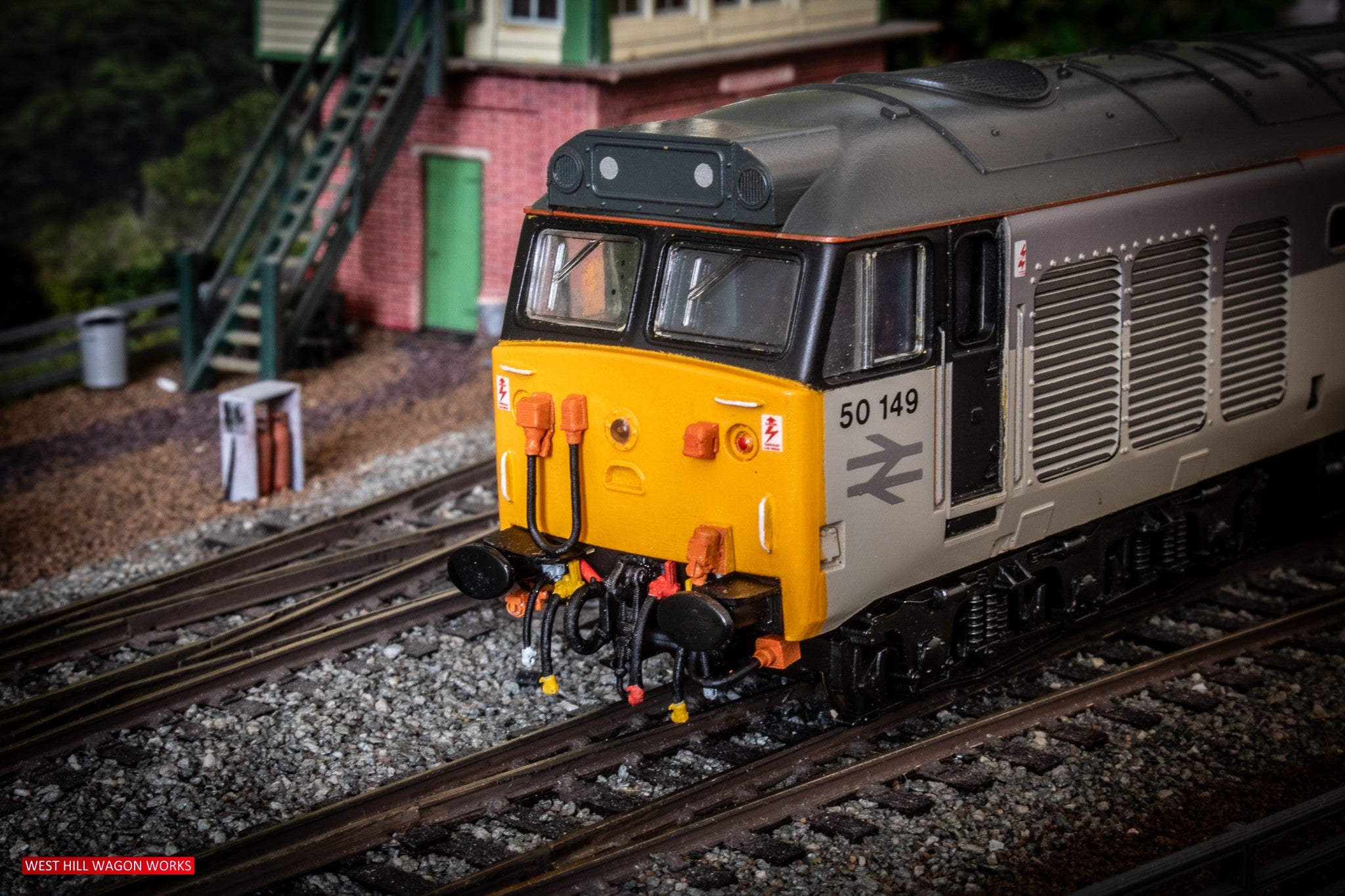

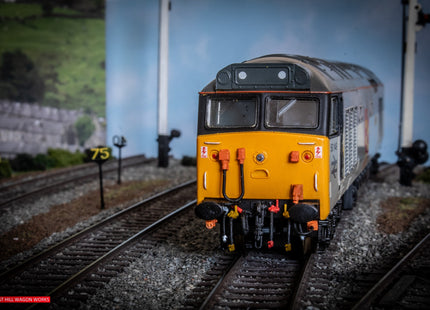

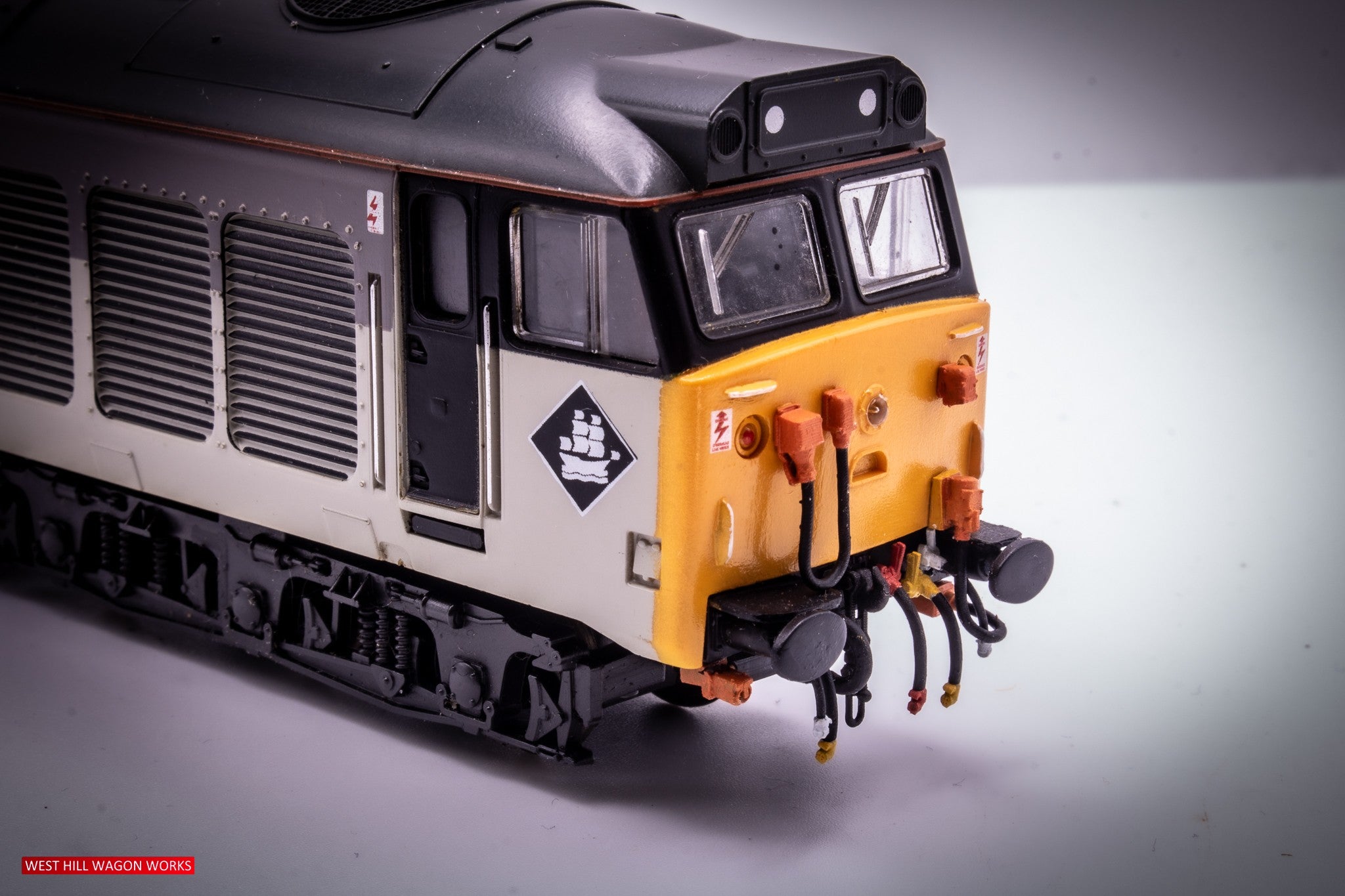

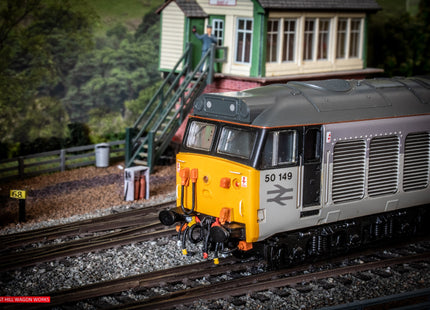

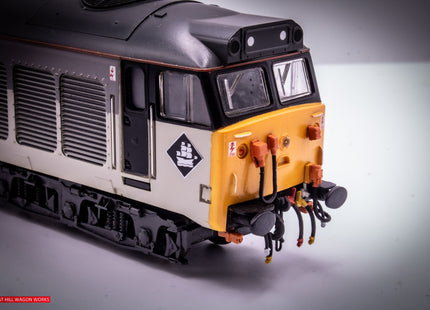

• The pipes are supplied unpainted, please refer to pictures for typical colours.
• Top-Tip - use a light coat of white primer first, and paint the pipes before removing them from the sprue.
• A downloadable fitting guide is provided in the attachment tab above.

(SET Number 22 for Class 50)

Specifications

• Manufacturer: West Hill Wagon Works
