Description

Detailed Brake Pipes, Control Air Pipes, Multiple Working Connectors/Cables and ETH Cables for both ends of one Class 33 locomotive.

Includes high level pipes and cables parts for a Class 33/1.

Add some extra detail to your locomotives or replace missing accessory buffer beam details (please read the full Product Description).

OO Gauge (supplied unpainted)

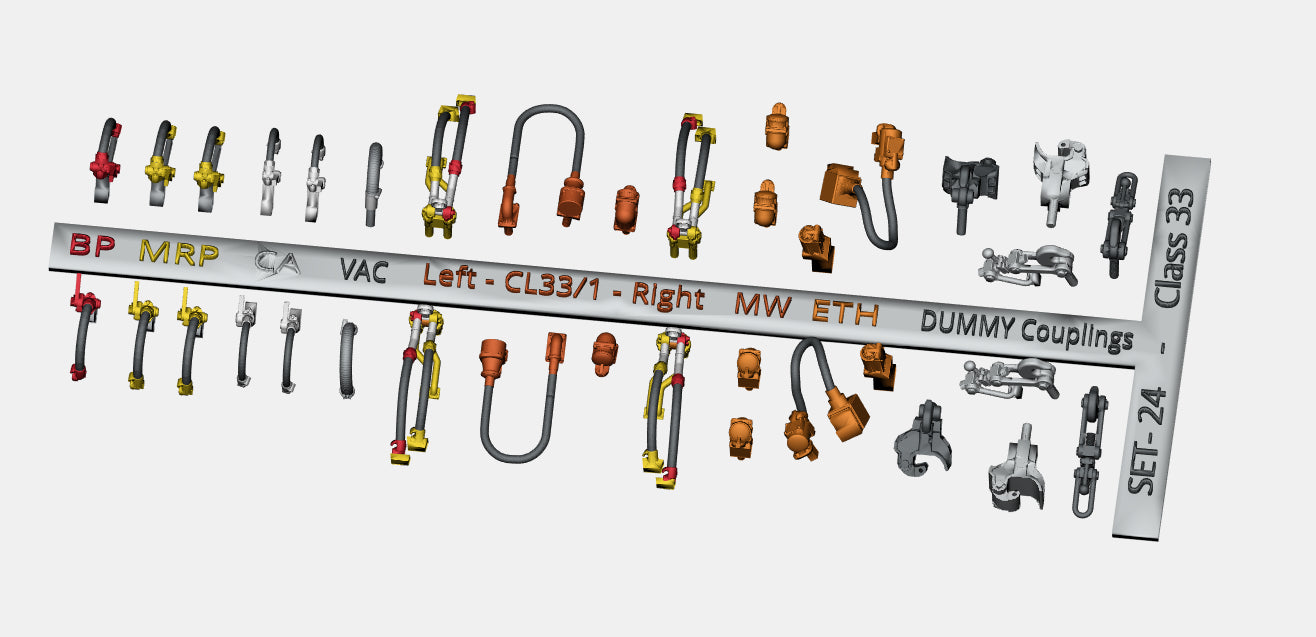

This set of brake, steam heat pipes and ETH cables is enough for both ends of one Class 33 Locomotive, the UNPAINTED pack includes:-

2 - Air Brake Pipes (BP)
4 - Main Reservoir Air Pipes (MRP)
4 - Control Air Pipes (CA)
4 - Multiple Working Receptacles for Buffer Beam (MW)
2 - ETH (Electric Train Heating) Jumper Cables (ETH)
2 - ETH (Electric Train Heating) Receptacles (ETH)
2 - Vacuum Hoses/Pipes with hose dummy bracket (VAC)

4 - High Level Brake Pipes Left / Right [for Class 33/1] - (H/L)
2 - High Level Multiple Working Connector Cables [for Class 33/1] - (H/L MW)
2 - High Level Multiple Working Receptacles [for Class 33/1] - (H/L MW)

Also included in this set are four types of Dummy Couplings:-
2 - Dummy Screw Couplings
2 - Dummy Screw Couplings in the Stored Position
2 - Dummy Buckeye Couplers [for Class 33/1] - Dropped
2 - Dummy Buckeye Couplers [for Class 33/1] - Raised

Notes:-

• There may have been variations between members of the Class 33 fleet in pipe configurations, fitting and placement; therefore it is recommended to refer to photographs of the real thing when fitting these parts.
• All pipes will need to be attached with a small amount of adhesive.
• These parts are delicate and may not be suitable for use with couplings fitted, especially on tighter radius curves.

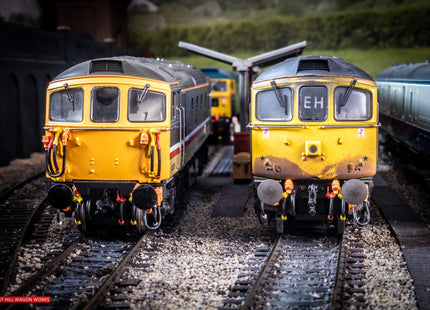

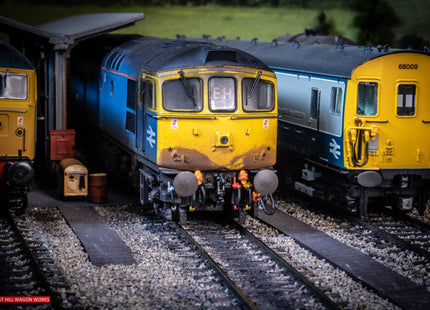

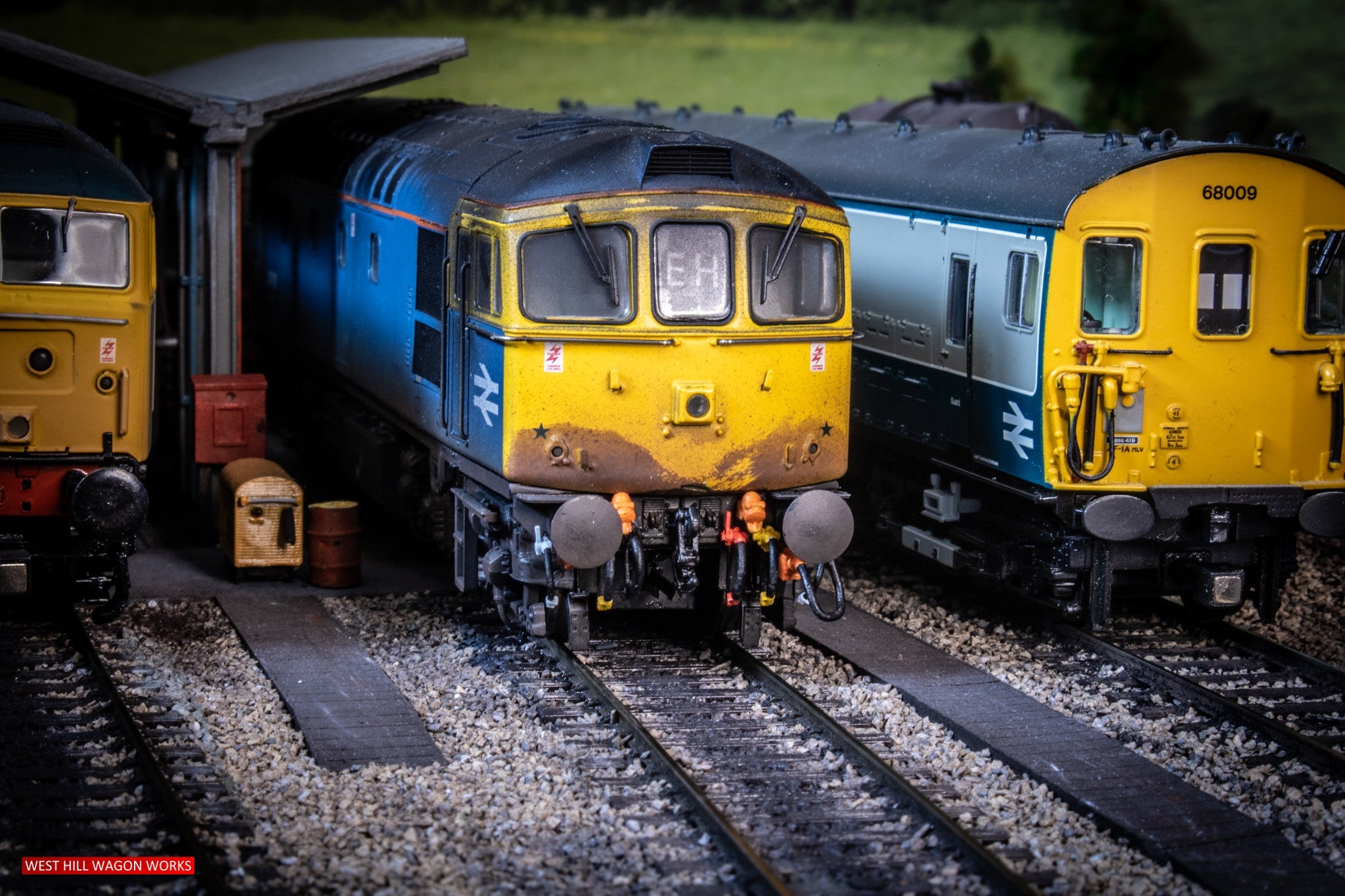

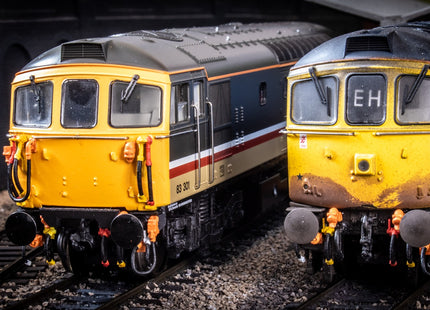

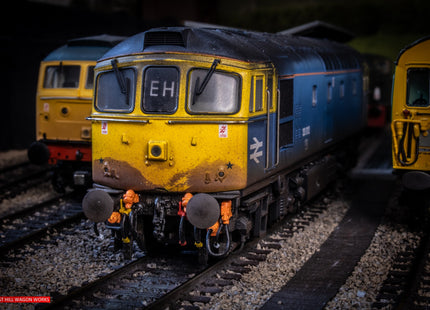

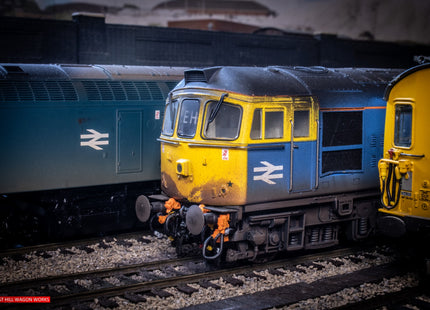

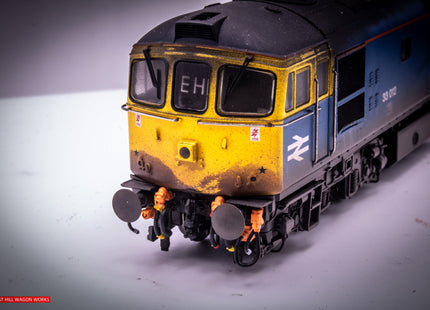

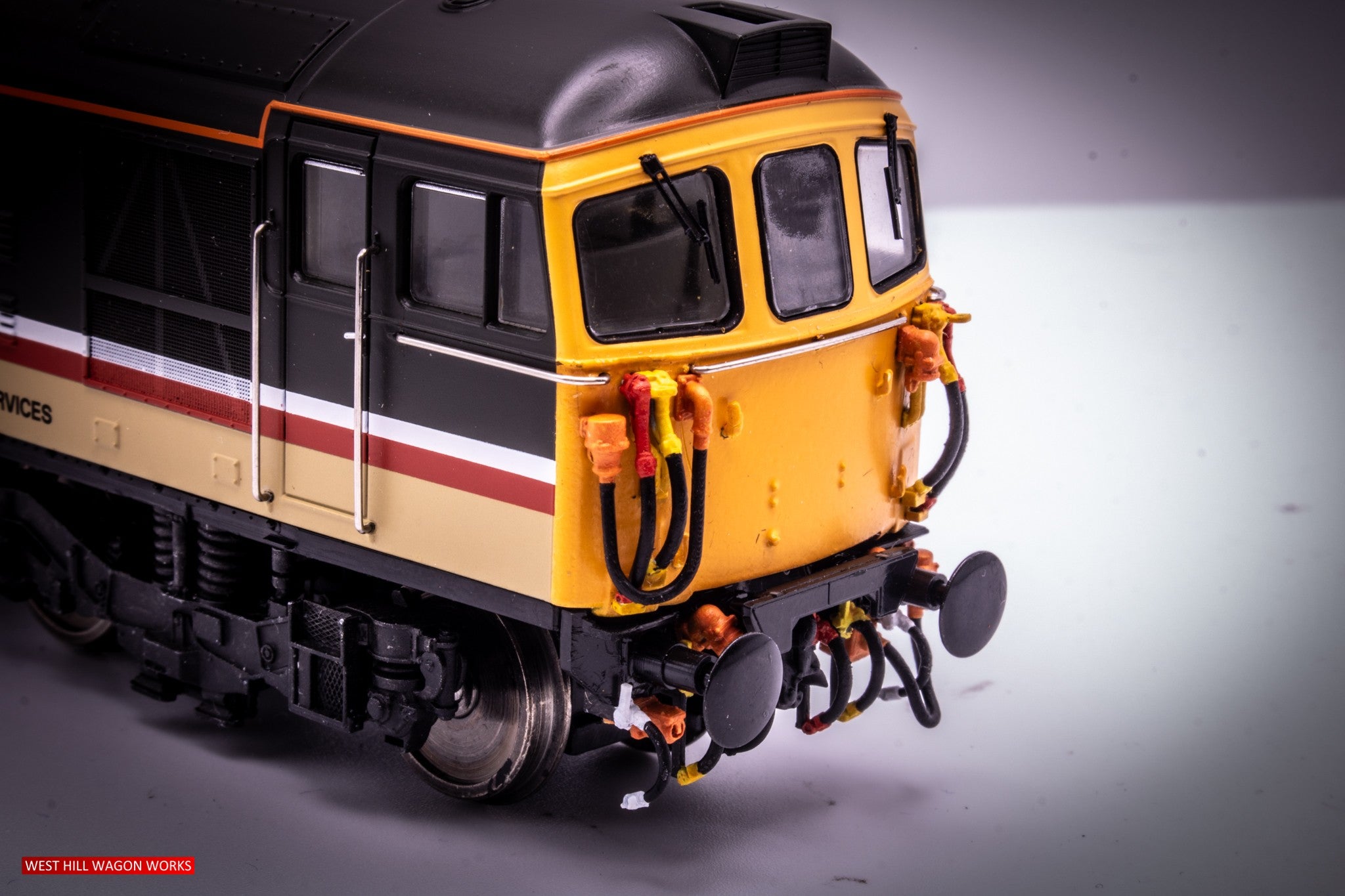

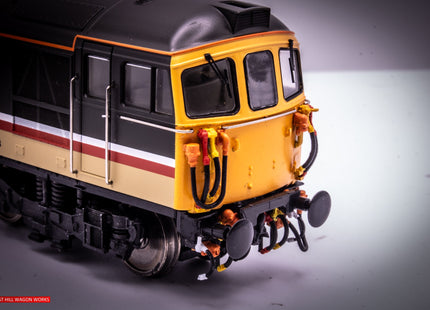

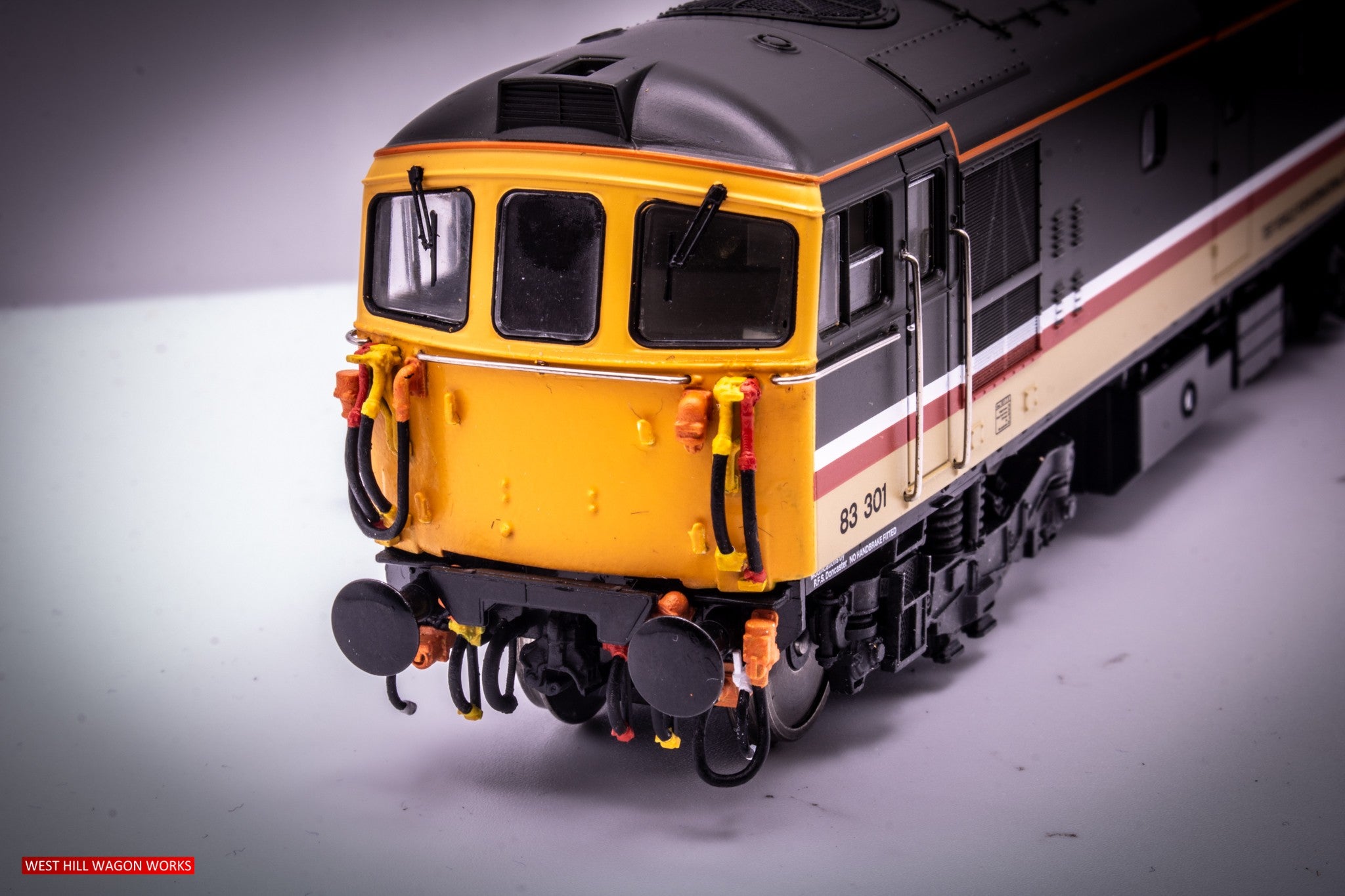

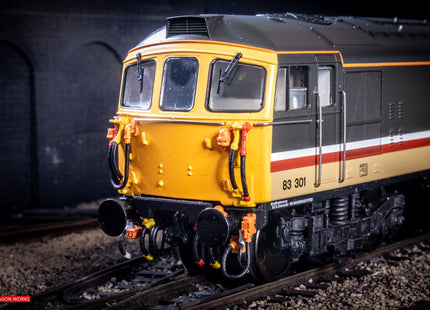

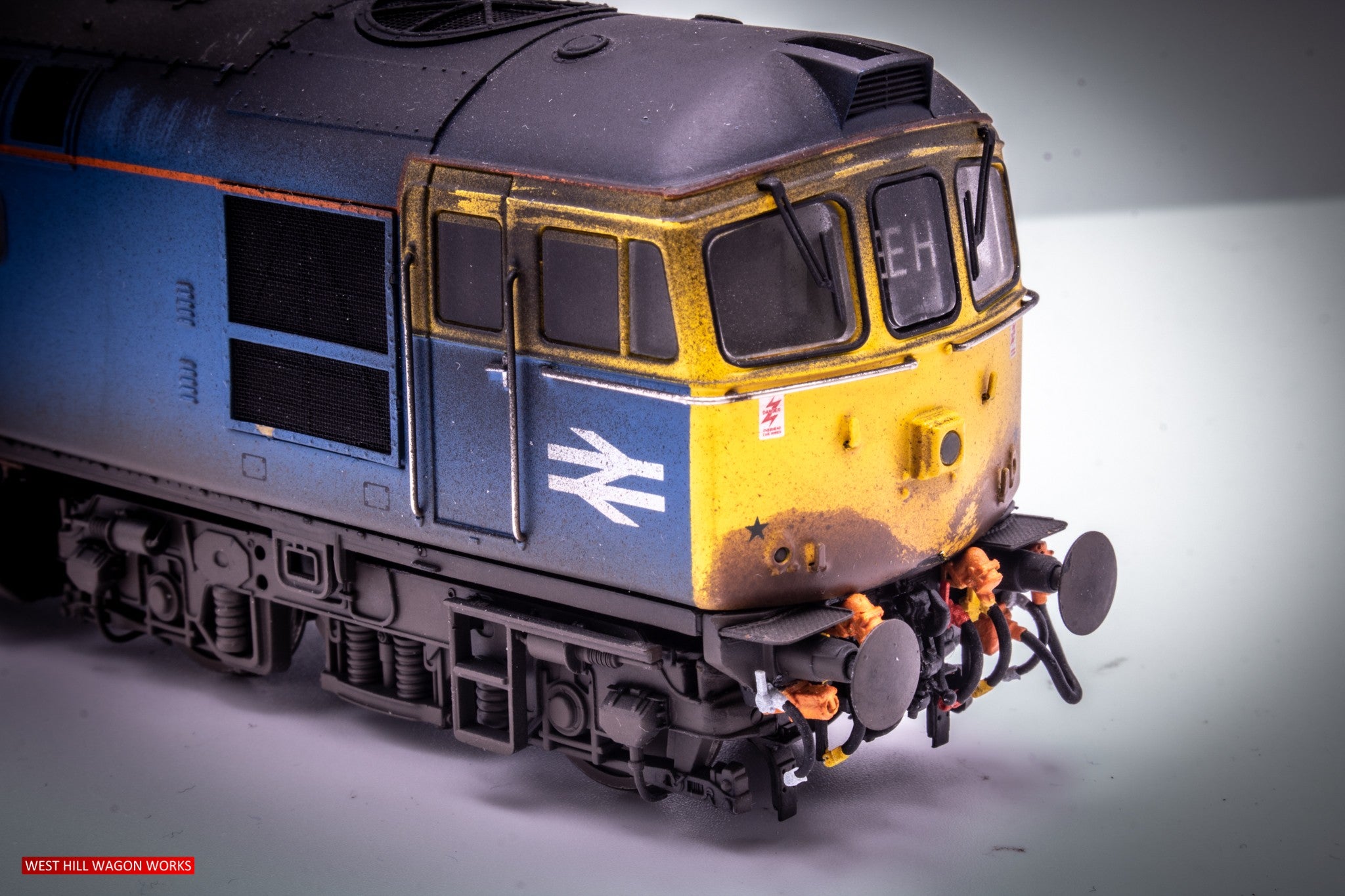

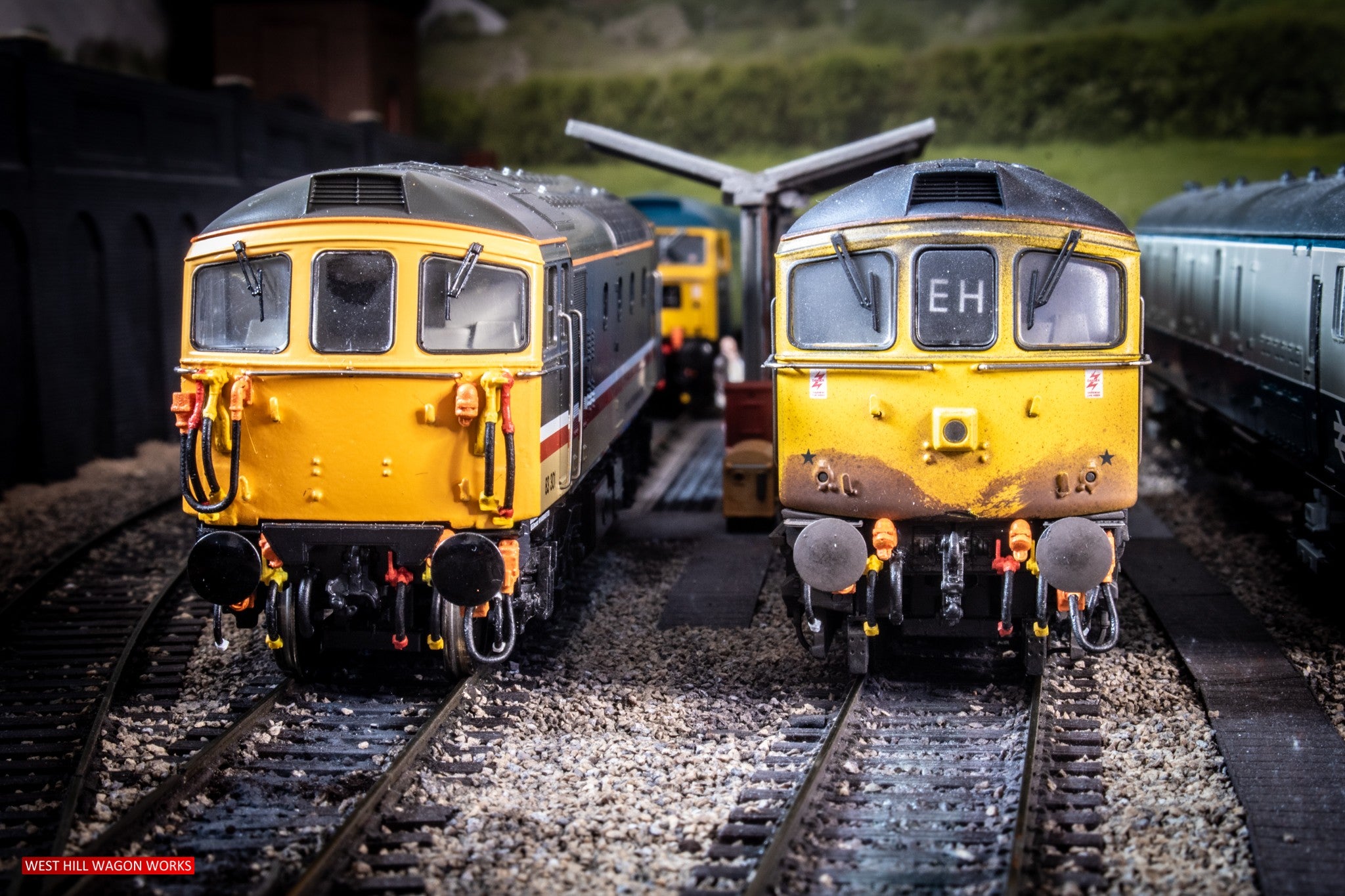

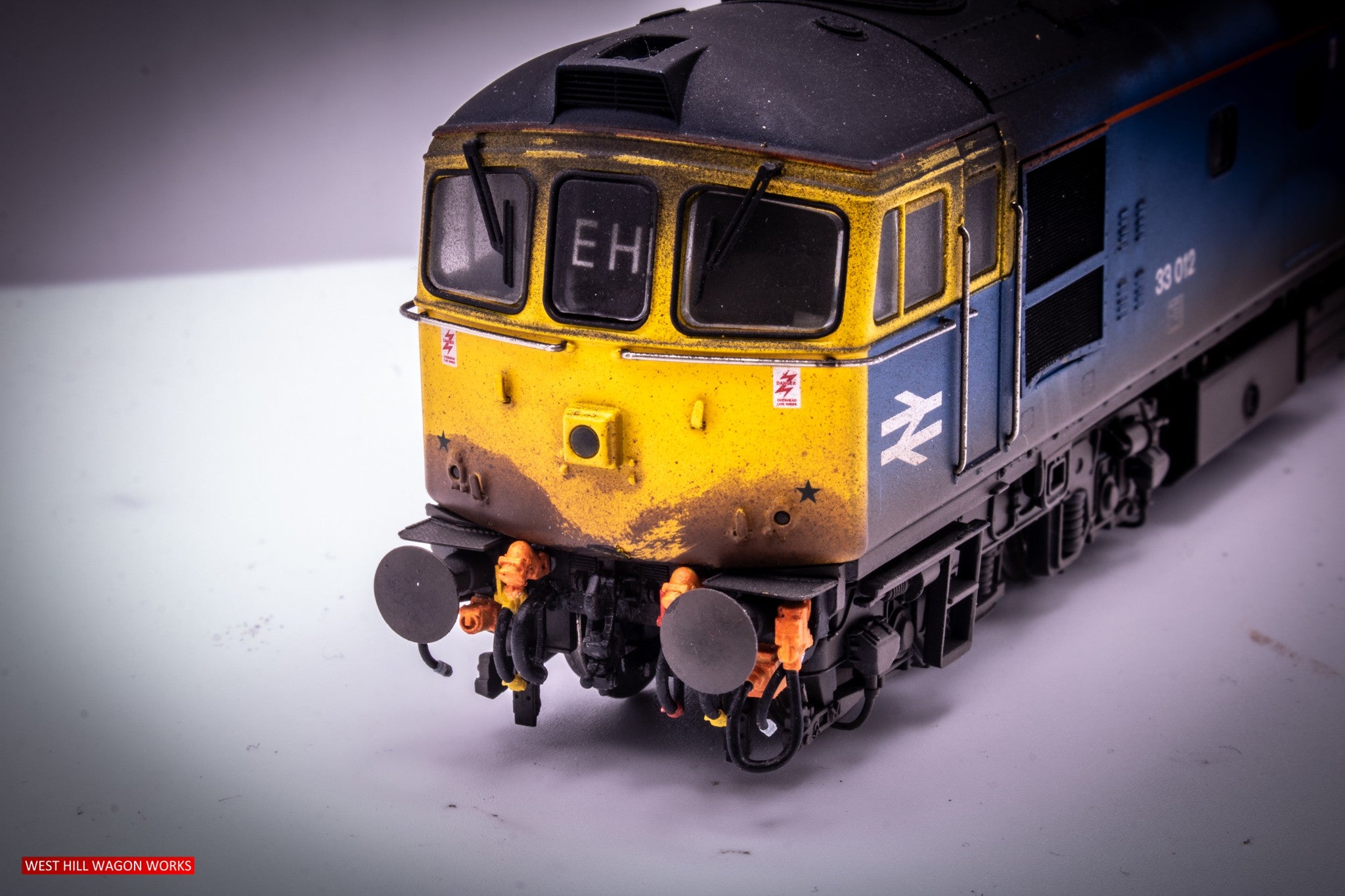

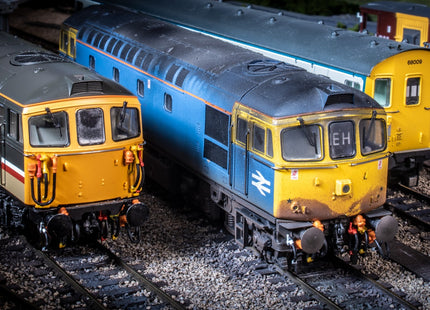

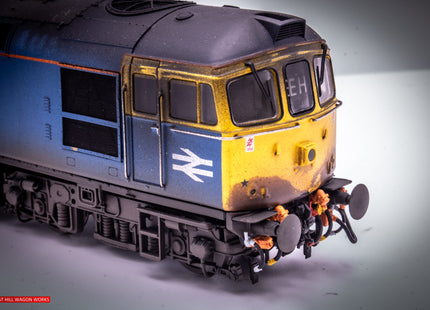

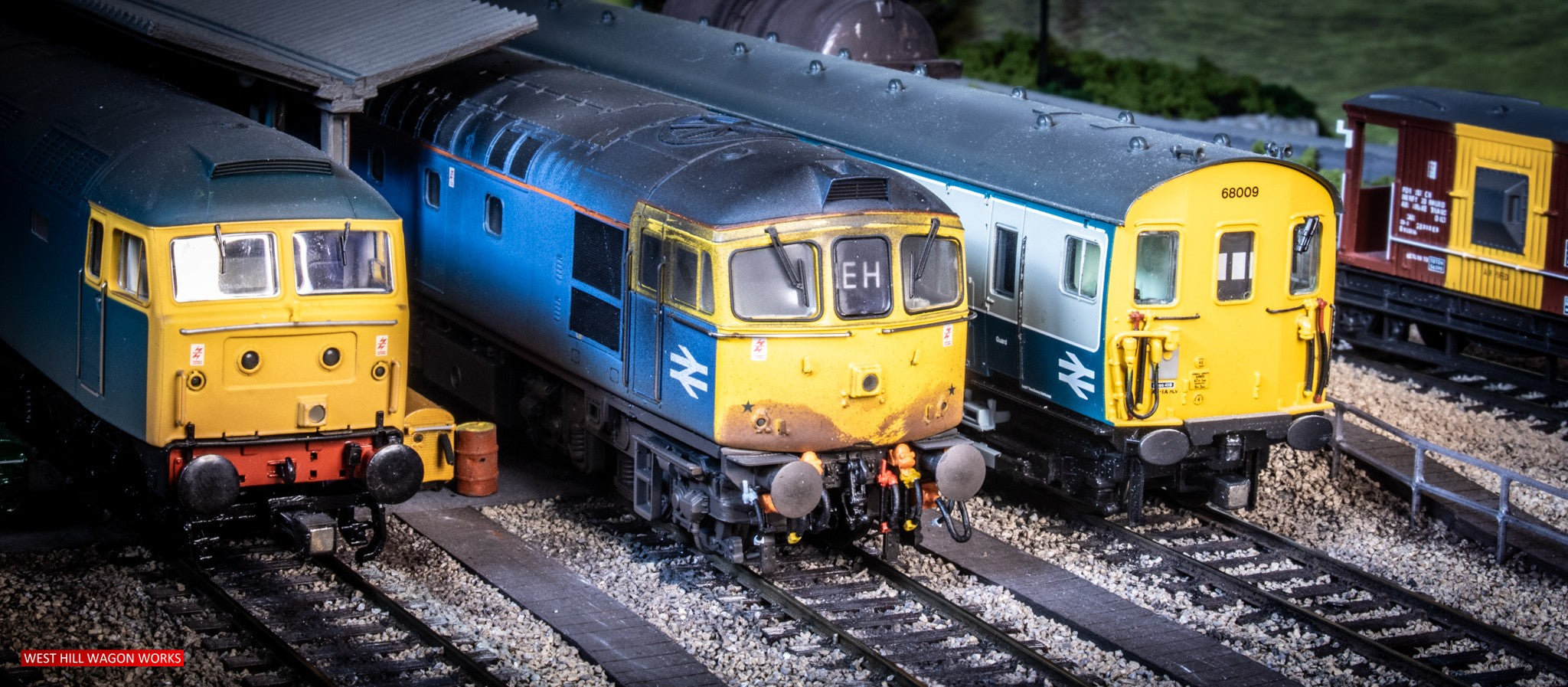

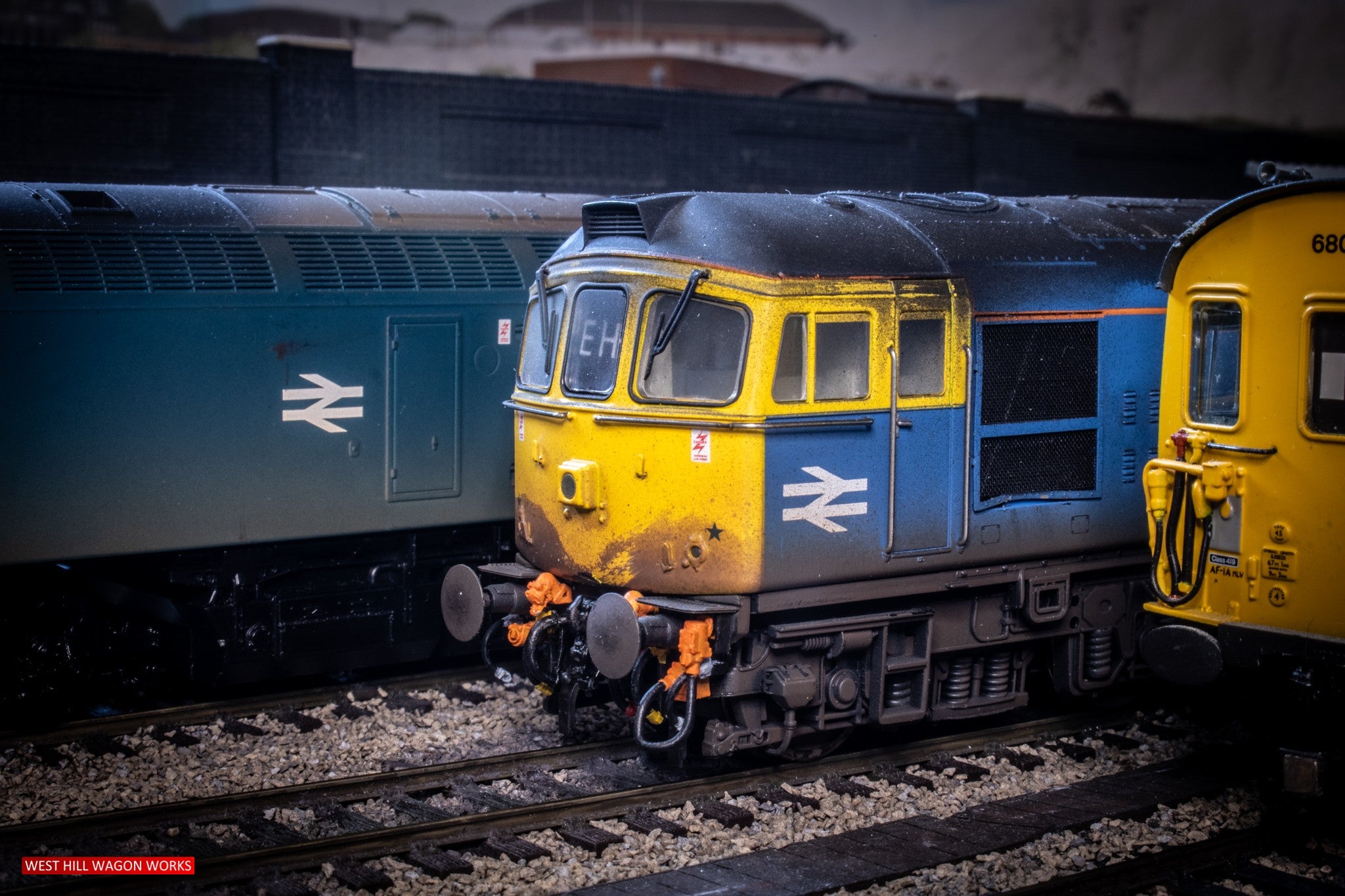

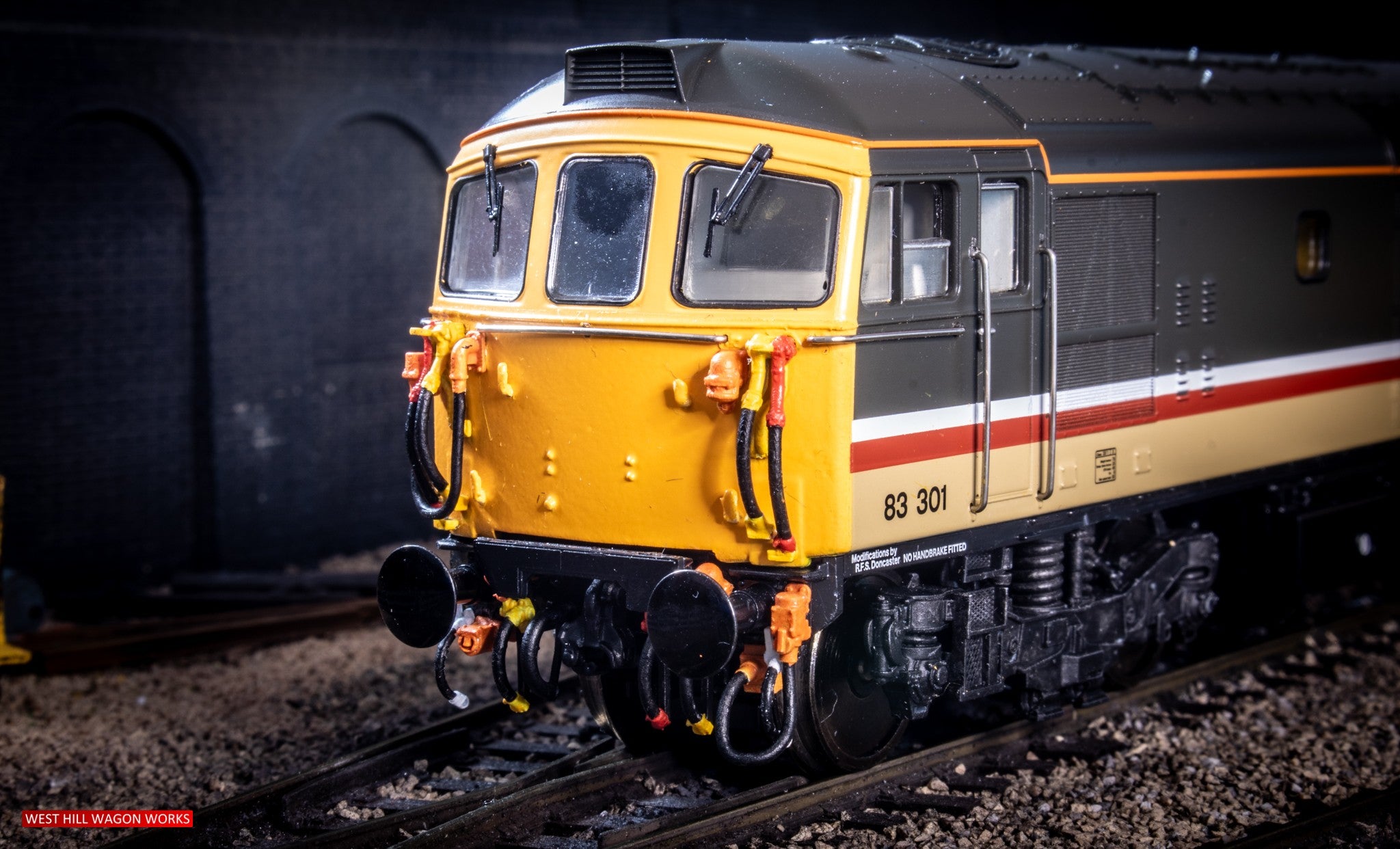

• The pipes are supplied unpainted, please refer to pictures for typical colours.
• Top-Tip - use a light coat of white primer first, and paint the pipes before removing them from the sprue.
• A downloadable fitting guide is provided in the attachment tab above.

(SET Number 24 for Class 33)

Specifications

• Manufacturer: West Hill Wagon Works
